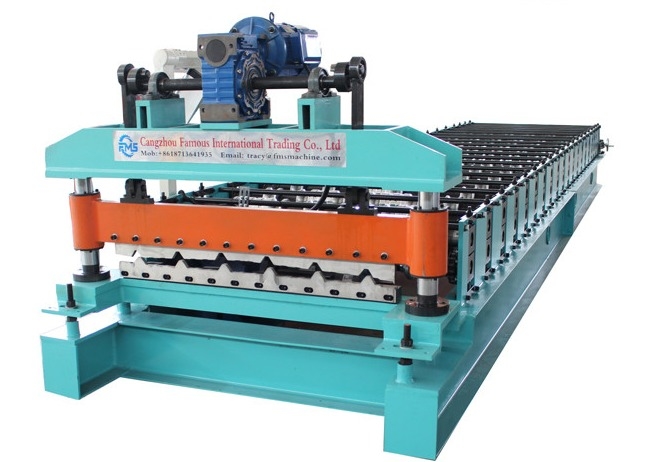

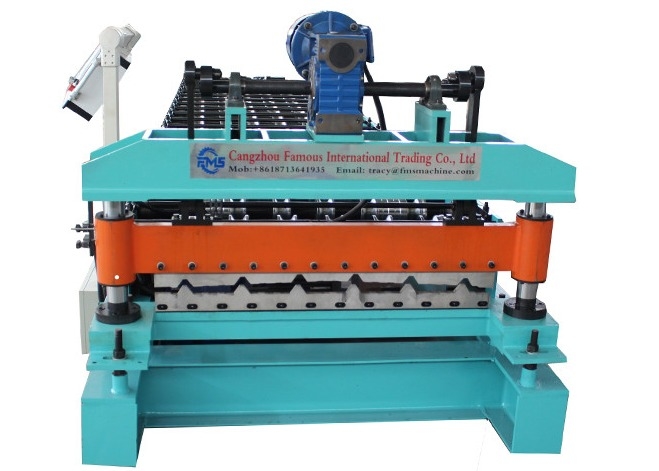

IBR Metal Roll Forming Machine Tile Roofing Sheet Making Machines
The Roof tiles made by oursingle layer roofing roll forming machine for roof panel have beautiful appearance and bright color.
They are widely used in gardens, factories, resorts, hotels, exhibition halls, vacationlands,
ancient architectures and modern villas.
Specification
|
Name
|
Details
|
Remark
|
|
Feed frame roller
|
Stainless Steel
|
|
|
Machine base structure
|
350H steel welded
|
|
|
Machine architecture
|
Middle plate
|
20mm thick
|
|
Drive mode
|
Chain drive
|
|
|
Roller station numbers
|
18 rows of rollers
|
|
|
Rollers material
|
45# steel
|
Surface hard chromium plating
|
|
Shaft diameters
|
Φ 90mm +80mmSolid shafts
|
|
|
Shaft material
|
45# steel
|
|
|
Motor power
|
5.5kw
|
|
|
Forming speed
|
0-12m per minute
|
|
|
Power
|
380v 50hz 3Phase
|
Or as customer request
|
Guarantee
1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
Payment terms
40% in advance as down payment
60% is paid before the shipment is processed
Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
