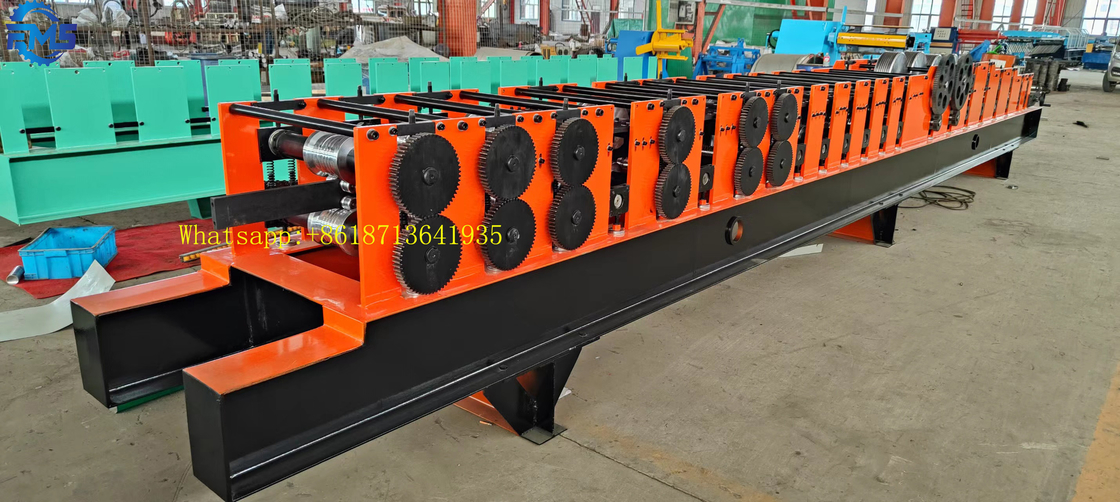

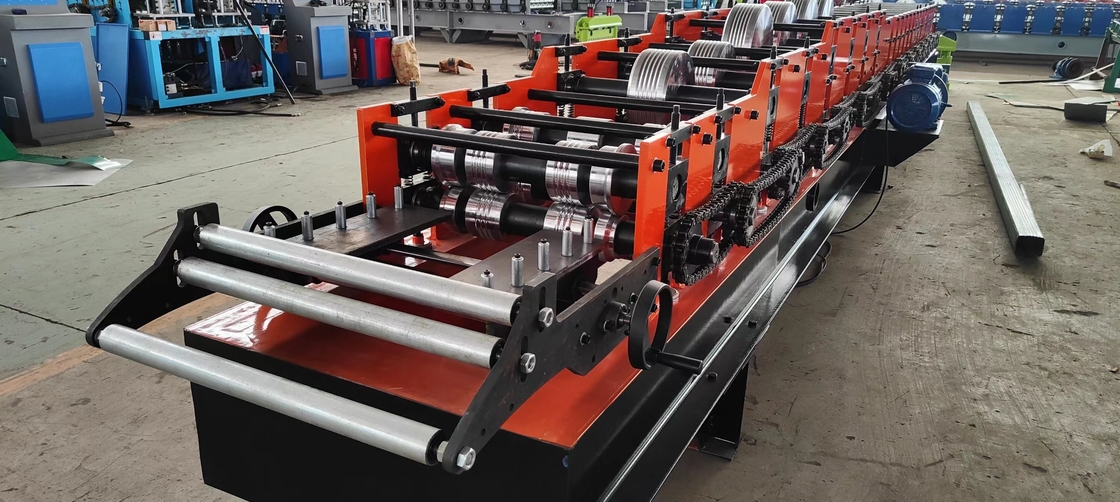

Tube And Pipe Downpipe Roll Forming Machine Making Production Line
The roll formed product is mor durable than the tranditional ppc pipe, and not easy to aging.
It will make the project more integrate, and help enhancing the image of all project.
Drainpipe bending machine used for bend the roll formed pipe, to connect the drainpipe and the elbowed pipe.
Specification
|
Suitable to process
|
Color steel plate, galvanized sheet,aluminum coils and etc.
|
|
Roller station
|
16 rows
|
|
Feeding width of material
|
330mm
|
|
Thickness of feeding material
|
1.2-2.5mm
|
|
Productivity
|
6-12m/min
|
|
Rollers' material
|
45# steel,Hot treatment hardness HRC55º-57º
|
|
Diameter of shaft
|
66mm
|
|
Weight
|
About 4.0 T
|
|
Size
|
8.0*1.35*1.4m
|
|
Voltage
|
380V 50Hz 3Phase
|
|
Main motor power
|
5.5kw
|
|
Hydraulic cutting power
|
4 kw
|
|
Mould cutting material
|
Cr12 steel
treatment hardness HRC60º-62º |
Application
It will make the project more integrate, and help enhancing the image of all project.
Drainpipe bending machine used for bend the roll formed pipe, to connect the drainpipe and the elbowed pipe.
Guarantee
1.Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
Payment terms and delivery
40% in advance as down payment
60% is paid before the shipment is processed
The Delivery Time: 30 days after the down payment is received.
