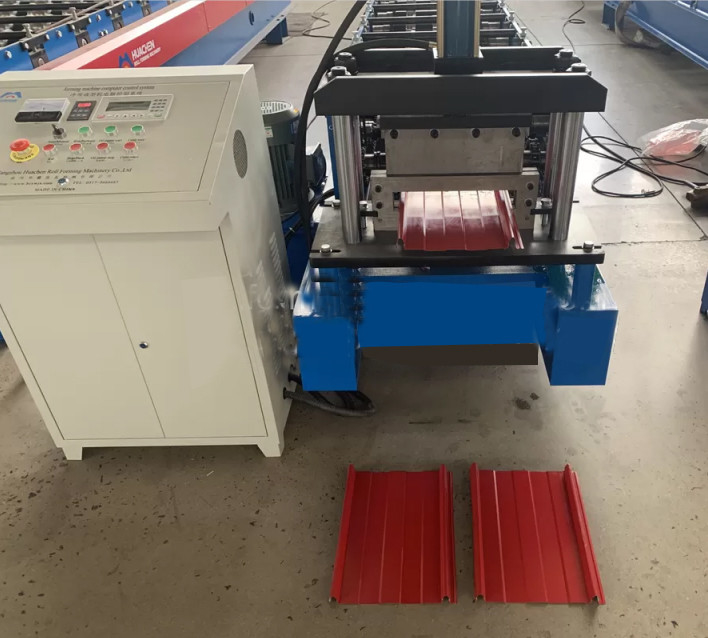

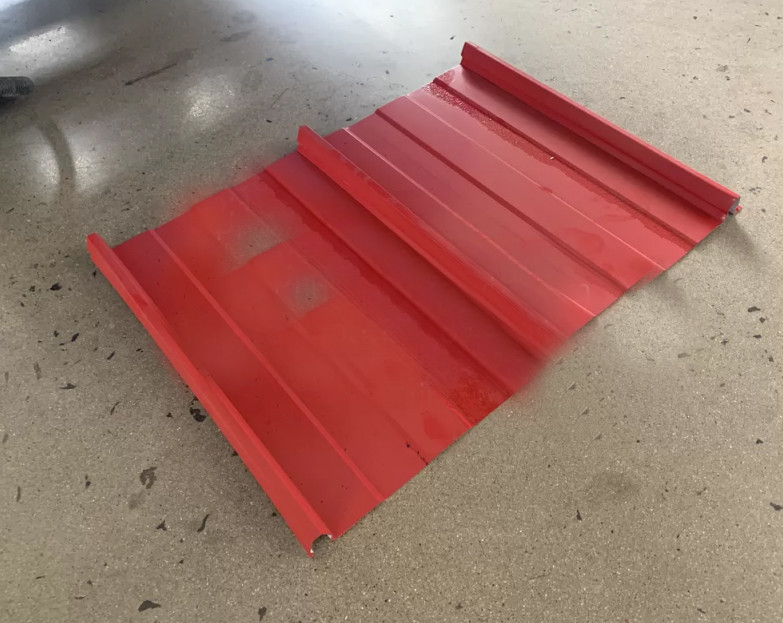

Roofing colored steel tile, also known as: colored pressing tile, is the use of color coating steel plate, cold bending through the roll into a variety of wave plate.
This type of sheet can be widely used in plant, house, storage and simple steel roof and wall. It has advantage of pretty appearance, durable using and so on.
Equipment Detailed Parameters:
| No. | Main parameter of Roof Sheet Roll Forming Machine | |
| 1 | Suitable to process | Color steel plate |
| 2 | Width of the plate | 500mm |
| 3 | Rollers | 16 rows |
| 4 | Dimensions | 7800*1350*1510mm |
| 5 | Power | 3+3kw |
| 6 | Rolling material | 45# steel(plated chrome on surface) |
| 7 | Thickness of the plate | 0.3-0.6mm |
| 8 | Productivity | 8-10m/min |
| 9 | Diameter of the roller | Φ66mm |
| 10 | Voltage | 380V 50Hz 3phases |
| 11 | Material of the cutting plate | Cr12 |
| 12 | Hydraulic | 40# |
| 13 | Processing precision | Within 1.00mm |
| 14 | Control system | PLC control |
Guarantee
1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
Payment terms
40% in advance as down payment
60% is paid before the shipment is processed
Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
