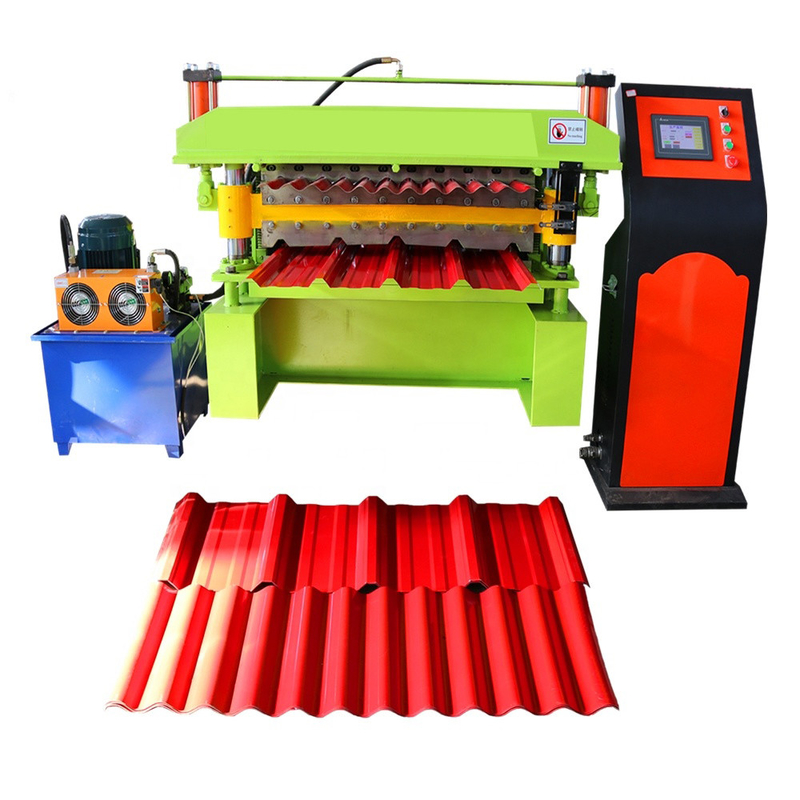

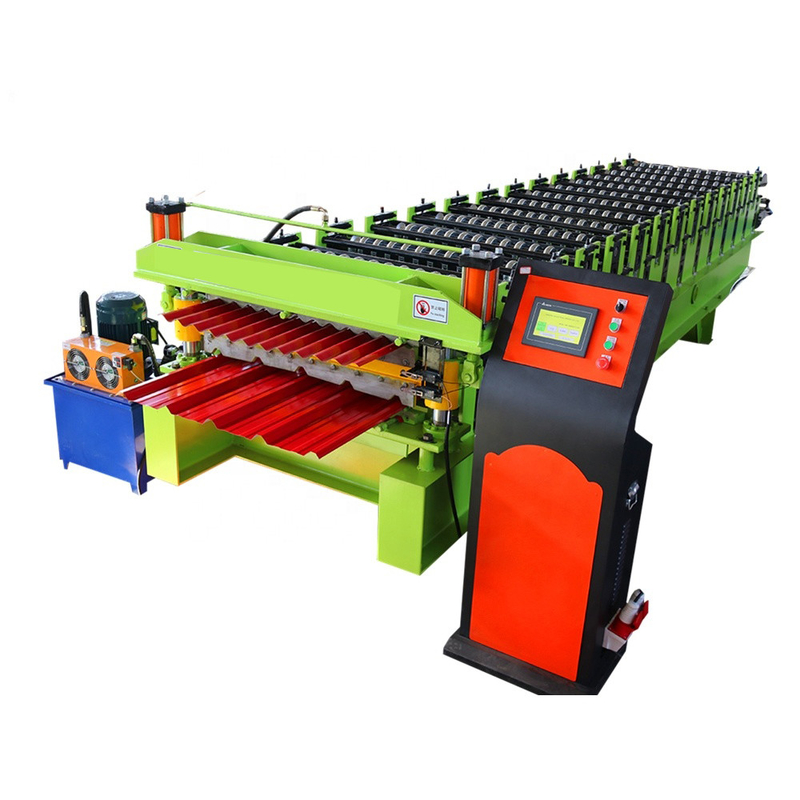

Metal Roof Trapezoidal And Corrugated Roll Forming Machine Double Layer
Compared to a single layer roof panel roll forming machine, a double layer roll forming machine is desgined to produce two different kinds of metal sheets which can be one trapezoidal roofing and one roof/wall cladding sheet
Industrial manufacturing, villages, warehouses, supermarkets, hotels, exhibition halls, home buildings, etc. It has a three-dimensional and smooth shape, colorful and colorful colors, and can also be customized according to customer requirements for different corrugated board patterns, colors, shapes and corrugated boards of different thicknesses.Building metallic materials have excellent performance of decoration, corrosion resistance etc,easy to operate, energy saving,flexible manufacturing,high productivity, eco-friendly.
Equipment Detailed Parameters:
|
1
|
Suitable to process
|
Color alu-zinc steel coil
|
|
2
|
Roller
|
18Rows
|
|
3
|
Dimensions
|
9*1.55*1.8m
|
|
4
|
Motor Power
|
4Kw
|
|
5
|
Pump Station Motor
|
4Kw.Lichao Brand
|
|
6
|
Thickness of the plate
|
0.3-0.8mm
|
|
7
|
Productivity
|
10-15m/min
|
|
8
|
Material of the cutting blade
|
Cr12,Quenched treatment 58℃-60℃
|
|
9
|
Diameter of the roller
|
Φ70mm
|
|
10
|
Weight
|
About 4500kgs
|
|
11
|
Main structure of the machine
|
350H beams
|
|
12
|
Processing precision
|
Within 1.0mm
|
|
13
|
Side panel of machine
|
16mm
|
|
14
|
Chain Wheel and Cycle Chain
|
1 Inch
|
|
15
|
Voltage
|
380V 50Hz 3phases or as customer's need
|
|
16
|
Control system
|
PLC control (Delta)
|
|
17
|
Frequency system
|
Delta
|
|
18
|
Drive mode
|
Motor driver
|
|
19
|
Touch screen
|
Delta
|
|
20
|
Rolling materials
|
45# forging steel with chromium plate
|
|
21
|
Length Tolerance
|
±2mm
|
Guarantee
1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
Payment terms
40% in advance as down payment
60% is paid before the shipment is processed
Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
