Nguồn gốc:
Trung Quốc đại lục
Hàng hiệu:
CANGZHOU FMS
Chứng nhận:
ISO CE
Số mô hình:
Ngói Met / Ngói tráng men
Băng hình
Băng hình
Băng hình

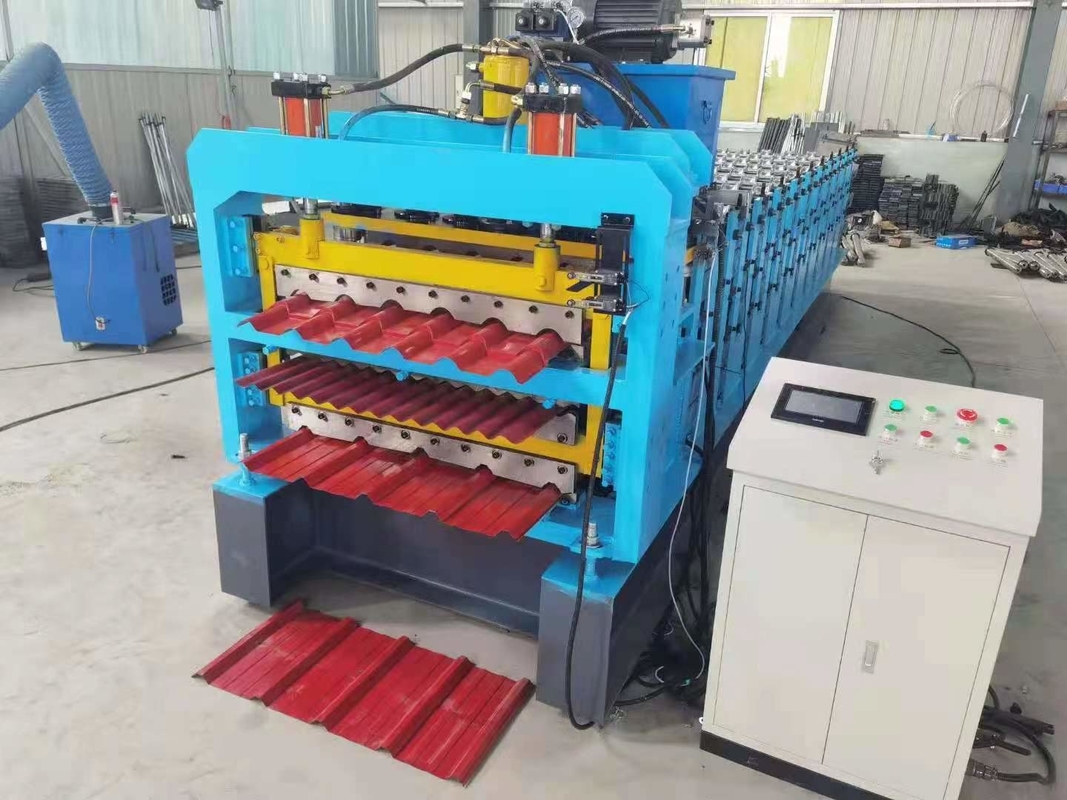

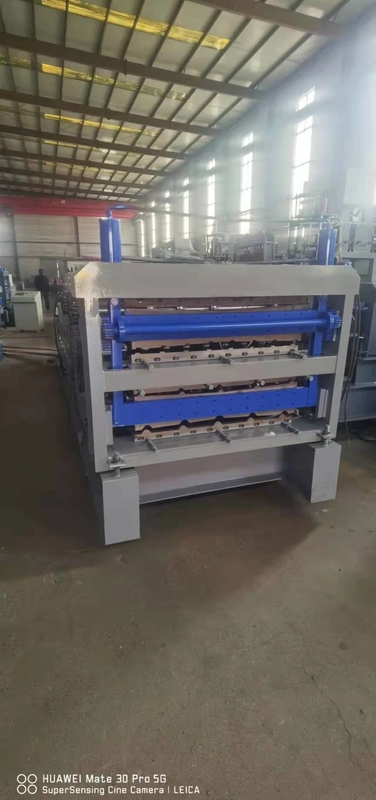

Three layer roll forming machine Full automatic
Color painted steel three layer roofing roll forming machine is mainly producing steel roof/ wall sheet .The final products have three types, corrugated sheet and trapezoidal sheet and glazed tiles.As we know, steel roof/ wall sheet is widely used in large span factory building, warehouse, office buildings, villas, roof, cold storage, air purification room, stores, kiosks, and temporary housing.
Specification
| Processing material | Color steel coil, Galvanized coil, Aluminized zinc coil or as your customized |
| Processing thickness (mm) | 0.3-1.0mm or as your customized |
| Material of rollers | High grade 45# steel, Processed by CNC lathe, Hardening and tempering, polishing, hard chrome plated 0.05-0.07mm |
| Material of shafts | 45# steel |
| Diameter of shafts | 70mm or as your customized |
| Forming speed | 8-12 m/min or as your customized |
| Under frame | 350 H-beam |
| Sidewall | 16mm |
| Connect bar | 25mm, zinc plated |
| Forming steps | 10-18 or as your customized |
| Control system | Delta PLC and Inverter |
| Suitable power | 380V, 50 Hz, 3 phase or according to your need |
| Drive mode | Chain and sprocket, chain size 1 inch |
| Main motor | 3-5.5kw |
| Hydraulic pump station | 3-5.5kw |
| Cutting model | Hydraulic profile cutting |
| Dimension of the machine | 7.5m-11m×1.5mm×1.2m |
| Weight of the machine | 3.5 ton -6 ton |
2. Repairs will not be performed even during the guarantee period in the follow circumstances
1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.Guarantee
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
Payment terms
40% in advance as down payment
60% is paid before the shipment is processed
Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
