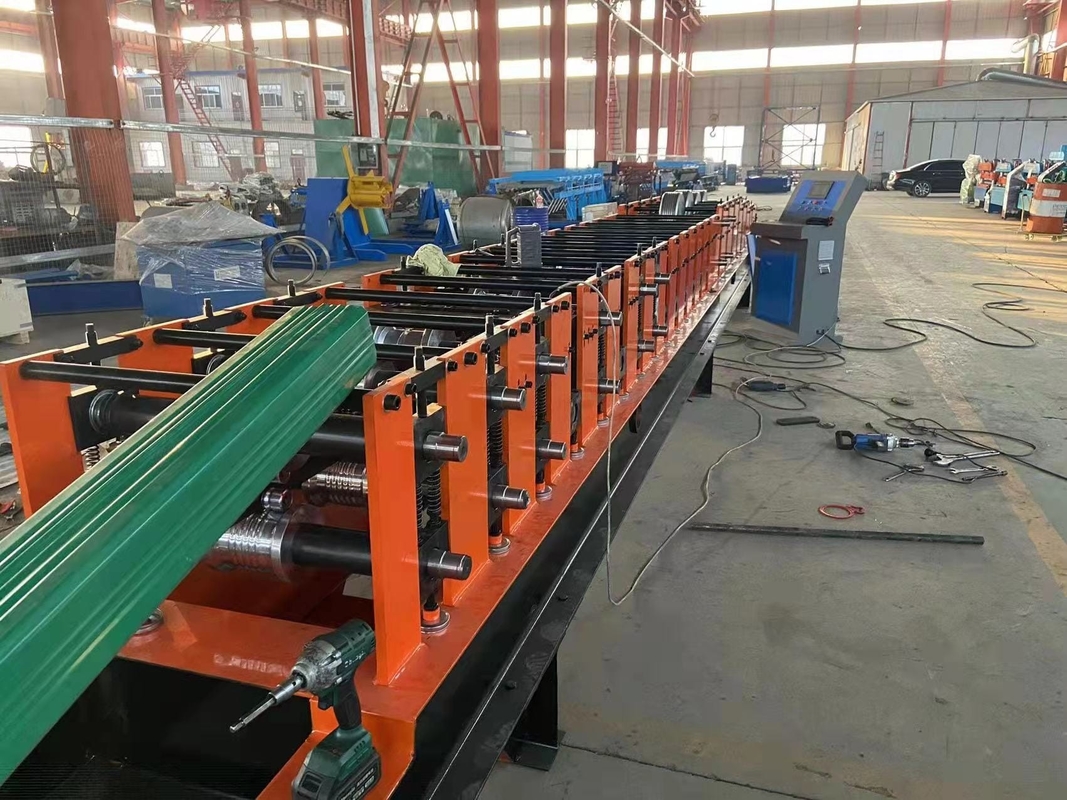

Cold Metal Shaping 0.3mm Downspout Roll Forming Machine

Cold Metal Shaping 0.3mm Downspout Roll Forming Machine

plc downspout roll forming machine

0.3mm downspout roll forming machine

cold metal shaping downspout machine

Nguồn gốc:

Trung Quốc đại lục

Hàng hiệu:

CANGZHOU FMS

Chứng nhận:

ISO CE

Số mô hình:

mương nước

Liên hệ với chúng tôi
Yêu cầu báo giá
Chi tiết sản phẩm
Tên sản phẩm:
​Máy tạo hình cuộn lạnh ống dẫn nước Định hình kim loại
Nguyên liệu thô:
Galvalume, mạ kẽm, PPGI, Nhôm, Đồng
Điện áp:
380V 50Hz 3phase
Kích thước:
7,4 * 1,15 * 1,51m
Hệ thống điều khiển:
PLC
Vật liệu của tấm cắt:
CR12
gia công chính xác:
Trong vòng 1,00mm
Độ dày vật liệu:
0,3-0,8mm
Làm nổi bật:

plc downspout roll forming machine

,

0.3mm downspout roll forming machine

,

cold metal shaping downspout machine

Điều khoản thanh toán và vận chuyển
Số lượng đặt hàng tối thiểu
1 bộ
Giá bán
negotiable
chi tiết đóng gói
FLC 20'
Thời gian giao hàng
30 ngày làm việc
Điều khoản thanh toán
L/c, t/t, d/a, d/p
Khả năng cung cấp
20 bộ mỗi tháng
Mô tả sản phẩm

​Downspouts cold roll forming Machine Metal Shaping



The roll formed product is mor durable than the tranditional ppc pipe, and not easy to aging.

It will make the project more integrate, and help enhancing the image of all project.

Drainpipe bending machine used for bend the roll formed pipe, to connect the drainpipe and the elbowed pipe.

This equipment has high output efficiency. The gutter board produced by it has a flat surface, no scratches, easy installation, light volume, and low site requirements. It is one of the best-selling versions in the US market.



Specification

No. Downspouts cold roll forming Machine Metal Shaping
1 Suitable to process Color steel plate
2 Width of the plate 330mm
3 Rollers 15rows
4 Dimensions 7400*1150*1510mm
5 Power 5.5+4kw
6 Rolling material high grade 45# steel(plated chrome on surface)
6 Thickness of the plate 0.3-0.6mm
7 Productivity 8-10m/min
8 Diameter of the roller Φ66mm
9 Voltage 380V 50Hz 3phases
10 Material of the cutting plate Cr12
11 Hydraulic 40#
12 Processing precision Within 1.00mm
13 Control system PLC control



Application



This produc has the advantages of easy installation, short construction period, beautiful appearance, light weight but high strength.so it's widely used in roofs and walls of factories, warehouses, garages, stadiums, exhibition centers, cinemas, theaters, etc.





Guarantee



1.Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation



Payment terms and delivery



40% in advance as down payment

60% is paid before the shipment is processed

The Delivery Time: 30 days after the down payment is received.
