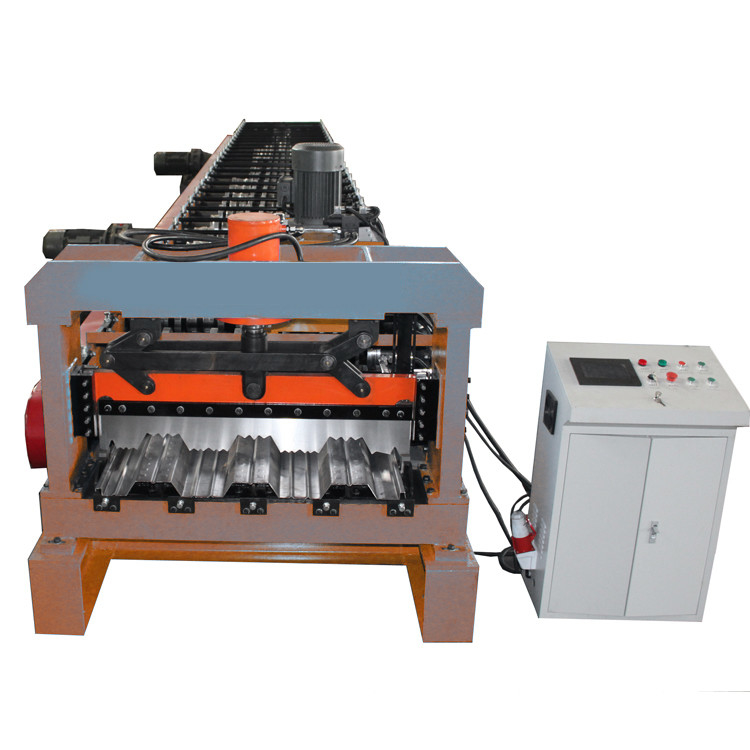

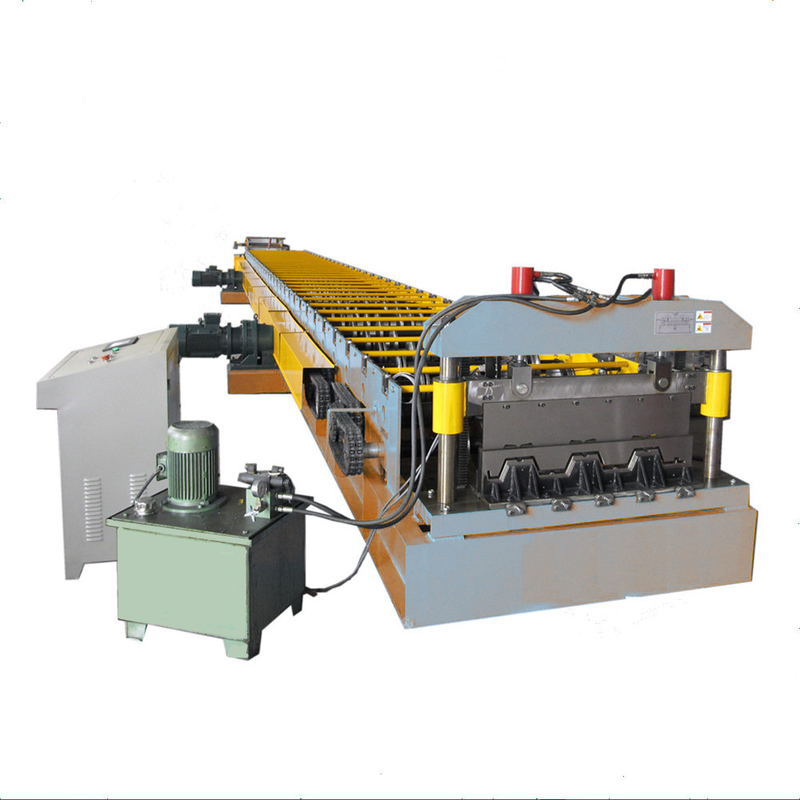

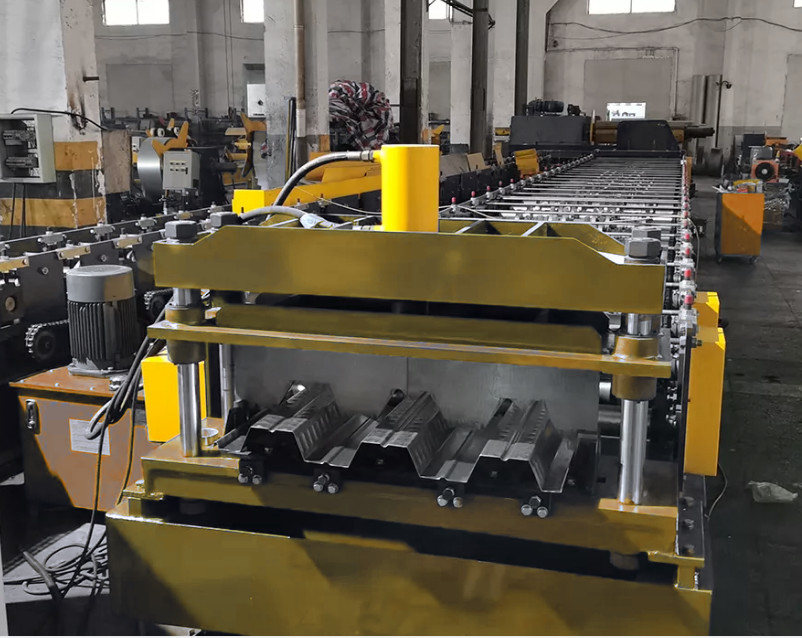

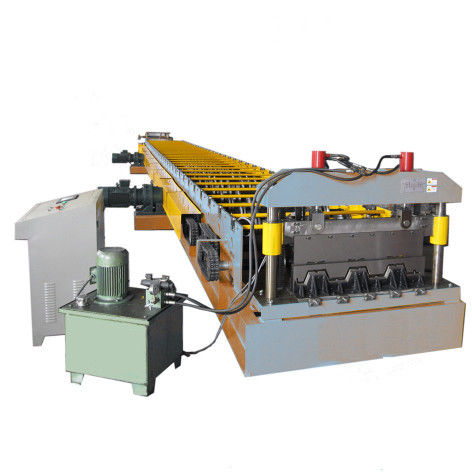

USA Market Popular B Deck Profile Roll Forming Machine With Pressing Dot
Floor deck machine is a kind of building material that combines steel bars welded into trusses with galvanized steel sheets (floor slabs).
In the engineering project, the steel truss floor slab can play its unique role in different stages.
For example, when people work on the project, it can more support the building materials and construction pressure;
When used, it can also be combined with concrete to form a reinforced concrete truss with strong bearing capacity.
Specification
| 1 | Control system | PLC brand :Delta / Panasonic |
| 2 | Cutting system | Hydraulic cutting by pillar type |
| 3 | Rows of rollers | 26Rows |
| 4 | Total power | 11+11+5.5KW |
| 5 | The thickness of raw material | 0.67-1.2mm |
| 6 | Diameter OF shaft | ￠90mm |
| 7 | Voltage | 220V 60Hz 3phases |
Guarantee
1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
Payment terms
40% in advance as down payment
60% is paid before the shipment is processed
Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
