Plc Waterproof Stud And Track Roll Forming Machine With Punching

Plc Waterproof Stud And Track Roll Forming Machine With Punching

plc stud and track roll forming machine

punching stud and track roll forming machine

waterproof stud roll former

Nguồn gốc:

Trung Quốc đại lục

Hàng hiệu:

CANGZHOU FMS

Chứng nhận:

ISO CE

Số mô hình:

Nghiên cứu và theo dõi

Liên hệ với chúng tôi
Yêu cầu báo giá
Chi tiết sản phẩm
Tên sản phẩm:
Máy tạo hình cuộn và theo dõi Malaysia Phổ biến với đột dập
Năng lực sản xuất:
20---40m mỗi phút
Quyền lực:
5.5KW+4KW
Điểm bán hàng chính:
Dễ dàng vận hành
Tình trạng:
Mới
Tốc độ máy:
bình thường: 25m/phút; cao hơn: 40---60m/phút
Hệ thống điều khiển máy:
Điều khiển PLC hoàn toàn tự động
Sức chịu đựng:
+/- 0,1 mm
Làm nổi bật:

plc stud and track roll forming machine

,

punching stud and track roll forming machine

,

waterproof stud roll former

Điều khoản thanh toán và vận chuyển
Số lượng đặt hàng tối thiểu
1 bộ
Giá bán
negotiable
chi tiết đóng gói
FLC 20'
Thời gian giao hàng
30 ngày làm việc
Điều khoản thanh toán
L/c, t/t, d/a, d/p
Khả năng cung cấp
20 bộ mỗi tháng
Sản phẩm liên quan
Liên hệ với chúng tôi
86-317-2016816
Liên hệ ngay
Mô tả sản phẩm

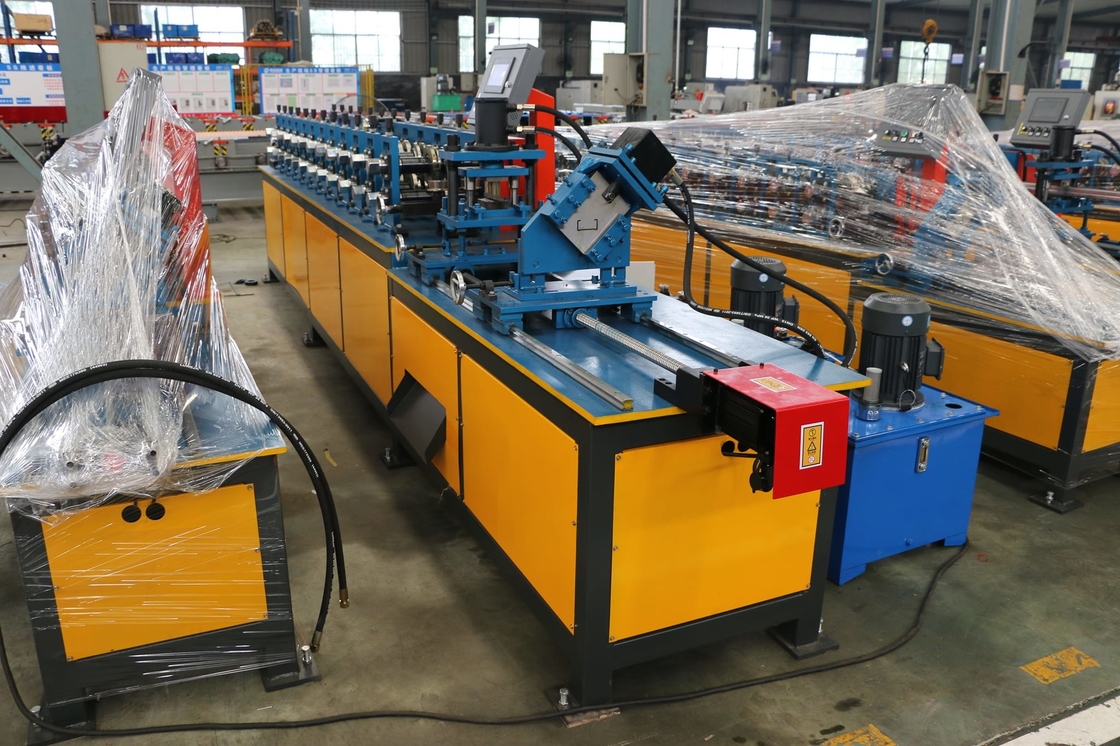

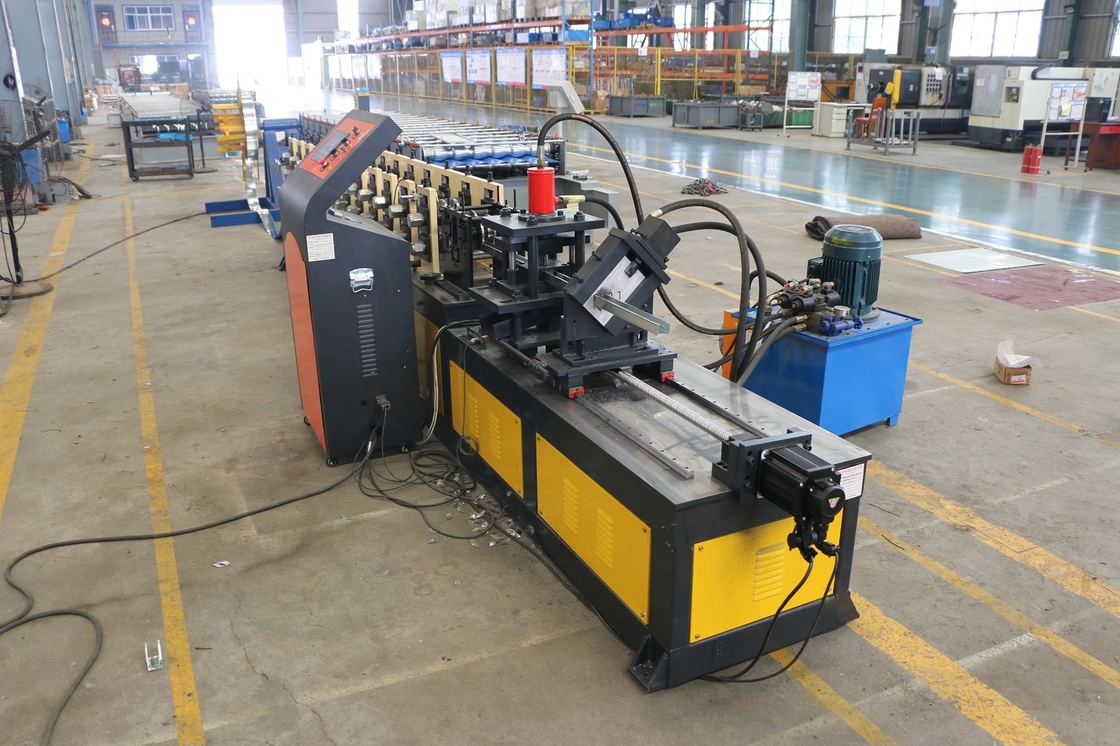

Stud and Track Roll Forming Machine Malaysia Popular with Punching



Summary

1). To design and make the best roll forming machine, we took EUROPEAN quality standard;
2). Choose the best material and components, and adopting our 17+ years experience;
3). We achieves that the machine capacity is double of the competitors;
4). The machine working speed can be 60m/min;
5). Very easy to install and operate the roll forming machine.

light gauge Stud and Track Roll Forming Lines produce precision studs and tracks for the booming residential and commercial construction market.The Steel Stud Drywall Framing machine can produce a durable, practical and lightweight structure for internal plasterboard walls and for specific external walls. The availability of various sizes, complimentary components such as nogging tracks, curved tracks and special cleats ensure Stud and Track wal machines are available to suit almost all situations.






Specification

Forming steps
12stations
Roller material
Cr12
Shaft material
45# steel
Shaft diameter
80mm
Machine frame
Middle steel plate
Machine stand
350H steel
Work speed
0-20m/min
Transimmison
Gear
Power of main machine
4kw
Cutting system
Hydraulic cutting
Voltage
380V 50HZ 3P
Oil pump motor
4kw
Machine color
Yellow and blue


Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment
60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.Plc Waterproof Stud And Track Roll Forming Machine With Punching 0
