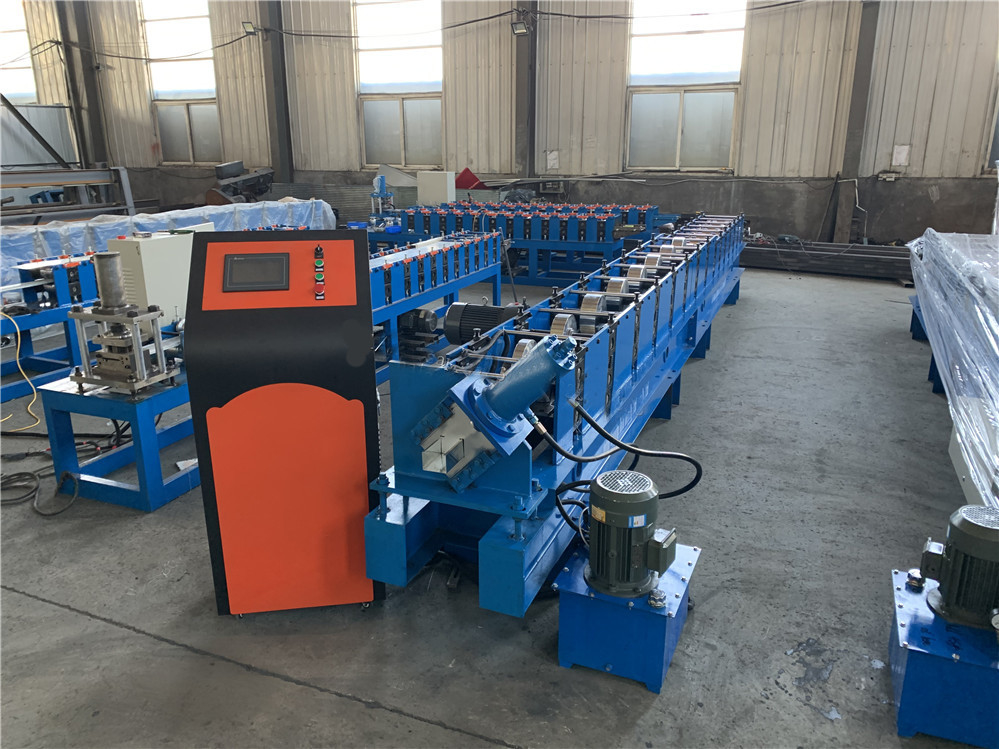

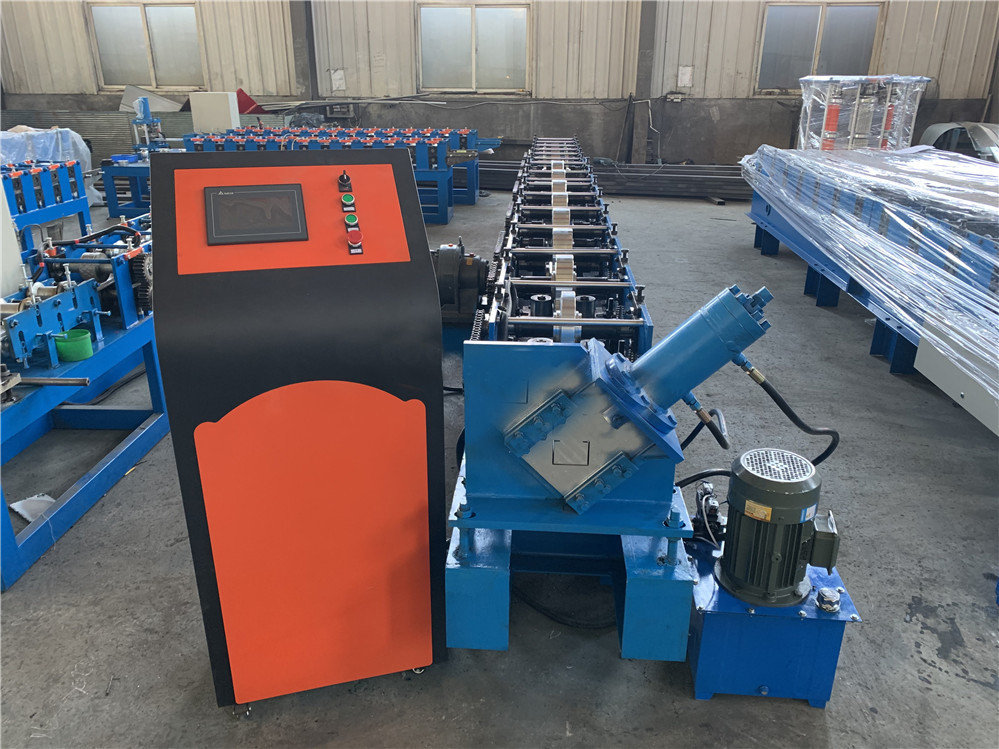

Metal C Profile Purlins Roll Forming Machine Small Automatic
his C Purlins Roll Forming Machine can produce different size of the C purlin, when it produce different size of C purlin, it need need change the blade and rollers, just need adjust the rollers and cutting device. In this way to meet customer's different requirements. The whole line of Multy Size Galvanized Steel C Channel Purlin Roll Forming Machine mian inculd five part, they are decoiler, main roll forming machine , PLC control system, Cutting system and product receiving table.C purlin is widly used in large-scal steel structure, such as warehouse, workshop and so on. It has a large marke
specifications
| No. | Type | Specification | |
|
|
|
Type | Colored steel plate, galvanized board |
| Feeding width | According to the size of C purlin | ||
| Thickness | 1.5-3mm | ||
|
|
|
Roller station | 15 steps (According to the profile) |
| Diameter of shaft | 90mm | ||
| Shaft material | 45# Steel | ||
| Roller material | 45# Steel | ||
| Frame | 300mm H Steel | ||
| Frame thickenss | 16 mm | ||
| Operation | Manual and Automatic | ||
| Working speed | 8-12 m/min | ||
| Size (L*W*H) | About 7600*950*1510mm | ||
| Weight | About 4.5 Tons | ||
| Cutting type | Hydraulic cutting | ||
| Material of blade | Cr12 | ||
| 3 | Power | Motor power | 7.5 kw |
| Hydraulic power | 5.5 kw | ||
| Voltage | 380V 50Hz 3phases or Customerization | ||
| Driving way | By Chain | ||
Guarantee
1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
Payment terms
40% in advance as down payment
60% is paid before the shipment is processed
Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
