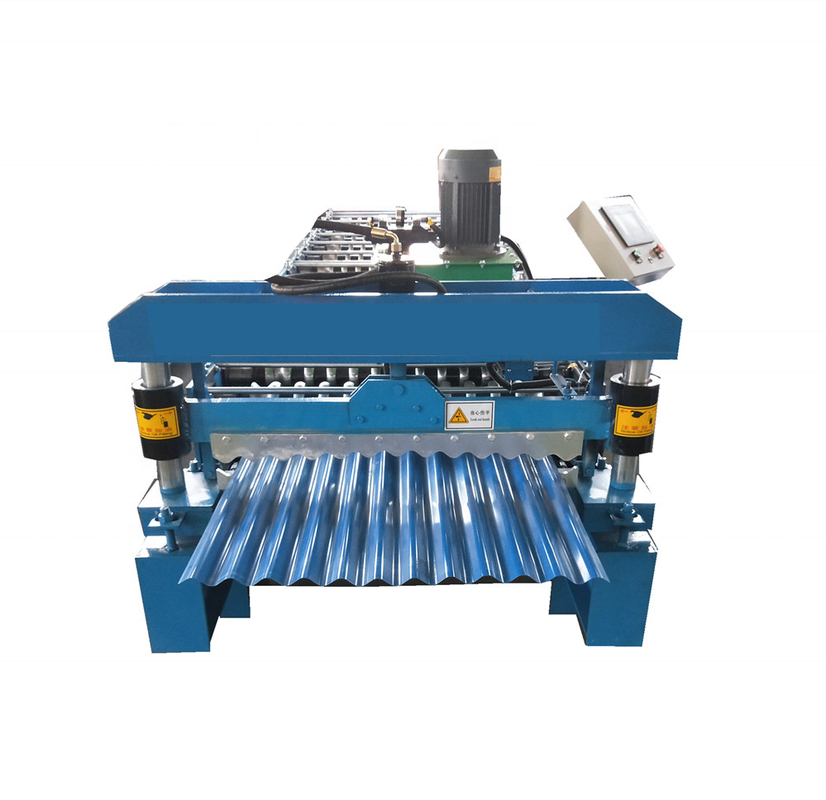

7/8 Corrugated galvanized metal Roofing machine automatic cutting

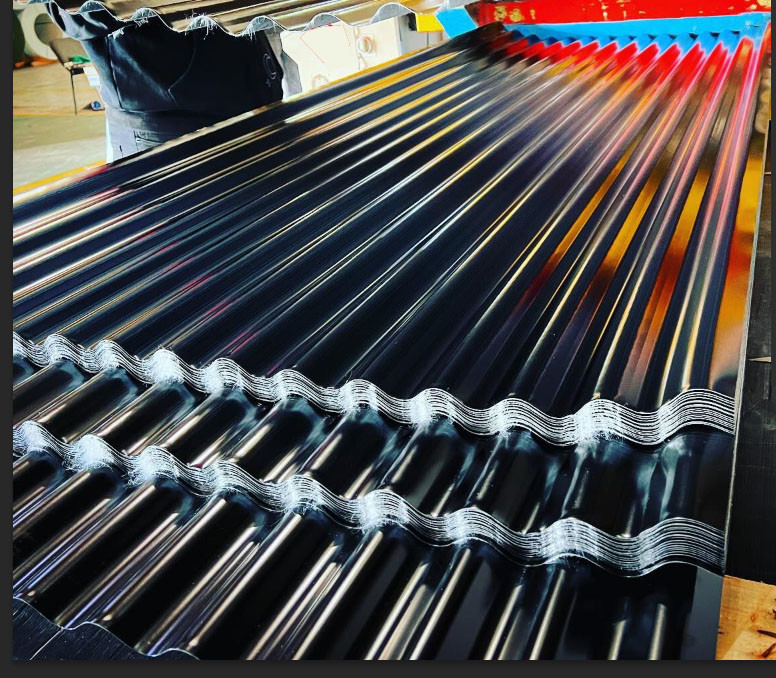

This machine can customize the tile length according to the requirements ,there is the construction of the computer controller to set up multiple sets of different data,easy operate.Our roll forming machine consists of the following parts: decoiler, color steel tile press main body, PLC computer control system, automatic post-cutting system and receiving table.Metal Roofing Sheet Corrugating Iron Sheet Roll Forming Making Machine for Wall and Roof is very popular in the world, it play a fairly important role in the steel struction building. This machine can produce very beautiful and durable roof tile, With these roof tile, it can protect your roof of house well.
Specification
| No. | Type | Specification | |
|
1 |
Row Material |
Type | Aluminum / Steel / Galvanized Panel |
| Feeding width | According to client's requirement | ||
| Thickness | 0.3-0.7 mm | ||
|
2 |
Main body |
Roller station | 13 Steps (According to the profile) |
| Diameter of shaft | 75mm | ||
| Shaft material | 45# Steel | ||
| Roller material | 45# Steel | ||
| Frame | 300mm H Steel | ||
| Frame thickenss | 18 mm | ||
| Operation | Manual and Automatic | ||
| Working speed | 8-12 m/min | ||
| Size (L*W*H) | About 7600*1550*1510mm | ||
| Weight | About 3.5 Tons | ||
| Cutting type | Hydraulic cutting | ||
| Material of blade | Cr12, HRC60-62°C | ||
|
3 |
Power |
Motor power | 4 kw |
| Hydraulic power | 4 kw | ||
| Voltage | 380V 50Hz 3phases or Customerization | ||
| Driving way | By Chain | ||
Guarantee
1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
Payment terms
40% in advance as down payment
60% is paid before the shipment is processed
Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
