Self Lock Standing Seam Roll Forming Machine For Color Steel Roofing Sheet

Self Lock Standing Seam Roll Forming Machine For Color Steel Roofing Sheet

roofing standing seam roll forming machine

selflock standing seam roll forming machine

self lock standing seam roll former

Nguồn gốc:

TRUNG QUỐC

Hàng hiệu:

FMS

Chứng nhận:

CE,ISO

Liên hệ với chúng tôi
Yêu cầu báo giá
Chi tiết sản phẩm
Tên sản phẩm:
Máy tạo hình cuộn đường may đứng tự khóa Tấm lợp thép màu loại Ghana
Thành phần cốt lõi:
Động cơ, Bơm, PLC
Điện áp:
380V hoặc theo yêu cầu
Giai đoạn lăn:
16 trạm lăn
Độ dày làm việc:
0,3-0,7mm
Vật liệu con lăn:
45 # thép Mạ Chrome
Cân nặng:
1800 kg
Chiều rộng cho ăn:
400mm
Làm nổi bật:

roofing standing seam roll forming machine

,

selflock standing seam roll forming machine

,

self lock standing seam roll former

Điều khoản thanh toán và vận chuyển
Số lượng đặt hàng tối thiểu
1 bộ
Giá bán
negotiable
chi tiết đóng gói
Máy chính có màu khỏa thân, hộp điều khiển máy tính được đóng gói bằng nhựa.
Thời gian giao hàng
30 ngày
Điều khoản thanh toán
T/T, Liên minh phương Tây
Khả năng cung cấp
30 bộ mỗi tháng
Sản phẩm liên quan
Liên hệ với chúng tôi
86-317-2016816
Liên hệ ngay
Mô tả sản phẩm

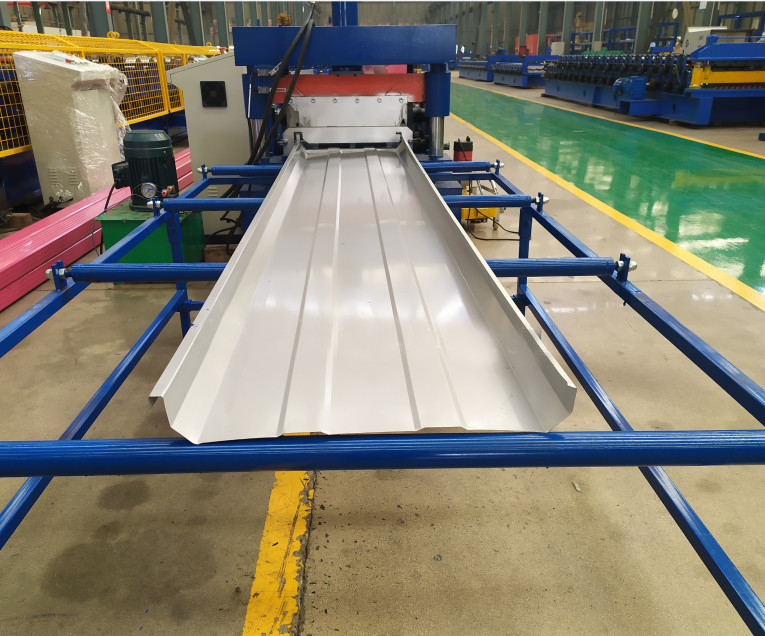

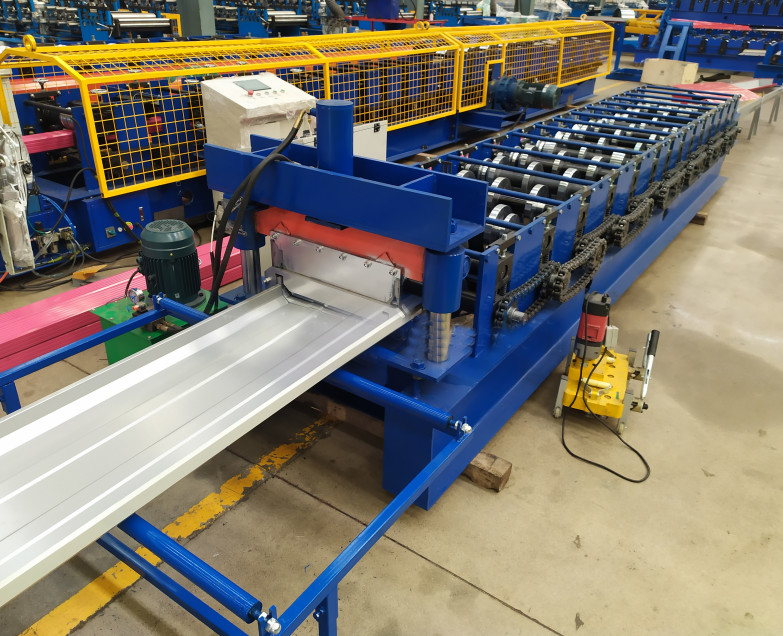

 Self Lock Standing Seam Roll Forming Machine Ghana Type Color Steel Roofing Sheet



The ability to remove and replace a single metal roofing panel without having to take off the entire roof is an amazing advantage and something that other standing seam metals profiles can not do. Because life happens, things change, and homes and buildings need to meet the needs of different people or building occupants over time mean additions and remodels happen. Changes or repairs on chimneys, skylights, HVAC units, or even fixing storm damage is all a realty.



Equipment Detailed Parameters

Metal material thickness
0.3 - 0.8mm
Metal material width
400mm or as client require
Roller Stage
16 rows
Roller Material
45# forging steel with chromium plate
Diameter of shaft
Φ70mm
Material of cutting blade
Cr12Mov, Quenched treatment 58℃-60℃
Main Structure of the Machine
300H beams
Side Panel of Machine
16mm
Chain
1 inch
Motor power
5.5kw
Hydraulic pump power
4 kw
Productivity
8-12 meters per minute

Guarantee



1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation



Payment terms



40% in advance as down payment

60% is paid before the shipment is processed



Delivery



FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.


Self Lock Standing Seam Roll Forming Machine For Color Steel Roofing Sheet 0
