Profile 1.2MM Deck Floor Roll Forming Machine With Pressing Dot

Profile 1.2MM Deck Floor Roll Forming Machine With Pressing Dot

1.2mm deck floor roll forming machine

profile deck floor roll forming machine

pressing dot floor deck forming machine

Nguồn gốc:

Trung Quốc đại lục

Hàng hiệu:

FMS

Chứng nhận:

ISO CE

Liên hệ với chúng tôi
Yêu cầu báo giá
Chi tiết sản phẩm
Tên sản phẩm:
Thị trường Hoa Kỳ Máy tạo hình cuộn hồ sơ B Deck phổ biến có dấu chấm
Kích cỡ:
380V/50HZ/3PHASE, 220V/380V/415V/440V/tùy chỉnh
độ dày cán:
0,8-1,2mm
Loại cắt:
Cắt thủy lực
Hệ thống điều khiển:
PLC
Trục:
Thép đặc 82mm
Năng lực sản xuất:
18m/phút
Điểm bán hàng chính:
Cuộc sống phục vụ lâu dài
Làm nổi bật:

1.2mm deck floor roll forming machine

,

profile deck floor roll forming machine

,

pressing dot floor deck forming machine

Điều khoản thanh toán và vận chuyển
Số lượng đặt hàng tối thiểu
1 bộ
Giá bán
negotiable
chi tiết đóng gói
FLC 40'
Thời gian giao hàng
30 ngày làm việc
Điều khoản thanh toán
L/c, t/t, d/a, d/p
Khả năng cung cấp
20 bộ mỗi tháng
Sản phẩm liên quan
Liên hệ với chúng tôi
Liên hệ ngay
Mô tả sản phẩm

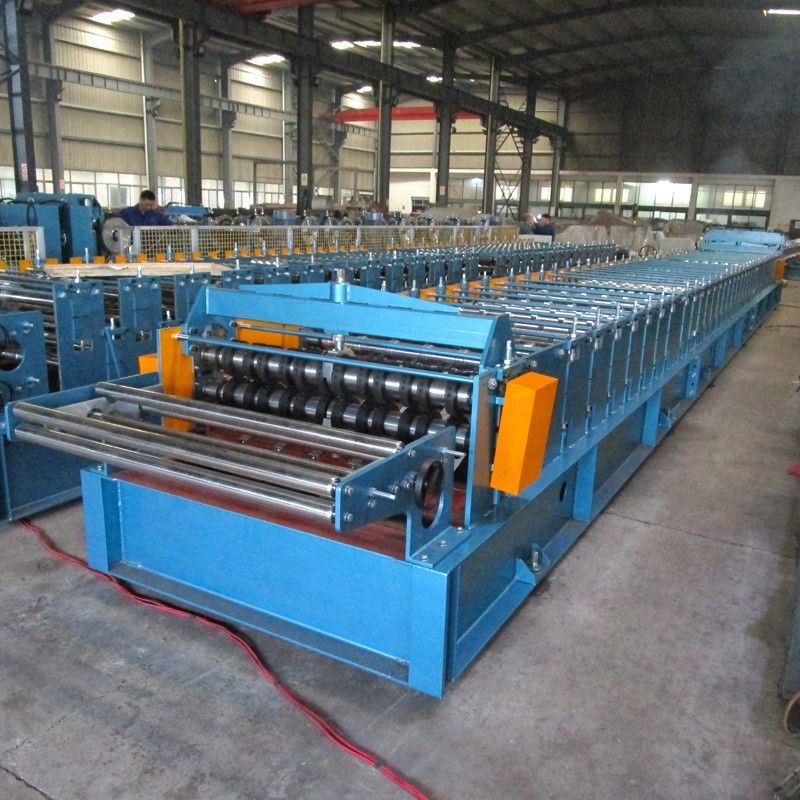

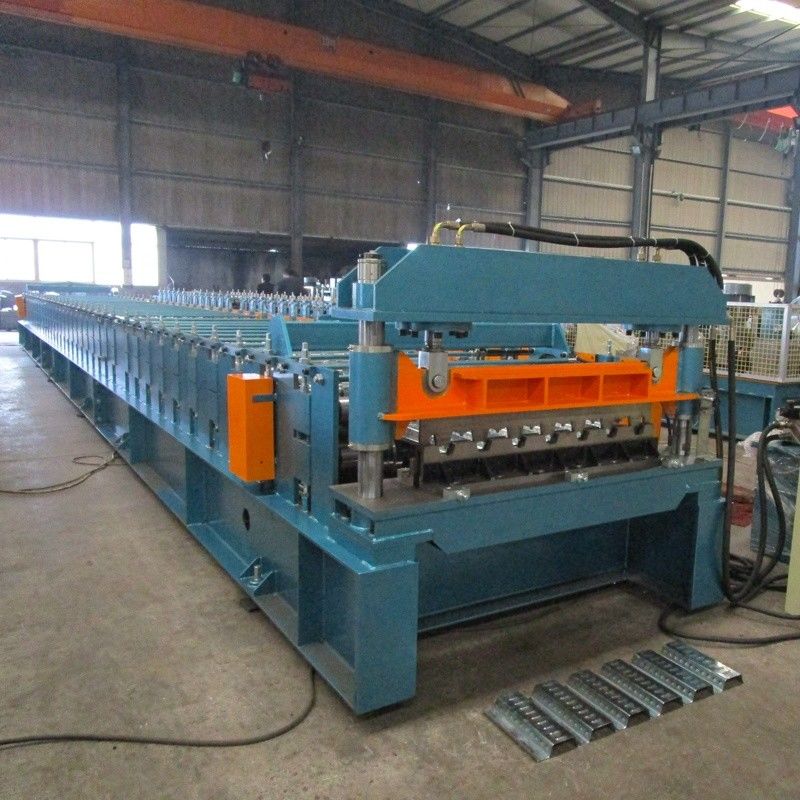

 USA Market Popular B Deck Profile Roll Forming Machine With Pressing Dot

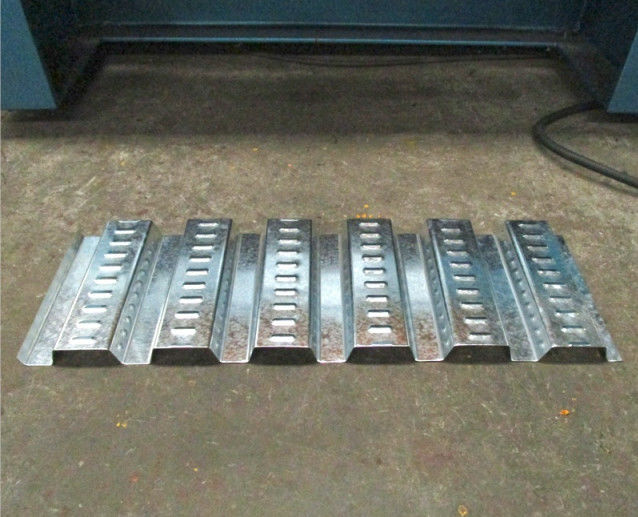

 The steel floor deck roll forming machine is used to produce high-quality steel floor decks. The steel floor deck is also called floor bearing steel plate. This kind of floor deck is applied in supporting concrete or insulating membrane of a roof. It is developed to provide a structurally efficient product for use in roof and floor systems. The floor has the fllowing features: high peak and high strength with a low cost.


Specification


Item Specification



Material

Type Pre-painted steel coil & galvanized coils
Thickness(mm) 0.8-1.2
Yield strength(mpa) 235-345
Roller material 45#Chrome steel plate with hard chrome
Forming speed(m/min) 12
Speed adjusting mode AC Frequency
Roller drive Decelerating motor + Chain drive
Cutting mode Hydraulic cutting
Cutter material Cr12 mould steel
Length measurement Encoder
Control mode Mitsubishi PLC
Operating mode Button + Mitsubishi Touch screen
Main motor power(kw) 11x2KW
Total power(kw) 27.5KW

Guarantee



1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation



Payment terms



40% in advance as down payment

60% is paid before the shipment is processed



Delivery



FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
