Nguồn gốc:
Trung Quốc đại lục
Hàng hiệu:
CANGZHOU WILLING
Chứng nhận:
ISO CE
Số mô hình:
Mũ sườn núi
Băng hình
Băng hình
Băng hình

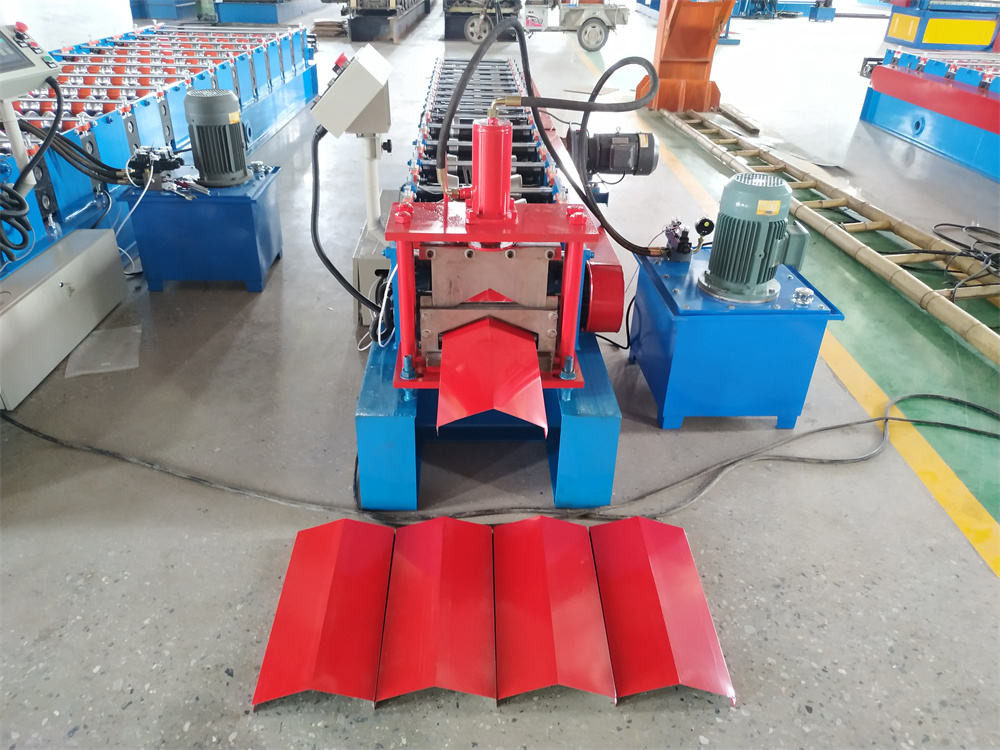

High Speed Roll Top Ridge Cap Roll Forming Machine South Africa
Is designed to produce ridge cap tile used on roof, this machine is very easy to install, low noise and high efficiency.
The ridge tile forming equipment adopts roller forming technology and is used for hydraulic forming with a die. Products are widely used in the roof connection of building color steel plates. This machine can be customized according to customer requirements.The ridge tile forming machine can be produced continuously like other roll forming machines, replacing the tedious process of making ridge tiles with a bending machine, saving human resources and greatly reducing labor costs.
Specification
| Article No. | Item Name | Specification |
| 1 | Processing material | Color steel coil, Galvanized coil, Aluminized zinc coil or as your customized |
| 2 | Processing thickness (mm) | 0.3-0.8mm |
| 3 | Material of rollers | High grade 45# steel, Processed by CNC lathe, Hardening and tempering, polishing, hard chrome plated 0.05-0.07mm |
| 4 | Material of shafts | 45# steel |
| 5 | Diameter of shafts | 70mm or as your customized |
| 6 | Forming speed | 20-25 m/min |
| 7 | Under frame | 300 H-beam |
| 8 | Sidewall | 16mm |
| 9 | Connect bar | 25mm, zinc plated |
| 10 | Forming steps | 11rollers |
| 11 | Control system | Delta PLC and Inverter |
| 12 | Suitable power | 380V, 50 Hz, 3 phase or according to your need |
| 13 | Drive mode | Chain and sprocket, chain size 1 inch |
| 14 | Main motor | 4w |
| 15 | Hydraulic pump station | 4w |
| 16 | Cutting model | Hydraulic profile cutting |
| 17 | Dimension of the machine | 6m×0.6mm×1.0m |
| 18 | Weight of the machine | 2.5tons |
Guarantee
1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
Payment terms
40% in advance as down payment
60% is paid before the shipment is processed

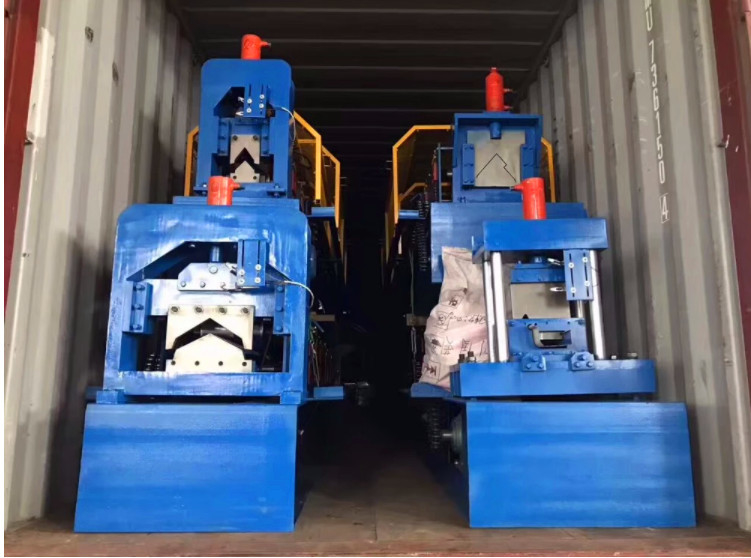

Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
