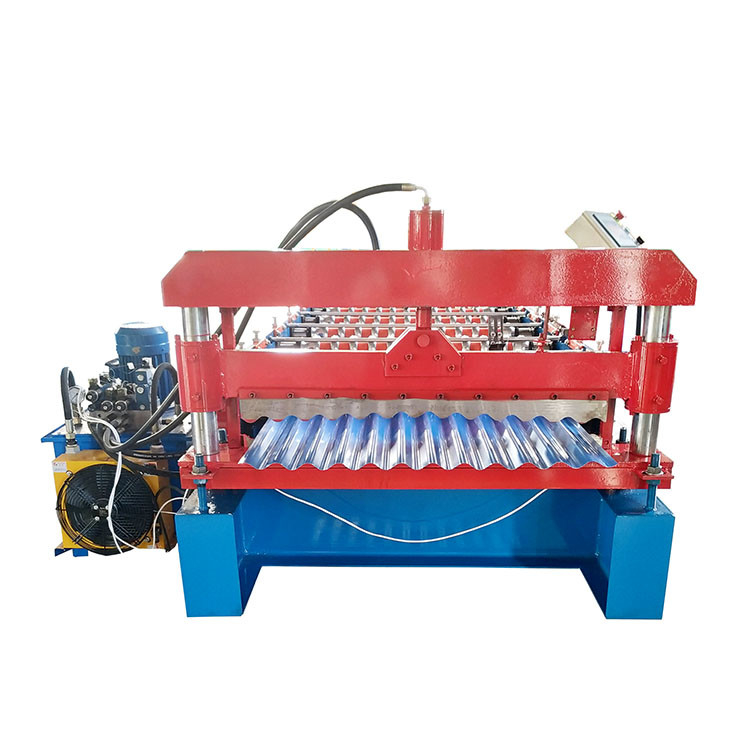

Corrugated Galvanised Stell Roofing Sheets Roll Forming Machine Automatic Cutting
This machine can customize the tile length according to the requirements ,there is the construction of the computer controller to set up multiple sets of different data,easy operate.Our roll forming machine consists of the following parts: decoiler, color steel tile press main body, PLC computer control system, automatic post-cutting system and receiving table.
The entire unit is automatically controlled, which can effectively save the need for manpower, thereby reducing production costs for customers
The equipment automatically set in accordance with the computer data to produce different lengths of finished products.

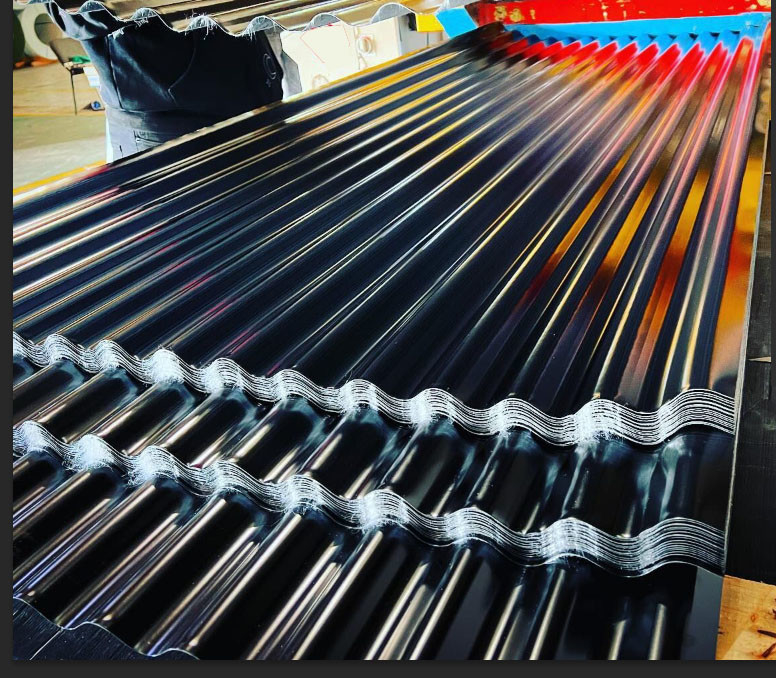

Customized shape profile panel metal roll forming roof sheet making machine,it is our company most popular products in building materials machine. For roof sheet, it include many type according to its different shape, popular type include corrugated tile roll forming machine,
Specification
| Article No. | Item Name | Specification |
| 1 | Processing material | Color steel coil, Galvanized coil, Aluminized zinc coil or as your customized |
| 2 | Processing thickness (mm) | 0.3-1.0mm or as your customized |
| 3 | Material of rollers | High grade 45# steel, Processed by CNC lathe, Hardening and tempering, polishing, hard chrome plated 0.05-0.07mm |
| 4 | Material of shafts | 45# steel |
| 5 | Diameter of shafts | 70mm or as your customized |
| 6 | Forming speed | 8-12 m/min or as your customized |
| 7 | Under frame | 350 H-beam |
| 8 | Sidewall | 16mm |
| 9 | Connect bar | 25mm, zinc plated |
| 10 | Forming steps | 10-18 or as your customized |
| 11 | Control system | Delta PLC and Inverter |
| 12 | Suitable power | 380V, 50 Hz, 3 phase or according to your need |
| 13 | Drive mode | Chain and sprocket, chain size 1 inch |
| 14 | Main motor | 3-5.5kw |
| 15 | Hydraulic pump station | 3-5.5kw |
| 16 | Cutting model | Hydraulic profile cutting |
| 17 | Dimension of the machine | 7.5m-11m×1.5mm×1.2m |
| 18 | Weight of the machine | 3.5 ton -6 ton |
Guarantee
1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
Payment terms
40% in advance as down payment
60% is paid before the shipment is processed
Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
