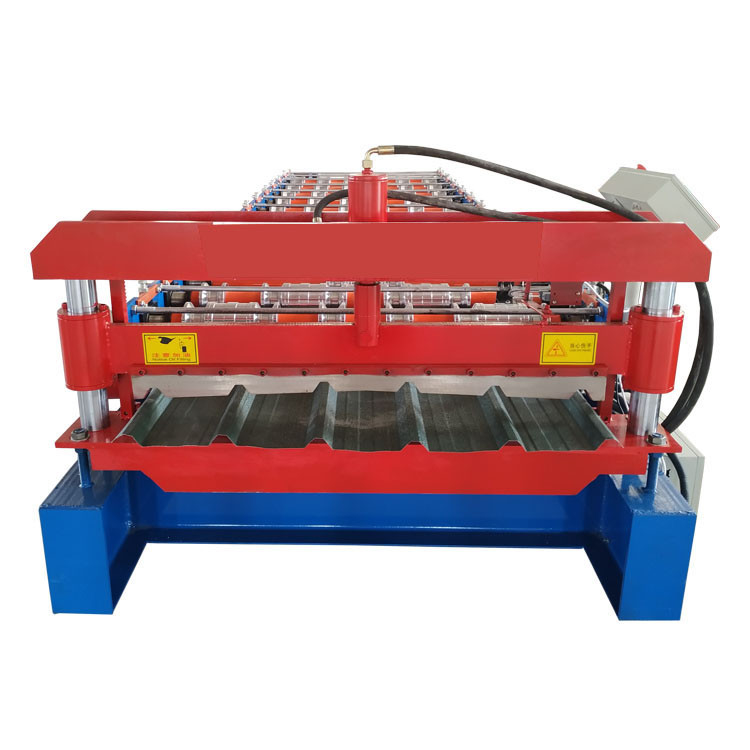

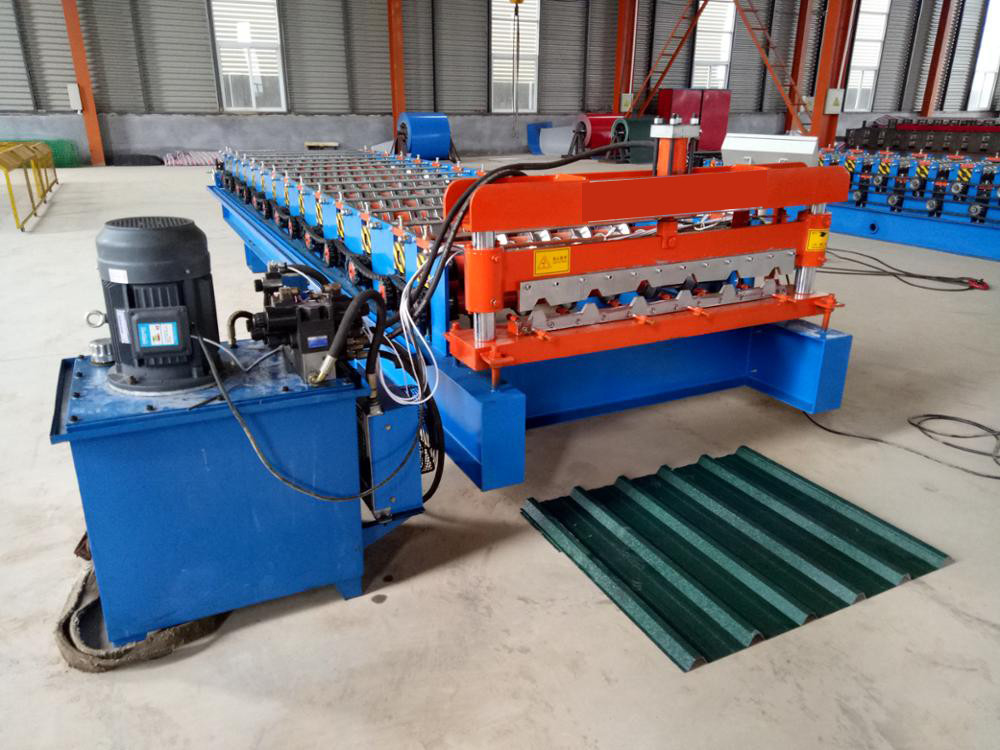

Box Profile Sheets Metal Roofing Roll Forming Machine Automated
Roof Roll Forming Machine,This machine can customize the tile length according to the requirements ,there is the construction of the computer controller to set up multiple sets of different data,easy operate.
The equipment automatically set in accordance with the computer data to produce different lengths of finished products.
Customized shape profile panel metal roll forming roof sheet making machine,it is our company most popular products in building materials machine. For roof sheet, it include many type according to its different shape, popular type include corrugated tile roll forming machine, trapezoidal tile roll forming machine,Color steel sheet is suitable for industrial and civil buildings, warehouses, special buildings, roofs, walls and interior and exterior wall decorations of large-span steel structure houses. It has light weight, high strength, rich color, convenient and fast construction, earthquake resistance, fire resistance, rain resistance, and long life.
Specification
| Article No. | Item Name | Roof Roll Forming Machine |
| 1 | Processing material | Color steel coil, Galvanized coil, Aluminized zinc coil or as your customized |
| 2 | Processing thickness (mm) | 0.3-0.8mm |
| 3 | Material of rollers | High grade 45# steel, Processed by CNC lathe, Hardening and tempering, polishing, hard chrome plated 0.05-0.07mm |
| 4 | Material of shafts | 45# steel |
| 5 | Diameter of shafts | 70mm or as your customized |
| 6 | Forming speed | 20-25 m/min |
| 7 | Under frame | 350 H-beam |
| 8 | Sidewall | 16mm |
| 9 | Connect bar | 25mm, zinc plated |
| 10 | Forming steps | 16rollers |
| 11 | Control system | Delta PLC and Inverter |
| 12 | Suitable power | 380V, 50 Hz, 3 phase or according to your need |
| 13 | Drive mode | Chain and sprocket, chain size 1 inch |
| 14 | Main motor | 3.7kw |
| 15 | Hydraulic pump station | 3.7kw |
| 16 | Cutting model | Hydraulic profile cutting |
| 17 | Dimension of the machine | 7.5m×1.5mm×1.51m |
| 18 | Weight of the machine | 3.5 tons |
Guarantee
1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
Payment terms
40% in advance as down payment
60% is paid before the shipment is processed
Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
