Customized Shape Profile Ppgi Roof Panel Roll Former Metal

Customized Shape Profile Ppgi Roof Panel Roll Former Metal

customized shape roof roll forming machine

customized profile roof panel roll former

ppgi roof panel roll former

Nguồn gốc:

Trung Quốc đại lục

Hàng hiệu:

CANGZHOU FMS

Chứng nhận:

ISO CE

Số mô hình:

Ngói Met / Ngói tráng men

Liên hệ với chúng tôi
Yêu cầu báo giá
Chi tiết sản phẩm
Tên sản phẩm:
Bảng điều khiển hồ sơ hình dạng tùy chỉnh Máy tạo hình cuộn kim loại
Nguyên liệu thô:
Galvalume, mạ kẽm, PPGI, nhôm, đồng
Điện áp:
380V 50HZ 3 pha hoặc loại khác
Năng lực sản xuất:
8-12m/phút
Bảo hành:
1 năm
Hệ thống điều khiển:
Hoàn toàn tự động
Điện thủy lực:
4 kW
Cắt độ chính xác:
±2 mm
Cắt vật liệu lưỡi:
Cr12Mov với xử lý dập tắt
Vật liệu trục:
45 thép rèn
Làm nổi bật:

customized shape roof roll forming machine

,

customized profile roof panel roll former

,

ppgi roof panel roll former

Điều khoản thanh toán và vận chuyển
Số lượng đặt hàng tối thiểu
1 bộ
Giá bán
negotiable
chi tiết đóng gói
FLC 40'
Thời gian giao hàng
35 ngày làm việc
Điều khoản thanh toán
L/c, t/t, d/a, d/p
Khả năng cung cấp
20 bộ mỗi tháng
Sản phẩm liên quan
Liên hệ với chúng tôi
86-317-2016816
Liên hệ ngay
Mô tả sản phẩm

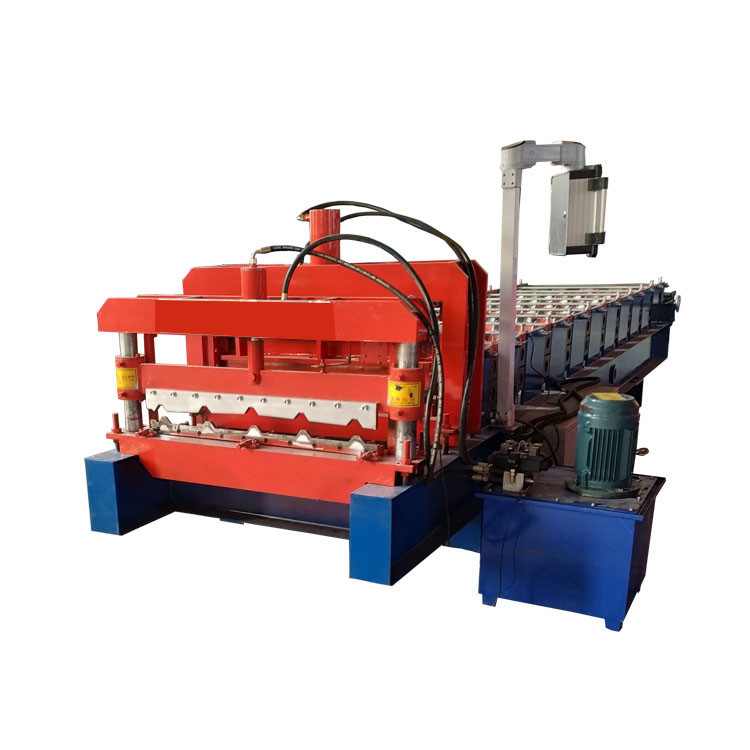

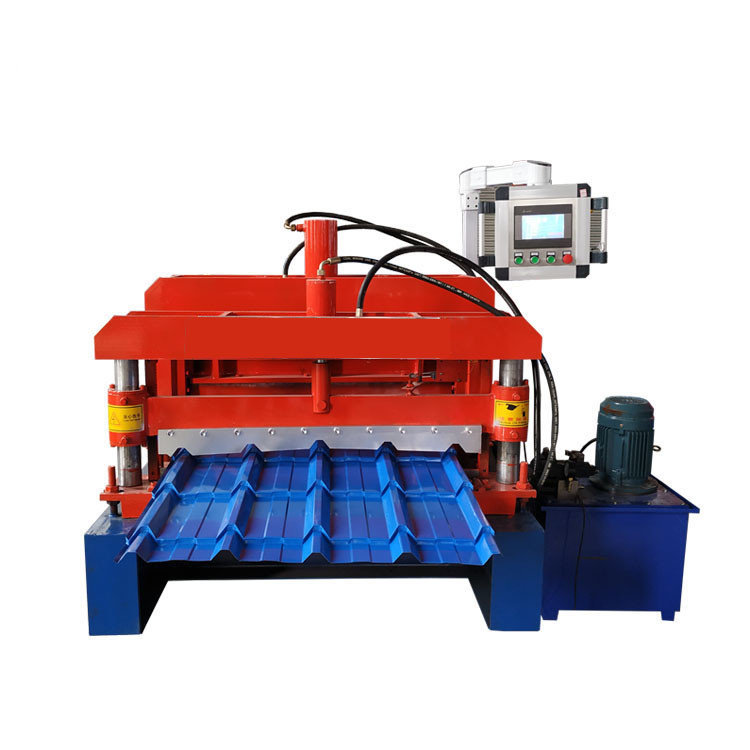

Customized Shape Profile Panel Metal Roll Forming Roof Sheet Making Machine



This machine can customize the tile length according to the requirements ,there is the construction of the computer controller to set up multiple sets of different data,easy operate.

The equipment automatically set in accordance with the computer data to produce different lengths of finished products.

Metal glazed tile is a new kind of building materials, the archaist sheet for roofing, like the wood one and clay one.The metal glazed tile roof sheet is more easy to install and using life time is more longer.With the market demand, the metal glazed tile roofing sheet is getting more popular.



Specification

Article No. Item Name Specification
1 Processing material Color steel coil, Galvanized coil, Aluminized zinc coil or as your customized
2 Processing thickness (mm) 0.3-0.8 mm
3 Material of rollers High grade 45# steel, Processed by CNC lathe, Hardening and tempering, polishing, hard chrome plated 0.05-0.07mm
4 Material of shafts 45# steel
5 Diameter of shafts 70mm or as your customized
6 Forming speed 3-4 m/min
7 Under frame 350 H-beam
8 Sidewall 16mm
9 Connect bar 25mm, zinc plated
10 Forming steps 11 stations
11 Control system Delta PLC and Inverter
12 Suitable power 380V, 50 Hz, 3 phase or according to your need
13 Drive mode Chain and sprocket, chain size 1 inch
14 Main motor 3.5 kw
15 Hydraulic pump station 4 kw
16 Cutting model Hydraulic profile cutting
17 Dimension of the machine 6.5m×1.5mm×1.5m
18 Weight of the machine 3.5 tons



Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation



Payment terms



40% in advance as down payment

60% is paid before the shipment is processed



Delivery



FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
