Steel Framing Channel Galvalume Strut Roll Forming Machine

Steel Framing Channel Galvalume Strut Roll Forming Machine

steel framing strut roll forming machine

galvalume strut roll forming machine

steel framing channel roll forming machine

Nguồn gốc:

Trung Quốc đại lục

Hàng hiệu:

CANGZHOU WILLING

Chứng nhận:

ISO CE

Số mô hình:

Máy xà gồ kênh hoàn toàn tự động

Liên hệ với chúng tôi
Yêu cầu báo giá
Chi tiết sản phẩm
Tên sản phẩm:
Dây chuyền tạo hình cuộn khung thép cường độ cao Hoạt động dễ dàng
Nguyên liệu thô:
Galvalume, mạ kẽm
Thành phần cốt lõi:
PLC, Động cơ, Vòng bi, Động cơ, Máy bơm
Năng lực sản xuất:
8-12M/phút
Điện áp:
380V 50Hz 3phase
Bảo hành:
1 năm
Điểm bán hàng chính:
Dễ dàng vận hành
Vật liệu của con lăn:
GCR15
Làm nổi bật:

steel framing strut roll forming machine

,

galvalume strut roll forming machine

,

steel framing channel roll forming machine

Điều khoản thanh toán và vận chuyển
Số lượng đặt hàng tối thiểu
1 bộ
Giá bán
negotiable
chi tiết đóng gói
FLC 40'
Thời gian giao hàng
30 ngày làm việc
Điều khoản thanh toán
L/c, t/t, d/a, d/p
Khả năng cung cấp
20 bộ mỗi tháng
Mô tả sản phẩm

High Strength Steel Framing Channel Strut Roll Forming Lines Easy Operation

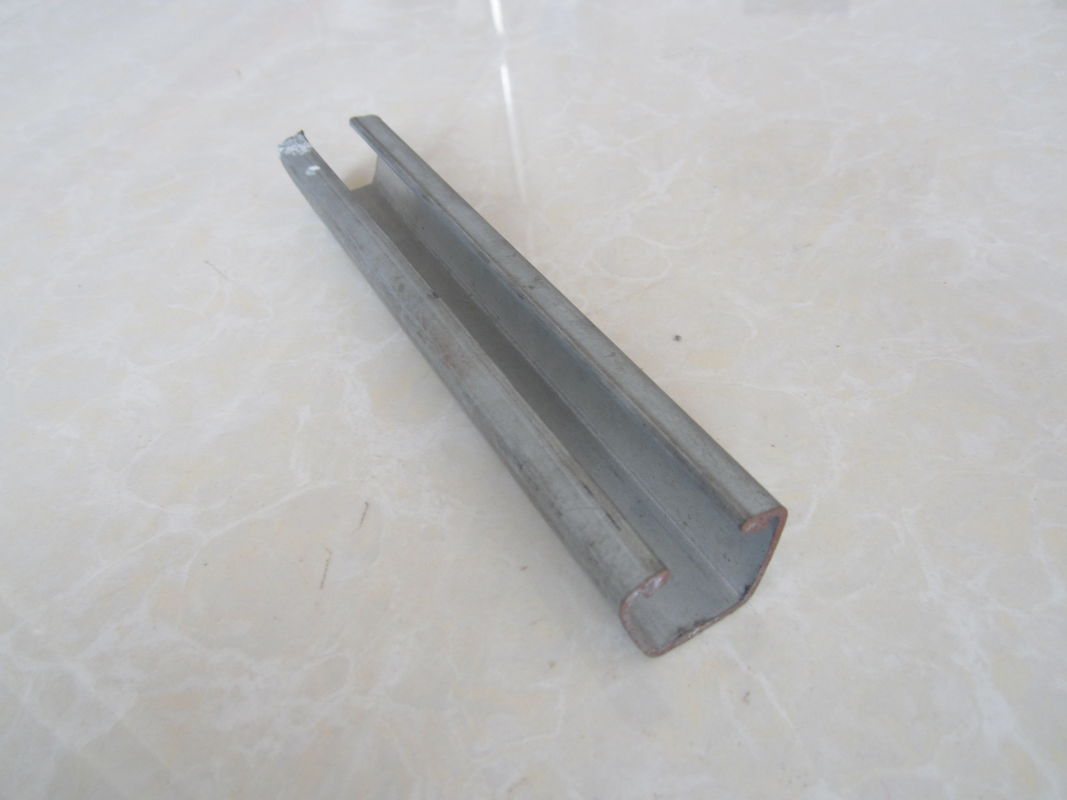

Channels are secondary steel framing members that serve as a receiver channel at the end of Zee Purlin. They can also be used for a number of other applications either alone or welded back-to-back. Available in red oxide or galvanized, Channels are standard at 20′ long, though some locations can cut to length.





Specification



1
Suitable to process
Color steel plate
2
Width of the purlin
80-300mm
3
Thickness of the plate
1.5-3mm
4
De-coiler
Manual one, can load 5 tons raw material
5
Rollers for forming
15 rows
6
Diameter of the roller
85 mm
7
Rolling material
Cr15
8
Main motor power
22kw
9
Material of the cutting blade
Cr12 mov
10
Hydraulic cutting power
22kw
11
Processing precision
Within 1.00mm
12
Control system
Delta PLC control



Guarantee



1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation



Payment terms



40% in advance as down payment

60% is paid before the shipment is processed



Delivery



FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.



Steel Framing Channel Galvalume Strut Roll Forming Machine 0
