Ppgi High Accuracy Shutter Door Roll Forming Machine Hydraulic Shears

Ppgi High Accuracy Shutter Door Roll Forming Machine Hydraulic Shears

gl automatic rolling shutter machine

ppgi shutter door roll forming machine

hydraulic shears shutter door rolling machine

Nguồn gốc:

Trung Quốc đại lục

Hàng hiệu:

FMS

Chứng nhận:

ISO CE

Số mô hình:

đáy cửa

Liên hệ với chúng tôi
Yêu cầu báo giá
Chi tiết sản phẩm
Tên sản phẩm:
Máy tạo hình cửa cuốn có độ chính xác cao Máy cắt thủy lực
Nguyên liệu thô:
PPGI,GI,PPGL GL
Tốc độ làm việc:
10-15m/phút
Độ dày vật liệu:
0,3mm - 0,8mm
Điện áp:
380V 50Hz 3phase
Cắt độ chính xác:
± 1mm
Công suất động cơ truyền động:
5kw
Sức mạnh trạm thủy lực:
5kw
Làm nổi bật:

gl automatic rolling shutter machine

,

ppgi shutter door roll forming machine

,

hydraulic shears shutter door rolling machine

Điều khoản thanh toán và vận chuyển
Số lượng đặt hàng tối thiểu
1 bộ
Giá bán
negotiable
chi tiết đóng gói
FLC 20'
Thời gian giao hàng
30 ngày làm việc
Điều khoản thanh toán
L/c, t/t, d/a, d/p
Khả năng cung cấp
20 bộ mỗi tháng
Sản phẩm liên quan
Liên hệ với chúng tôi
86-317-2016816
Liên hệ ngay
Mô tả sản phẩm

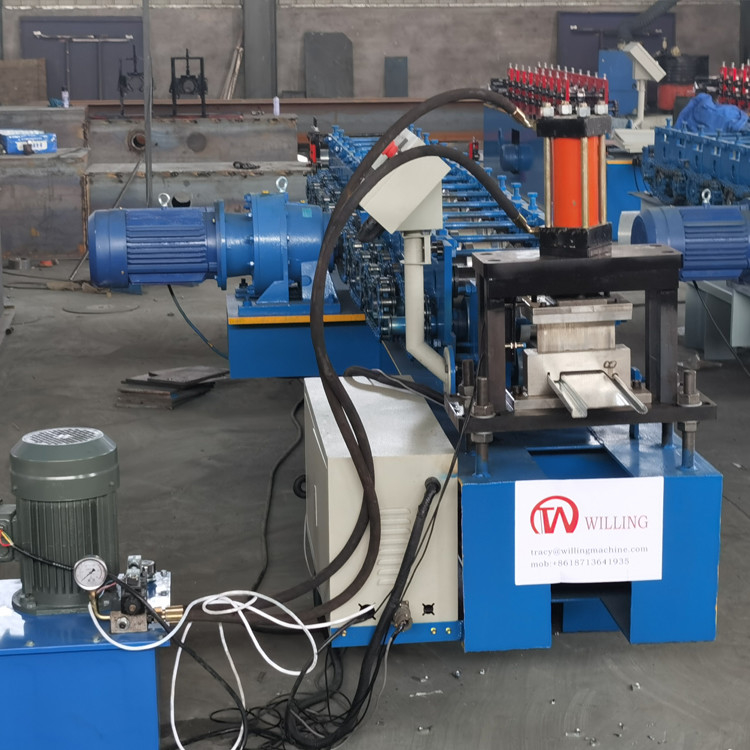

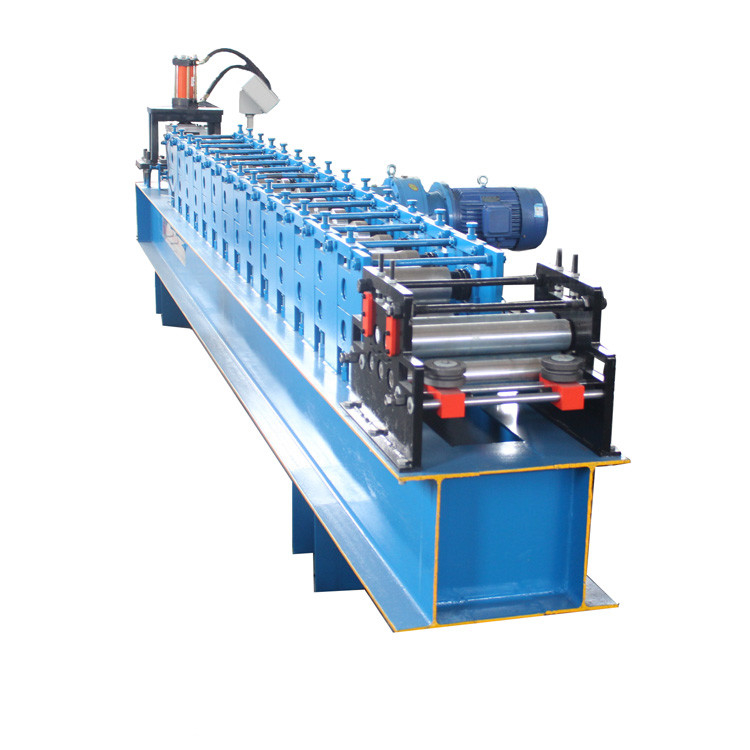

High Accuracy Shutter Door Bottom Roll Forming Machine Hydraulic Shears



The steel door bottom forming machine is controlled by the PLC control system to realize fully automatic operation. The machine language can be customized according to customer requirements. the products produced by this machine have high hardness, are not easily deformed, are corrosion-resistant, anti-oxidation, easy to maintain, and have a long service life, they are applicable to door frames, window frames, and slide rails of various products.

The rolling shutter door bottom forming machine is used in conjunction with the rolling shutter door strip forming machine. The finished product is widely used in the production of various doors, such as garage doors, fire-proof rolling shutter doors and the area isolation of medicine,cigarettes, printing, textiles, supermarkets and other light industrial plants.



Specification



1
Suitable to process
Color steel plate
2
Width of the plate
914mm/1000mm/1200mm/1220mm/1250mm
3
Thickness of the plate
0.3-0.8mm
4
Diameter of the roller
80mm
5
Rolling material
Carbon Steel 45#
6
Main motor power
5.5kw
7
Material of the cutting blade
Cr12 mov
8
Hydraulic cutting power
4kw
9
Processing precision
Within 1.00mm
10
Control system
Delta PLC control
11
Side panel of machine
16mm
12
Main structure of the machine
350 H steel
13
Voltage
380V 50Hz 3phases(changeable as needs)
14
Certificate
CE/ISO



Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation


Payment terms

40% in advance as down payment
60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
