Making 0.8mm Thickness Door Frame Roll Forming Machine 380V

door frame roll forming machine plc

door frame roll forming machine 380v

0.8mm thickness door frame making machine

Nguồn gốc:

Trung Quốc đại lục

Hàng hiệu:

FMS

Chứng nhận:

ISO CE

Liên hệ với chúng tôi

Yêu cầu báo giá

Chi tiết sản phẩm

Tên sản phẩm:

Máy tạo hình khung thép cửa kim loại dễ vận hành

Điện áp:

380V 50Hz 3 pha

vật liệu con lăn:

Xử lý dập tắt GCr15, Cr12, SKD11: HRC58-62 (tùy chọn)

Cân nặng:

khoảng 6 tấn

độ dày cán:

0,8-1,5mm

Hệ thống điều khiển:

PLC theo danh sách trong ghi chú

Sức mạnh thủy lực:

5,5kw

Làm nổi bật:

door frame roll forming machine plc

door frame roll forming machine 380v

0.8mm thickness door frame making machine

Điều khoản thanh toán và vận chuyển

Số lượng đặt hàng tối thiểu

1 bộ

Giá bán

negotiable

chi tiết đóng gói

FLC 20'

Thời gian giao hàng

30 ngày làm việc

Điều khoản thanh toán

L/c, t/t, d/a, d/p

Khả năng cung cấp

20 bộ mỗi tháng

Sản phẩm liên quan

Băng hình

Metal Chain Driving Shutter Door Roll Forming Machine Speed 20-30m/Min

Nhận được giá tốt nhất

Băng hình

Customized High Speed PU Door Roller Shutter Roll Forming Machine

Nhận được giá tốt nhất

Băng hình

3T Shutter Door Roll Forming Machine For 0.8-1.2mm Thickness And 6.5m0.95m1.2m Size

Nhận được giá tốt nhất

Băng hình

45 Steel Roller Material Shutter Door Roll Forming Machine with 7.5KW PLC Control System

Nhận được giá tốt nhất

Liên hệ với chúng tôi

86-317-2016816

Liên hệ ngay

Mô tả sản phẩm

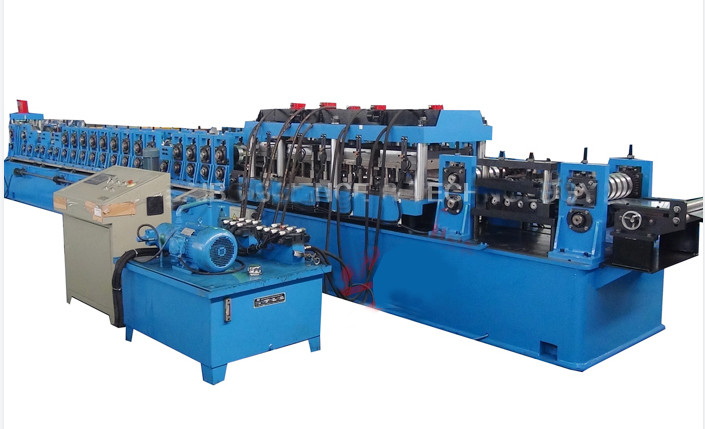

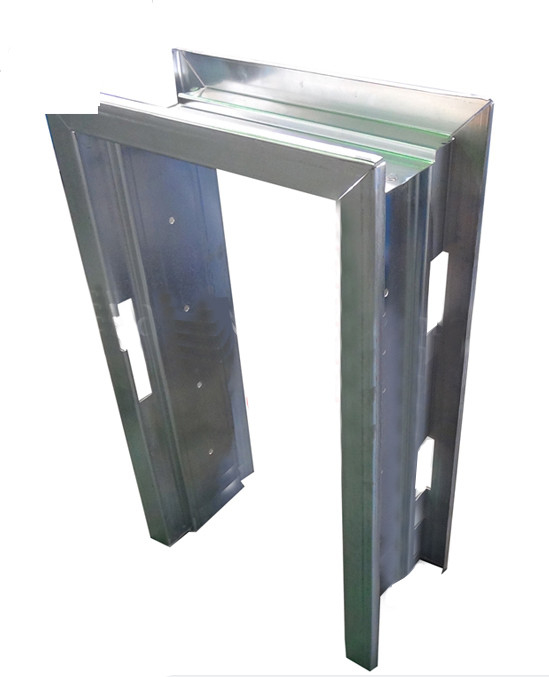

Metal Door Steel Frame Roll Making Forming Machine Easy To Operate

Easy to Operate Door Frame Making Line is cold-rolled into various wave-shaped pressed plates. It is suitable for industrial and civil buildings, warehouses, special buildings, roofs, walls and interior and exterior wall decoration of large-span steel structures. It has the characteristics of light weight, high strength, rich color, convenient and quick construction, anti-seismic, fireproof, rainproof, long life and maintenance-free. It has been widely used.

Specification

1	Coil width	295mm
2	Rolling speed	12-15m/min(not include cutting & punching time)
3	Rolling thickness	0.8-1.5mm GI, G550
4	Control system	PLC (Panasonic) as list in the note
5	Un Coiler	5T hydraulic decoiler
6	Leveling	Three rollers four
7	Punching	4 sets
8	Shaft Material and DIA	￠65mm, material is 45# forge steel
9	Roller stations	About 19 stations (according the final design)
10	Roller material	Gcr15, HRC55-60 surface coated with chrome
11	Post cutting	Hydraulic cutting after roll forming
12	Material Of Cutting	Cr12Mov quenching 58-62℃
13	Maim Motor Power	11kw
14	Hydraulic Station Power	5.5kw
15	Hydraulic Pressure	12-16Mpa adjustable
16	Sturcture Of The Stations	Wire-electrode cutting
17	Electric Source	380V, 50HZ,3 phase According to customer's require
18	Way Of Drive	By chain

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
