Square Copper 0.6mm Downspout Pipe Forming Machine 3 Phases

Square Copper 0.6mm Downspout Pipe Forming Machine 3 Phases

copper downspout pipe forming machine

3 phases downspout pipe forming machine

0.6mm downspout pipe roll forming machine

Nguồn gốc:

Trung Quốc đại lục

Hàng hiệu:

CANGZHOU FMS

Chứng nhận:

ISO CE

Số mô hình:

đường xuống

Liên hệ với chúng tôi
Yêu cầu báo giá
Chi tiết sản phẩm
Tên sản phẩm:
Máy tạo hình ống cuộn ống xả chất lượng cao BD
Nguyên liệu thô:
Galvalume, mạ kẽm, PPGI, Nhôm, Đồng
Điện áp:
380V 50Hz 3phase
Hệ thống điều khiển:
PLC
Bảo hành:
1 năm
độ dày cán:
0,4-0,6mm
Cân nặng:
5 kg
Năng lực sản xuất:
15m/phút (không bao gồm thời gian cắt)
Làm nổi bật:

copper downspout pipe forming machine

,

3 phases downspout pipe forming machine

,

0.6mm downspout pipe roll forming machine

Điều khoản thanh toán và vận chuyển
Số lượng đặt hàng tối thiểu
1 bộ
Giá bán
negotiable
chi tiết đóng gói
FLC 20'
Thời gian giao hàng
30 ngày làm việc
Điều khoản thanh toán
L/c, t/t, d/a, d/p
Khả năng cung cấp
20 bộ mỗi tháng
Mô tả sản phẩm

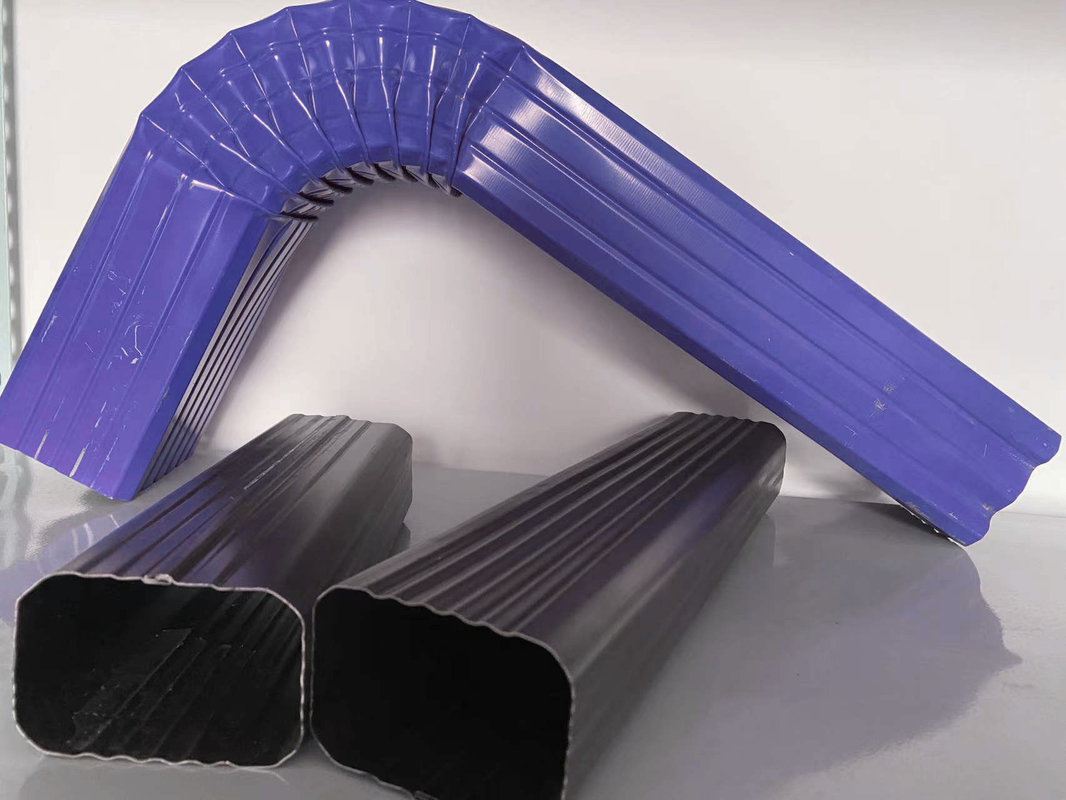

BD High Quality Downspout Pipe Roll Forming Machine Square



The most common downspout for use with Style A, and Style D gutters systems.Collect roof rainwater and lead it to the rainwater pipe laid below the ground.The application of steel downpipe makes steel building integrity stronger, there are a variety of elbow and downpipe matching, more complex walls are also suitable.

Common specifications for round tubes are 40mm, 50 mm, 75 mm, 90 mm, 110 mm, 150 mm, 200 mm, 250 mm, 315 mm, 400 mm, 500 mm, etc. Common specifications of the square tube are 80mm*55mm, 80mm*63mm, 80mm*100mm, etc.








Specification

No.
Item
Description
1
Coil width
According to the final profile
2
Rolling speed
0-15m/min
3
Rolling thickness
0.4-0.6mm
4
Control system
PLC (Panasonic) as list in the note
5
Un Coiler
3T manual de-coiler
6
Roller Stations
20 stations
7
Roller Material
ASTM1045 chrome plated surface with chrome
8
Shaft Material and DIA
¢65mm, material:45# with quenching and tempering
9
Post cutting
Machine adopts hydraulic cutting system
10
Material Of Cutting
Cr12, 58-62 HRC hardness
11
Maim Motor Power
5.5kw
12
Hydraulic Station Power
5.5kw
13
Hydraulic pressure
12-16Mpa adjustable
14
Structure Of The Stations
Wall panel
15
Bending machine
With Main machine together

Guarantee



1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation



Payment terms



40% in advance as down payment

60% is paid before the shipment is processed



Delivery



FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.

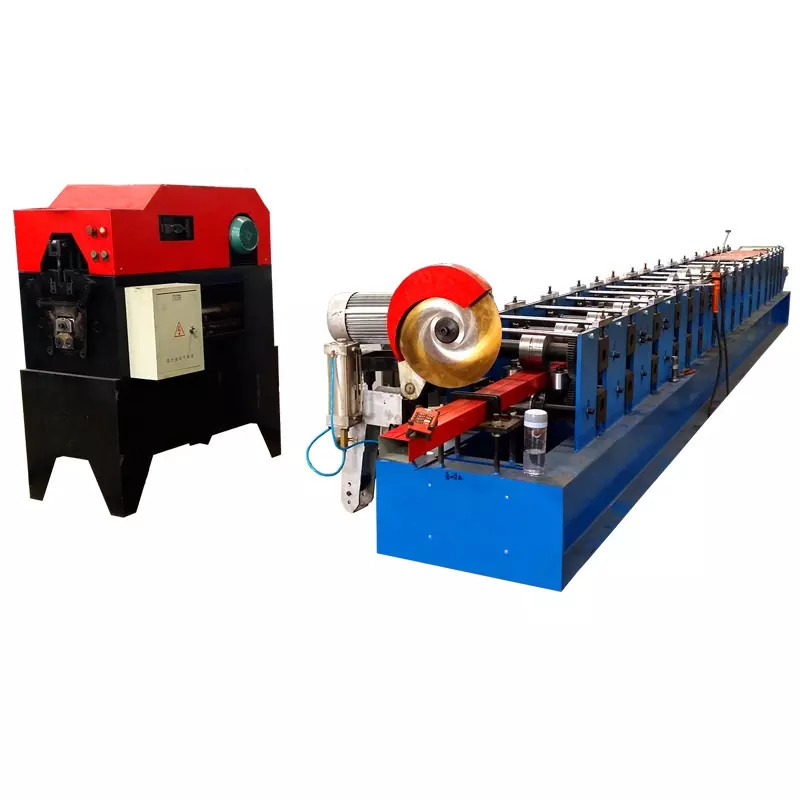

Square Copper 0.6mm Downspout Pipe Forming Machine 3 Phases 0
