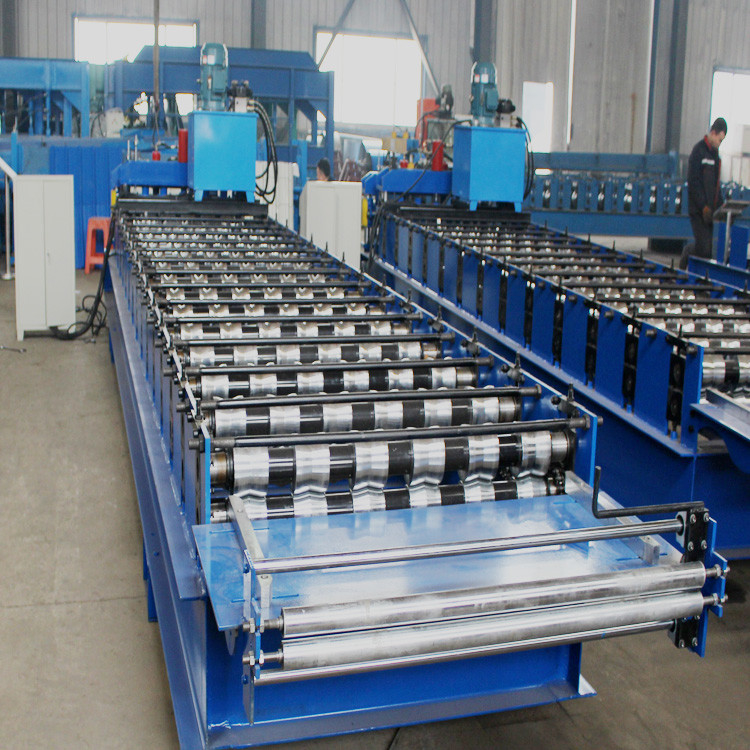

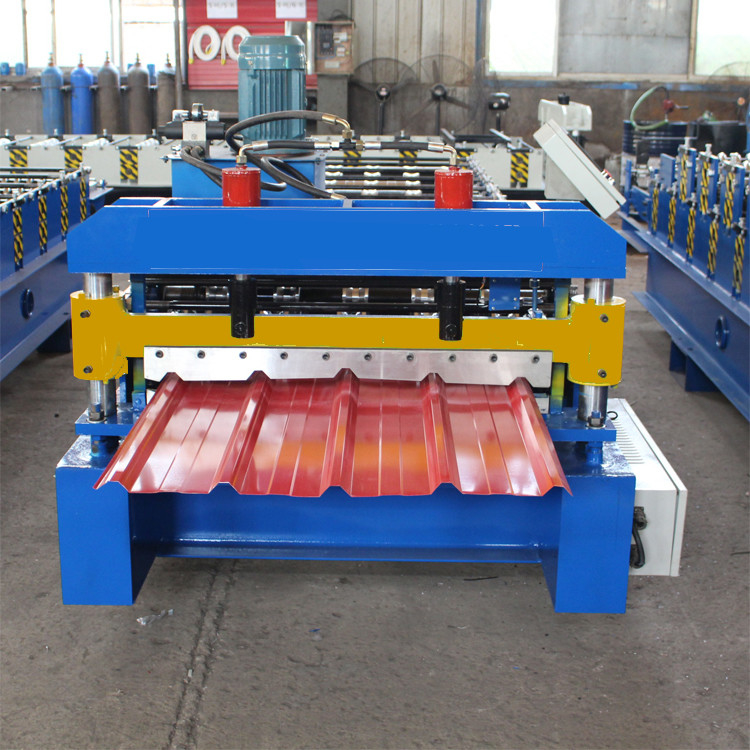

840 Trapezoidal Panel Ibr Roof Roll Forming Machine Cold Pressed
840 trapezoidal sheet roll forming machine popular sell in many countries. After rolling product width is 840mm, Material common is PPGI material, material thickness common between 0.3-0.8 mm.According to customer’s requirement, the technical parameters of the roll forming machine are different.The design of the roll forming machine is convenient to adjust, for it owns reasonable structure,compact shape, high precision and high efficiency.Corrosion resistance, aging resistance and long service life, the service life of the color steel press type equipment is longer than other's.
Specification
| No. | Item | Description |
| 1 | Coil | Galvalume, Galvanized, PPGI, Aluminum |
| 2 | Rolling thickness | 0.2-0.8mm |
| 3 | Working Speed | 20-25m/min ( not including the cutting time) |
| 4 | Roller Station | 12 Raws |
| 5 |
Dimension (L*W*H) |
52000 mm*1500 mm*1100 mm |
| 6 |
Electrical Control System |
Delta PLC (can be customized) |
| 7 |
Drive Motor Power |
4KW |
| 8 |
Hydraulic Station Power |
4KW |
| 9 |
Power Supply |
380V, 60HZ, 3 PHASES(can be customized) |
| 10 |
Cutting Accuracy |
±2 mm |
| 11 |
Driving Mode |
Single Chain 1 inch |
| 12 |
Material of Shaft |
70 mm 45#steel forged |
| 13 | Material of Roller |
45# Steel Finish Machining, Plated Hard |
