High Speed PPGI Glazed Tile Cold Roll Forming Machine Hydraulic Cutting

High Speed PPGI Glazed Tile Cold Roll Forming Machine Hydraulic Cutting

ppgi glazed tile cold roll forming machine

hydraulic glazed tile cold roll forming machine

hydraulic cutting glazed roll forming machine

Nguồn gốc:

Trung Quốc đại lục

Hàng hiệu:

CANGZHOU FMS

Chứng nhận:

ISO CE

Số mô hình:

Ngói Met / Ngói tráng men

Liên hệ với chúng tôi
Yêu cầu báo giá
Chi tiết sản phẩm
Tên sản phẩm:
Máy cán ngói tráng men Cắt thủy lực tốc độ cao
Nguyên liệu thô:
Galvalume, mạ kẽm, PPGI, nhôm, đồng
Điện áp:
380v
Sử dụng:
Bảng điều khiển mái nhà
Bảo hành:
1 năm
Độ dày vật liệu:
0,25-0,8 mm
Điện thủy lực:
4 kW
Cắt độ chính xác:
±2 mm
Làm nổi bật:

ppgi glazed tile cold roll forming machine

,

hydraulic glazed tile cold roll forming machine

,

hydraulic cutting glazed roll forming machine

Điều khoản thanh toán và vận chuyển
Số lượng đặt hàng tối thiểu
1 bộ
Giá bán
negotiable
chi tiết đóng gói
FLC 40'
Thời gian giao hàng
35 ngày làm việc
Điều khoản thanh toán
L/c, t/t, d/a, d/p
Khả năng cung cấp
20 bộ mỗi tháng
Sản phẩm liên quan
Liên hệ với chúng tôi
86-317-2016816
Liên hệ ngay
Mô tả sản phẩm

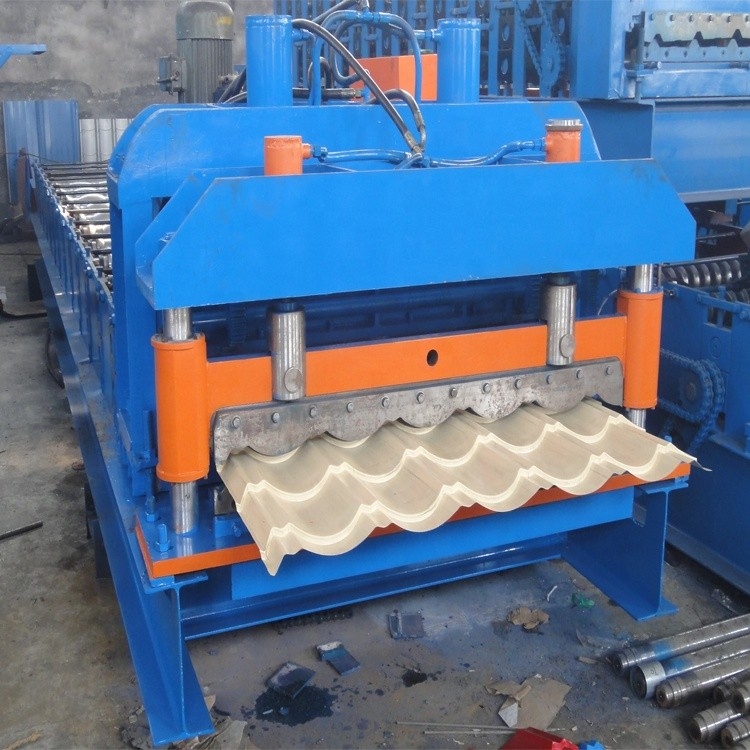

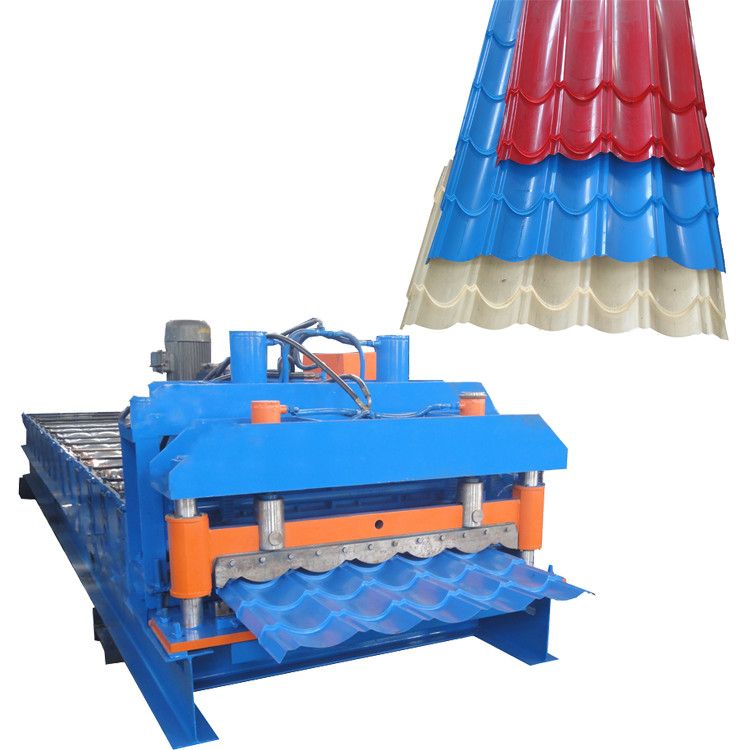

Glazed Tile Roll Forming Machine High Speed Hydraulic Cutting



Roofing colored steel tile, also known as: colored pressing tile, is the use of color coating steel plate, cold bending through the roll into a variety of wave plate.

It is applicable to the industrial and civil buildings, warehouses, special buildings, large span steel structure of the roof, walls and interior and exterior decoration, with light, high strength, rich color, construction convenient and fast, seismic, fire, rain, long life, maintenance free and other characteristics, has been widely promoted and applied.





Profile



Specification



Material Thickness
0.25-0.8 mm
Working Speed
8-15m/min
Main servo
5.5kw
Hydraulic Station Power
4 kw
Electrical Control System
PLC
Suitable Material
PPGI (235Mpa)
Material of Cutter
Cr12
Driving Mode
single chain 1 inch
Cutting accuracy
±2 mm
Power Supply
380 V, 60 HZ, 3 PHASES
Hydraulic Station Pressure
12.0 Mpa





Guarantee



1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation



Payment terms



40% in advance as down payment

60% is paid before the shipment is processed



Delivery



FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
