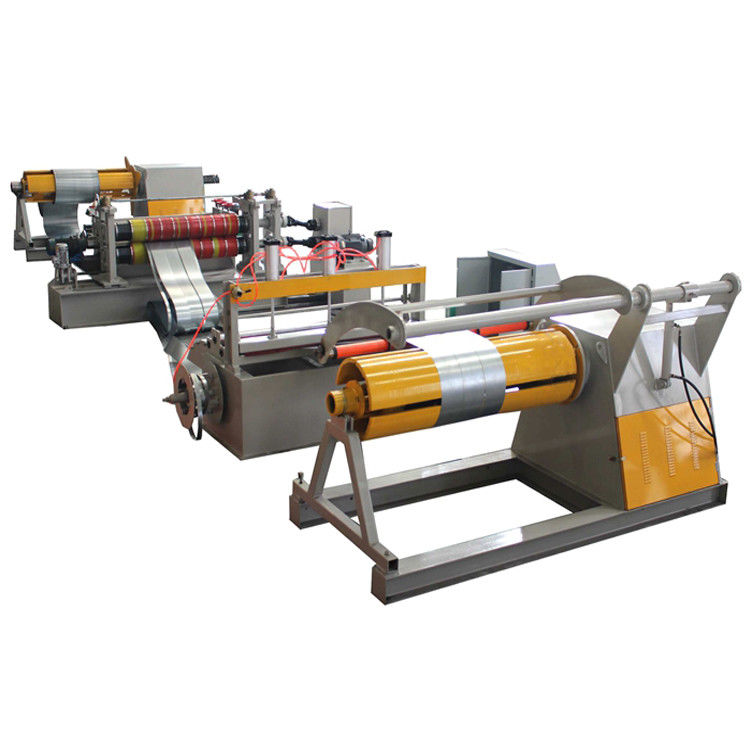

Sheet Coil Cutting Machine Slitting Line Metal 0.5 - 2 Mm
Coil machine cutting line is a lengthway cutting line for devide the metal coil into several strips.
First,slitting line will uncoil the coil with a decoiler, then cut the metal sheet longitudinal.Next, the tension stand can separating the steel coil to adapt the recoiler.That can make the steel coil has back pull power.In the end, the strips can be recoil into the recoiler system.
About our metal sheet coil cutting machine slitting line
1. It is restricted to cutting relatively thin metal materials and then to narrow strips for easy using.
2. It can involve both ferrous and nonferrous metals.
3. Generally requires a high quality production tool to assure consistent quality in controlling metal width.
4. Slitting blades are designed depending on the job required. By the spacer adjustment, and cutting balde adjustment, you can make small thin coil.
Technical parameter
Material thickness
| Raw material | GI/ carbon steel |
| Material thickness | 0.25-2 mm(as your request) |
| Coil weight | ≤ 10 Tons |
| Coil width | 500-1500 mm |
| Cutter shaft diameter | Φ 150 mm |
| Cutter shaft materia | 40 Cr with tempering treatment |
| Cutter material | 9CrSi |
