Garage Door Roll Forming Lines For Sale In Uk

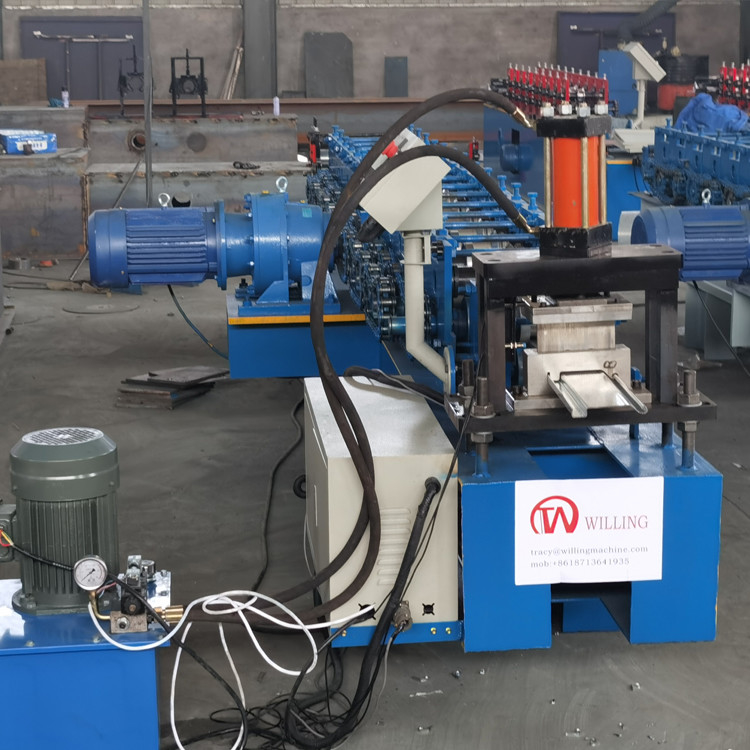

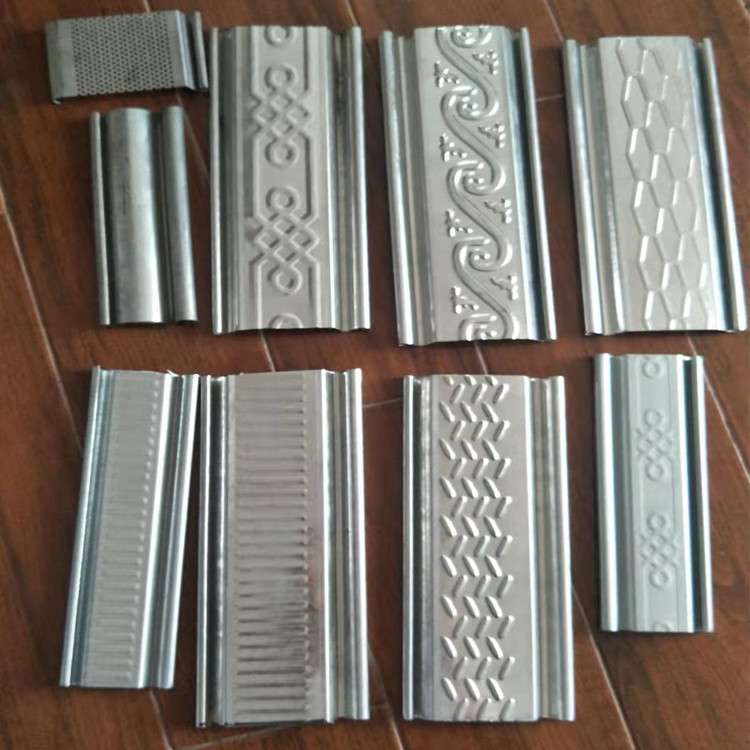

The steel door bottom forming machine is controlled by the PLC control system to realize fully automatic operation. The machine language can be customized according to customer requirements. the products produced by this machine have high hardness, are not easily deformed, are corrosion-resistant, anti-oxidation, easy to maintain, and have a long service life, they are applicable to door frames, window frames, and slide rails of various products.
Specification
| No. | Item | Description |
| 1 | Coil | Galvalume, Galvanized |
| 2 | Raw Material Thickness | 0.25 mm - 0.9 mm |
| 3 | Working Speed | 10-15 m/min |
| 4 | Roller Station | 12 Stations |
| 5 |
Dimension (L*W*H) |
5500 mm*800 mm*1200 mm |
| 6 | Machine Weight | 4000 KG |
| 7 |
Electrical Control System |
PLC |
| 8 |
Power Supply |
380V, 50HZ, 3 PHASES(can be customized) |
| 9 |
Cutting Accuracy |
± 1 mm |
| 10 |
Driving Mode |
Gear Wheel |
| 11 |
Material of Shaft |
60 mm 45#steel forged |
| 12 | Material of Roller |
45# Steel Finish Machining, Plated Hard |
Payment terms
40% in advance as down payment
60% is paid before the shipment is processed
Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 20 days after the down payment is received.
