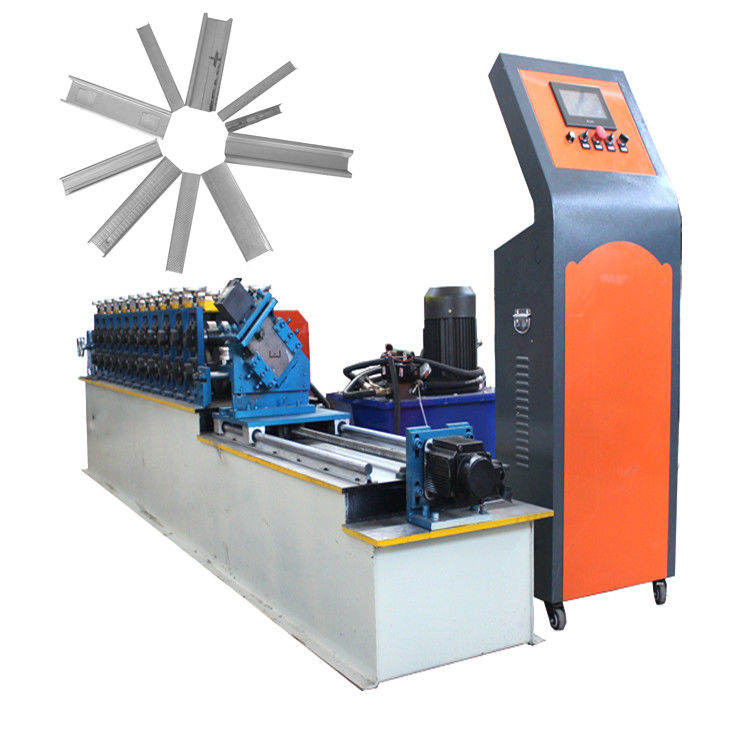

Customized Light Gauge Stud And Track Roll Forming Lines Automatic
The Multi-Plex Structural Steel Framing roll forming line is unique to the industry, having the ability to change profile dimensions in minutes without the requirement for tooling or spacer changes.
Unlike traditional framing machine designed as dedicated to one size, the mill allows infinite changes to profile sizes between minimum and maximum. The machine’s ability to run structural heavy duty track and studs as well as conventional sizes minimizes the requirement for trussing base supports.
| No. | Item | Description |
| 1 | Coil | Galvalume, Galvanized, PPGI, Aluminum |
| 2 | Raw Material Thickness | 0.3mm-0.8mm |
| 3 | Working Speed | 10-15/min |
| 4 | Roller Station | 12 Raws |
| 5 |
Cr-Plating Size |
0.05mm |
| 6 | Cutter Standard | Cr12 |
| 7 |
Electrical Control System |
PLC |
| 8 |
Main Power |
5.5KW |
| 9 |
Power Supply |
380V/50HZ/3 PH |
| 10 |
Cutting Accuracy |
±2 mm |
| 11 |
Driving Mode |
Single Chain 1 inch |
| 12 |
Main Frame |
350mm H-Beam |
Payment terms
40% in advance as down payment
60% is paid before the shipment is processed
Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 20 days after the down payment is received.
