Automatic Roofing Tile PPGI Color Steel Roll Forming Machine 0.3-0.8mm

Automatic Roofing Tile PPGI Color Steel Roll Forming Machine 0.3-0.8mm

0.3mm color steel roll forming machine

ppgi color steel roll forming machine

0.8mm roofing tile roll forming machine

Nguồn gốc:

Trung Quốc đại lục

Hàng hiệu:

CANGZHOU FMS

Chứng nhận:

ISO CE

Liên hệ với chúng tôi
Yêu cầu báo giá
Chi tiết sản phẩm
Tên sản phẩm:
Máy tạo hình cuộn thép màu lợp ngói tự động 0,3-0,8mm
Điện áp:
380V 50Hz 3phase
Hệ thống điều khiển:
PLC
Thời gian giao hàng:
45 ngày làm việc
Tự động hóa:
Tự động đầy đủ
Bảo hành:
1 năm
độ dày cán:
0,3-0,8mm
Chiều rộng cho ăn:
1220mm
Làm nổi bật:

0.3mm color steel roll forming machine

,

ppgi color steel roll forming machine

,

0.8mm roofing tile roll forming machine

Điều khoản thanh toán và vận chuyển
Số lượng đặt hàng tối thiểu
1 bộ
Giá bán
negotiable
chi tiết đóng gói
FLC 40'
Thời gian giao hàng
30 ngày làm việc
Điều khoản thanh toán
L/c, t/t, d/a, d/p
Khả năng cung cấp
20 bộ mỗi tháng
Sản phẩm liên quan
Liên hệ với chúng tôi
Liên hệ ngay
Mô tả sản phẩm

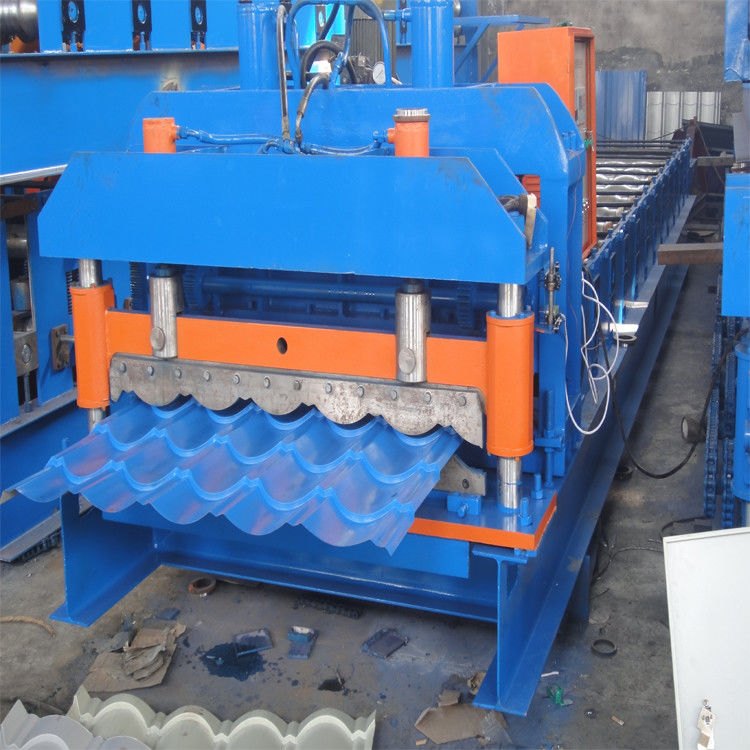

Automatic Roofing Tile Color Steel Roll Forming Machine 0.3-0.8mm

Our Full automatic PPGI Versatile Versa tile roofing tile color steel roll forming machine 0.3-0.8mm for different models based on different designs or customer's samples .

Caigang watts corrugated sheet roll forming machine roofing sheet making machine

The machine is used to construct external roofing & wall panels of houses & interior panels or ceilings to enhance the appearance of the roof or walls

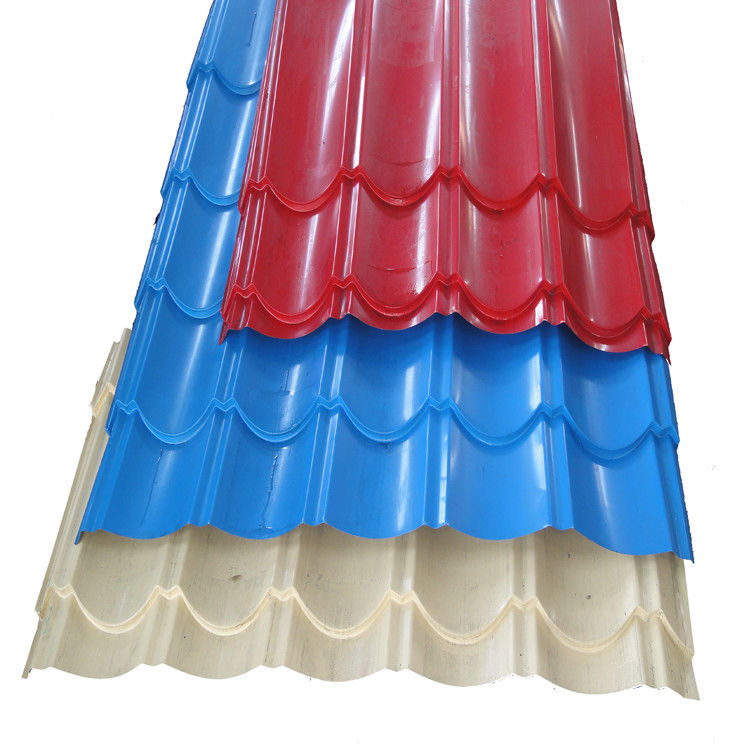

Profile



Automatic Roofing Tile PPGI Color Steel Roll Forming Machine 0.3-0.8mm 0

Specification

1.Formed Material
PPGI,GI,AI
Thickness:0.3-0.8mm Width:1000mm/1250mm(customized)
2.Decoiler
Hydraulic automatic decoiler
Manual decoiler(will give you as free)
3.Main body
Roller station
13 rows(As your requirement)
Diameter of shaft
80mm solid shaft
Material of rollers
45# steel, hard chrome plated on the surface
Machine body frame
350 H steel
Drive
Chain transmission
Weight
5.8T
4.Cutter
Automatic
cr12mov material, no scratches, no deformation
5.Power
Motor Power
5.5KW
Hydraulic system power
5.5KW
6.Voltage
380V 50Hz 3Phase
As your requirement





Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation



Payment terms

40% in advance as down payment
60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
