Low Noise Glazed Plc Roof Tile Roll Forming Machine For Color Ppgi Steel

Low Noise Glazed Plc Roof Tile Roll Forming Machine For Color Ppgi Steel

plc roof tile roll forming machine

ppgi roof tile roll forming machine

plc color steel roll forming machine

Nguồn gốc:

Trung Quốc đại lục

Hàng hiệu:

CANGZHOU FMS

Chứng nhận:

ISO CE

Liên hệ với chúng tôi
Yêu cầu báo giá
Chi tiết sản phẩm
Tên sản phẩm:
Máy làm mái ngói tráng men có độ ồn thấp Thép màu
Dịch vụ hậu mãi được cung cấp:
Các kỹ sư có sẵn cho máy móc dịch vụ ở nước ngoài, hỗ trợ kỹ thuật video, hỗ trợ trực tuyến, dịch vụ
Năng lực sản xuất:
3-5m/phút
Điện áp:
380V 50Hz 3phase
Hệ thống điều khiển:
PLC
Cân nặng:
5,8t
Thời gian giao hàng:
45 ngày làm việc
Tự động hóa:
Tự động đầy đủ
Làm nổi bật:

plc roof tile roll forming machine

,

ppgi roof tile roll forming machine

,

plc color steel roll forming machine

Điều khoản thanh toán và vận chuyển
Số lượng đặt hàng tối thiểu
1 bộ
Giá bán
negotiable
chi tiết đóng gói
FLC 40'
Thời gian giao hàng
30 ngày làm việc
Điều khoản thanh toán
L/c, t/t, d/a, d/p
Khả năng cung cấp
20 bộ mỗi tháng
Sản phẩm liên quan
Liên hệ với chúng tôi
Liên hệ ngay
Mô tả sản phẩm

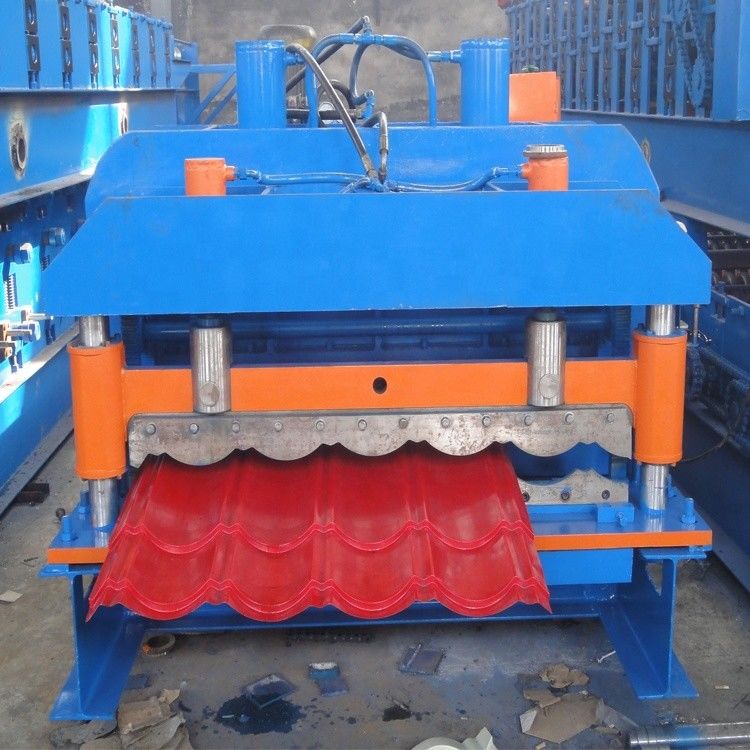

Low Noise Glazed Roof-Tile Making Machine Color Steel

Our Full automatic PPGI Versatile Versa tile roofing tile color steel roll forming machine 0.3-0.8mm for different models based on different designs or customer's samples . It is a machine produce building material of metal roof, the products are widely used as the roof and wall of factory,warehouse, garage, gymnasium, exhibition center.It has many advantages, such as easy installation, short building period, beauty, light weight but high strength.



ADVANTAGES OF OUR ROLL-FORMERS AS A START-UP COMPANY

Simple manufacturing process (one manufacturing process).

Easy administration (very few product lines and variations).

High demand for product.

Easy to market.

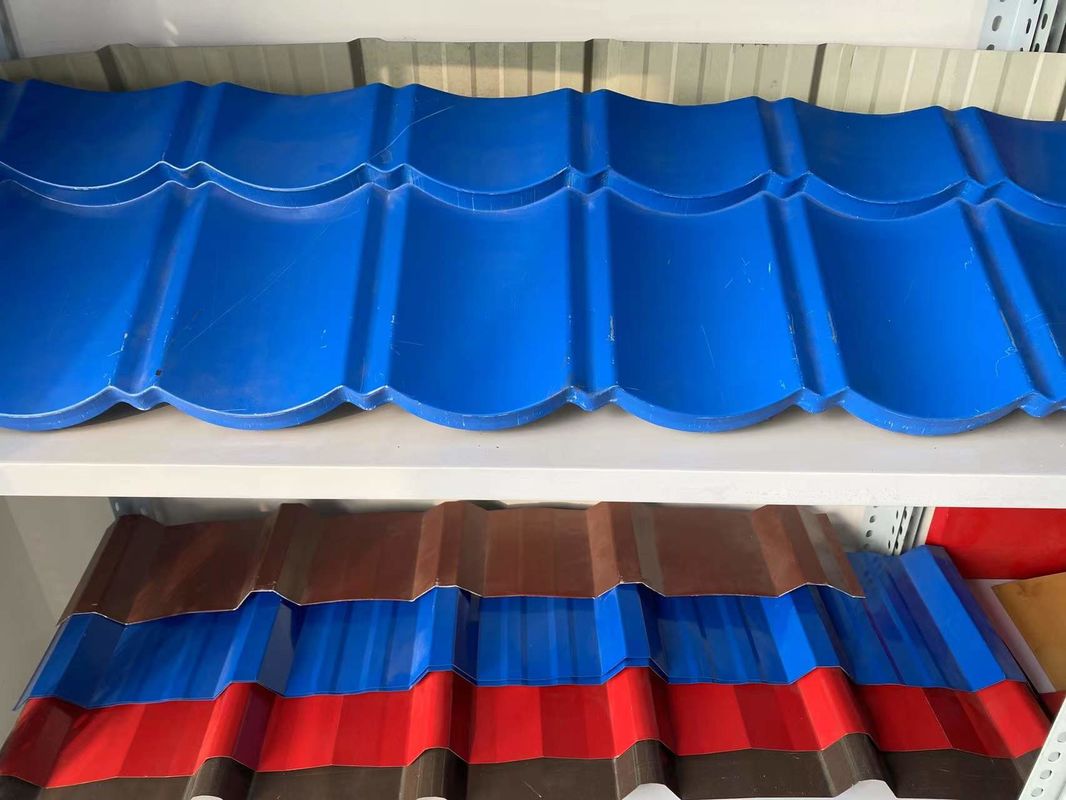

Profile
Low Noise Glazed Plc Roof Tile Roll Forming Machine For Color Ppgi Steel 0

Specification

1.Formed Material
PPGI,GI,AI
Thickness:0.3-0.8mm Width:1000mm/1250mm(customized)
2.Decoiler
Hydraulic automatic decoiler
Manual decoiler(will give you as free)
3.Main body
Roller station
13 rows(As your requirement)
Diameter of shaft
80mm solid shaft
Material of rollers
45# steel, hard chrome plated on the surface
Machine body frame
350 H steel
Drive
Chain transmission
Weight
5.8T
4.Cutter
Automatic
cr12mov material, no scratches, no deformation
5.Power
Motor Power
5.5KW
Hydraulic system power
5.5KW
6.Voltage
380V 50Hz 3Phase
As your requirement





Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation



Payment terms

40% in advance as down payment
60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
