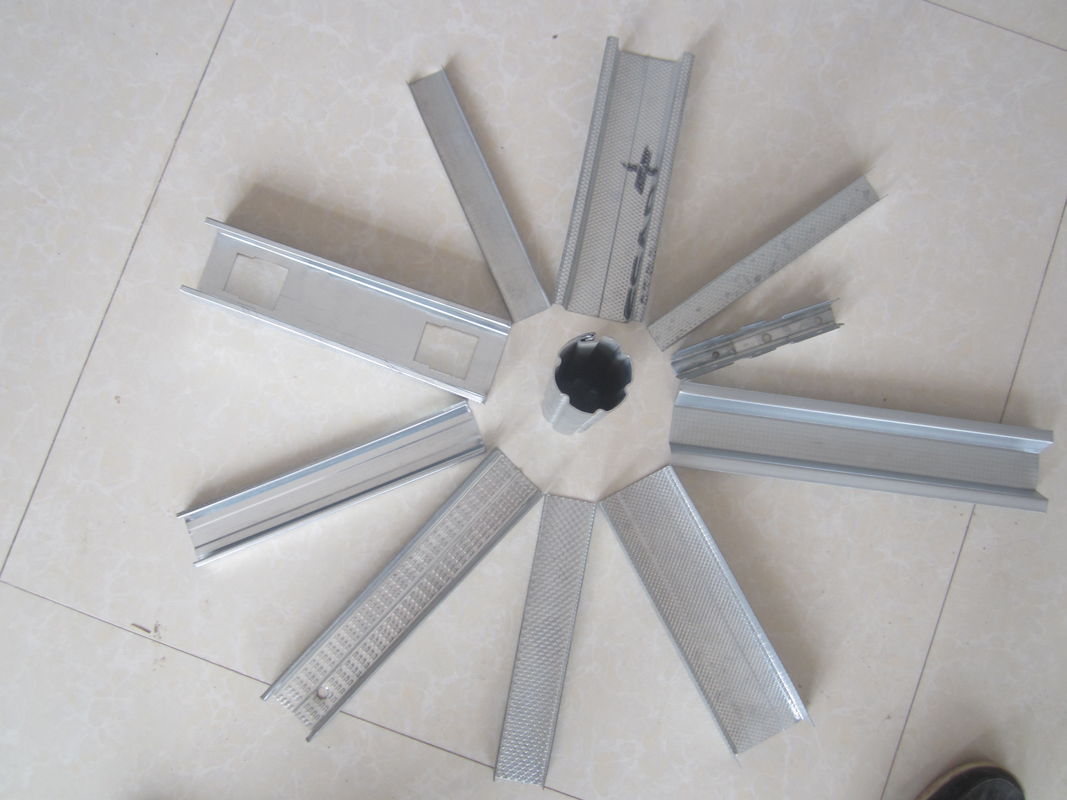

High Speed Light Steel Keel Dry Wall U Channel Roll Forming Machine For Egypt
This wall stud roll forming machine produces multi-profiles and size-changing by the spacer. In fact, it is multi size wall stud and tracks machine for multi-profiles,size-changing by the spacer.There is an enlarged hydraulic station to ensure high-speed working. Easy operation, low maintenance cost
Equipment Detailed Parameters:
|
NO.
|
Item
|
Specification
|
|
Material
|
Raw material
|
Galvanized steel
|
|
Thickness
|
0.3-0.8 mm
|
|
|
Machine
|
Roller station
|
9
|
|
Shaft diameter
|
55 mm
|
|
|
Solid shaft material
|
High grade 45# steel with Cr12 mov coated,
quenching & tempering & treatment
|
|
|
Roller material hardness 30-40 HRC
|
Cr12
|
|
|
Machine size
|
About 4.2*0.8*1 m
|
|
|
Machine weight
|
About 1.5 tons
|
|
|
Machine color
|
As customer need
|
|
|
Working speed
|
30-50 m/min
|
|
|
Cutter
|
Hardness
|
50-65 HRC
|
|
Cutting tolerance
|
± 1mm
|
|
|
Material
|
Cr12
|
|
|
Operate
|
Hydraulic cutting
|
|
|
Power
|
Driving way
|
Chain 1 inch
|
|
Main motor
|
4 KW
|
|
|
Pump motor for cutter
|
3 KW
|
|
|
Voltage
|
380V/50HZ, 3P or Customized as customer' request
|
|
|
|
PLC brand
|
Delta made in Taiwan
|
|
Screen
|
Touchable screen
|
|
|
Language
|
Chinese and English or add customer need language
|
|
|
|
Operation
|
Manual
|
|
Weight capacity
|
3 Tons
|
|
|
Price
|
Free as gift
|
