Glaze Tile Molding Ppgi High Speed Roll Forming Machine 380v

Glaze Tile Molding Ppgi High Speed Roll Forming Machine 380v

ppgi high speed roll forming machine

380v high speed roll forming machine

ppgi tile roll forming machine

Nguồn gốc:

Trung Quốc đại lục

Hàng hiệu:

CANGZHOU FMS

Chứng nhận:

ISO CE

Số mô hình:

Ngói Met / Ngói tráng men

Liên hệ với chúng tôi
Yêu cầu báo giá
Chi tiết sản phẩm
Tên sản phẩm:
Máy cán ngói Met / Glaze của Hoa Kỳ tốc độ cao
Nguyên liệu thô:
Galvalume, mạ kẽm, PPGI, nhôm, đồng
Điện áp:
380v
Sử dụng:
Bảng điều khiển mái nhà
Bảo hành:
1 năm
Độ dày vật liệu:
0,25-0,8 mm
Điện thủy lực:
4 kW
Cắt độ chính xác:
±2 mm
Làm nổi bật:

ppgi high speed roll forming machine

,

380v high speed roll forming machine

,

ppgi tile roll forming machine

Điều khoản thanh toán và vận chuyển
Số lượng đặt hàng tối thiểu
1 bộ
Giá bán
negotiable
chi tiết đóng gói
FLC 40'
Thời gian giao hàng
35 ngày làm việc
Điều khoản thanh toán
L/c, t/t, d/a, d/p
Khả năng cung cấp
20 bộ mỗi tháng
Sản phẩm liên quan
Liên hệ với chúng tôi
86-317-2016816
Liên hệ ngay
Mô tả sản phẩm

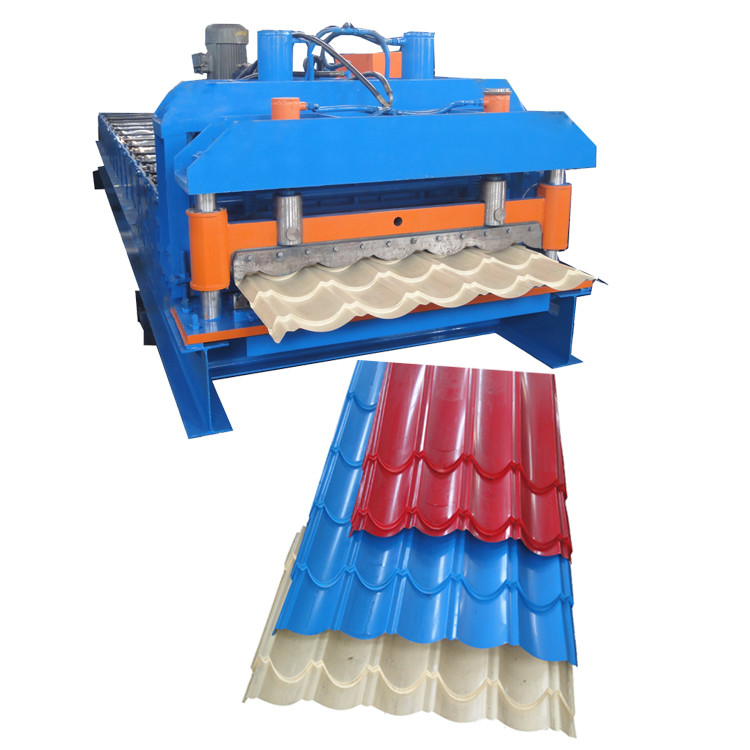

USA Met / Glaze Tile Rolling Molding Machine High Speed



Because Met-Tile is a panelized roofing system, installation requires a fraction of the time required by the installation of real ceramic tiles.

Met-Tile roofing panel provides the appearance of tile roofing with all the advantages and performance of metal. Met-Tile is lightweight, energy efficient and aesthetically attractive. A Met-Tile roof looks so much like tile, most people are surprised to learn that they are actually metal roof tiles.

Metal roof tiles with “steps” are rollformed using a rollforming machine from pre-painted steel and Galvanized steel. The Step Tile is formed using pre-painted steel and Galvanized steel.

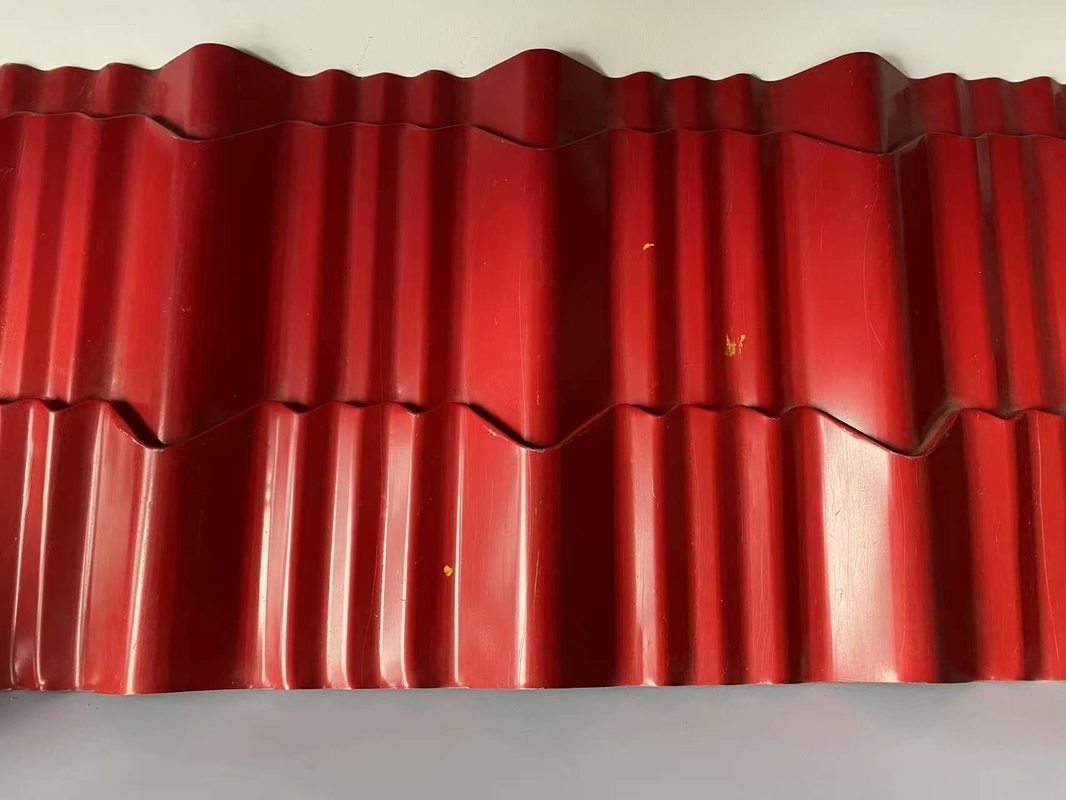

Profile

Glaze Tile Molding Ppgi High Speed Roll Forming Machine 380v 0

Specification



Material Thickness
0.25-0.8 mm
Working Speed
8-15m/min
Main servo
5.5kw
Hydraulic Station Power
4 kw
Electrical Control System
PLC
Suitable Material
PPGI (235Mpa)
Material of Cutter
Cr12
Driving Mode
single chain 1 inch
Cutting accuracy
±2 mm
Power Supply
380 V, 60 HZ, 3 PHASES
Hydraulic Station Pressure
12.0 Mpa





Guarantee



1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation



Payment terms



40% in advance as down payment

60% is paid before the shipment is processed



Delivery



FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
