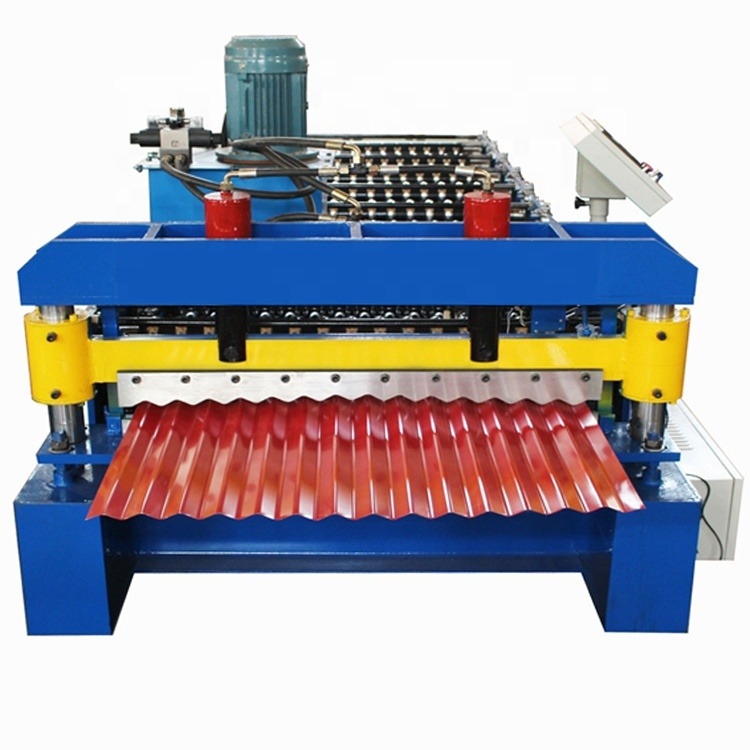

Corrugated Sheet Machine Corrugated Roofing Forming Machine
840 trapezoidal sheet roll forming machine popular sell in many countries. After rolling product width is 840mm, Material common is PPGI material, material thickness common between 0.2-0.8 mm
The machine is easy to operate and can be operated independently by one or two workers. The color panels produced by it have a smooth appearance, no burrs, high strength, and durability.
| No. | Item | Description |
|---|---|---|
| 1 | Coil | Galvalume, Galvanized, PPGI, Aluminum |
| 2 | Rolling thickness | 0.2-0.8mm |
| 3 | Working Speed | 15-20m/min ( not including the cutting time) |
| 4 | Roller Station | 12 Raws |
| 5 | Dimension (L*W*H) | 58000 mm*1200 mm*1100 mm |
| 6 | Machine Weight | 4500 KG |
| 7 | Electrical Control System | Delta PLC (can be customized) |
| 8 | Drive Motor Power | 4KW |
| 9 | Hydraulic Station Power | 4KW |
| 10 | Power Supply | 380V, 60HZ, 3 PHASES(can be customized) |
| 11 | Cutting Accuracy | ±2 mm |
| 12 | Driving Mode | Single Chain 1 inch |
| 13 | Material of Shaft | 70 mm 45#steel forged |
| 14 | Material of Roller | 45# Steel Finish Machining, Plated Hard |
