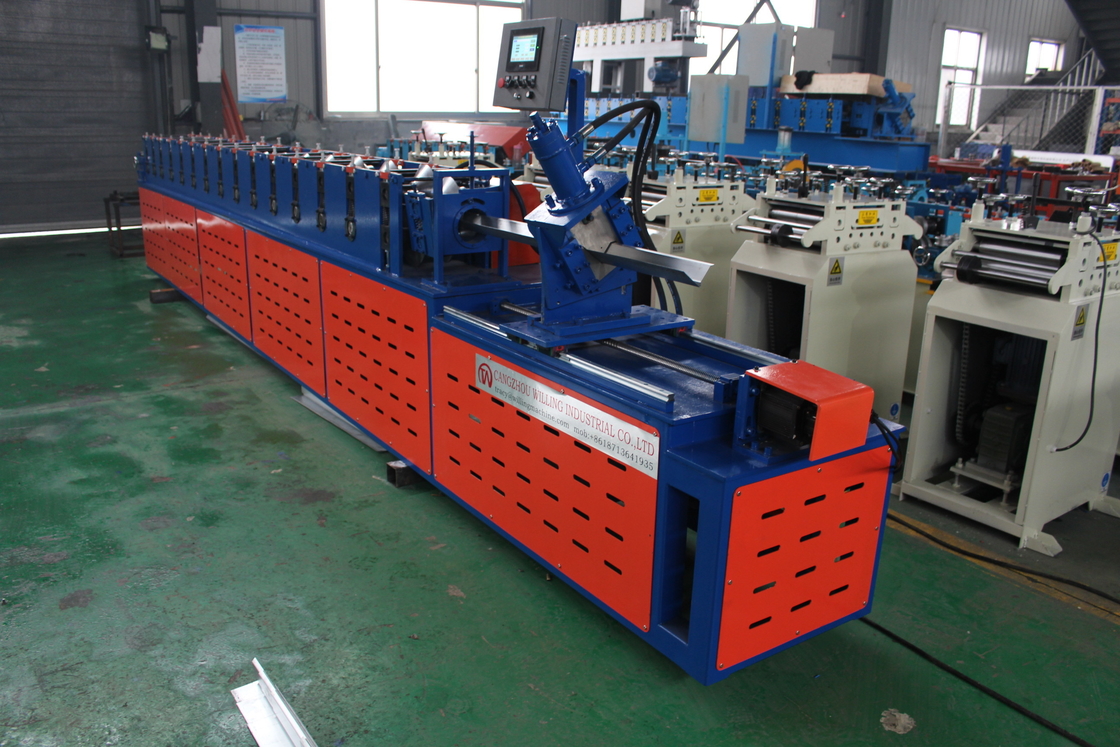

Drip Edge Roll Forming Machine High Accuracy
Angle bead roll forming machine popular sell in many countries, size common include 20*20 mm, 25*25 mm, 30*30 mm, 40*40 mm,. Product thickness common between 1-3 mm, machine details is like up type
Specification
| No. | Item | Description |
| 1 | Raw Material Thickness | 20-30 GA |
| 2 | Working Speed | 5-18 m/min ( not including the cutting time) |
| 3 | Roller Station | 19 Raws |
| 4 | Dimension (L*W*H) | 5000 mm*1200 mm* 1100 mm |
| 5 | Machine Weight | 4000 KG |
| 6 | Electrical Control System | Panasonic PLC (can be customized) |
| 7 | Drive Motor Power | 5KW |
| 8 | Hydraulic Station Power | 4 KW |
| 9 | Cutting Accuracy | ±2 mm |
| 10 | Driving Mode | Single Chain 1 inch |
| 11 | Material of Shaft | 70 mm 45#steel forged |
| 12 | Material of Roller | 45# Steel Finish Machining, Plated Hard |

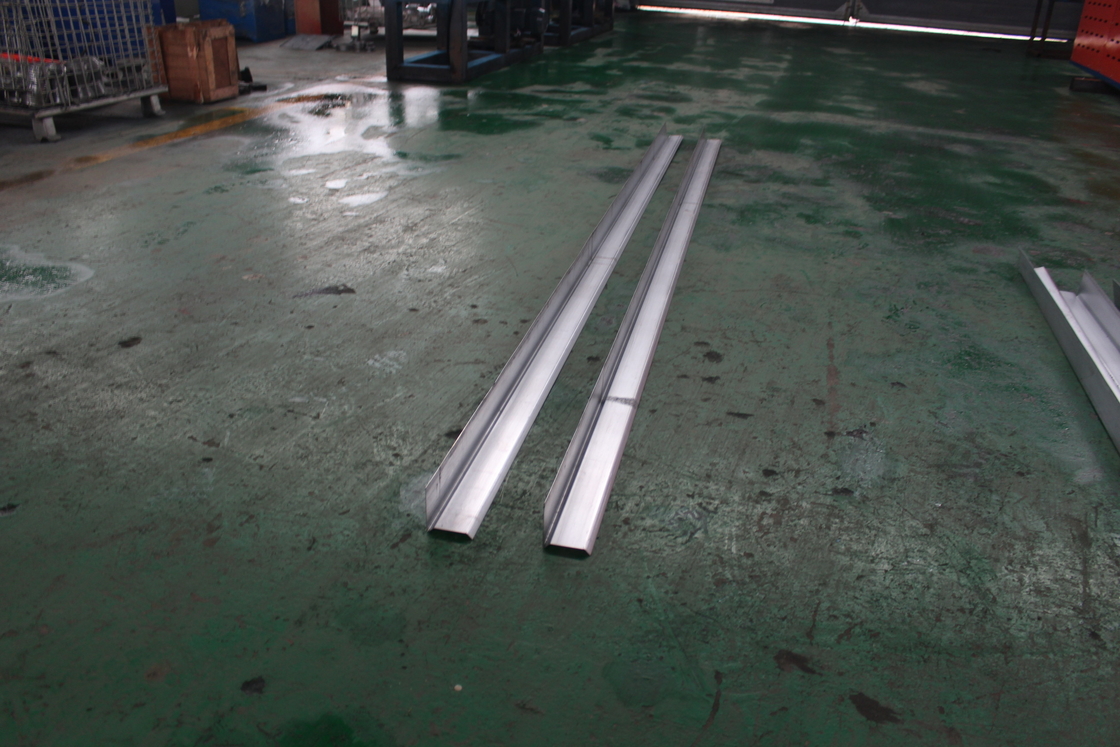

Application
prulin roll forming machine produce have excellent bending resistance and easy to install.
The finished product of Purlin Making Machine Non-polar Cutting Drip Edge Roll Forming Machine is widely used in the construction of various industrial plants, villages, warehouses, supermarkets, hotels, exhibition, family
construction, shopping. lt has the advantage of beautiful, classical appearance and grace taste.
Advantage
The advantages of purlin machine AUTOMATIC size-change type are as follows:
1.Produce different purlin size without changing rollers or spacers.
2.No need changing cutter for different size.
3.Easy operation, low maintenance cost
4.Infinite sizing(any size within machine range),help to save material
5.Optional Punch hole at any position of purlin web side and flange side
