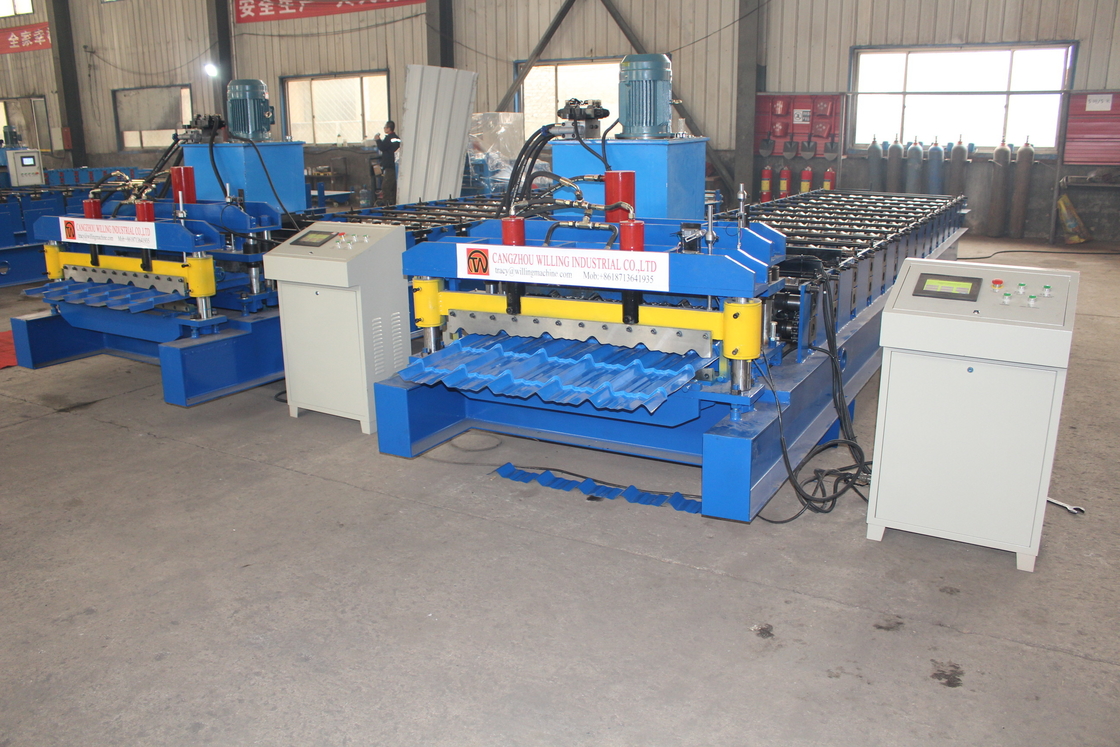

IBR Trapezoid Roofing Sheet Making Machine Hydraulic
This machine can customize the tile length according to the requirements ,there is the construction of the computer controller to set up multiple sets of different data,easy operate.
The equipment automatically set in accordance with the computer data to produce different lengths of finished products.

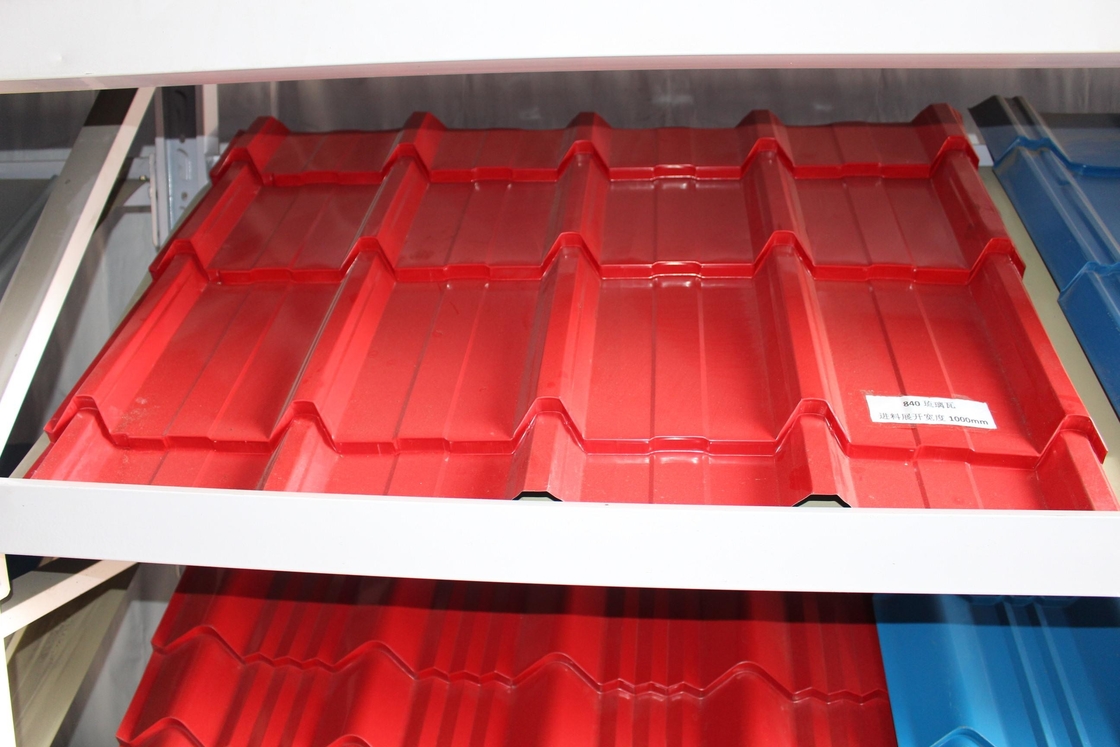

For roof sheet, it include many type according to its different shape, popular type include corrugated tile roll forming machine, trapezoidal tile roll forming machine,glazed tile roll forming machine, ridge cap roll forming machine and other type profile panel roll forming machine.
Specification
| No. | Item | Description |
| 1 | Coil | PL,GL,PPGI,PPGL |
| 2 | Raw Material Thickness | 0.25 mm - 0.9 mm |
| 3 | Working Speed | 15-20 m/min |
| 4 | Roller Station | 15 Stations |
| 6 | Machine Weight | 4000 KG |
| 7 | Electrical Control System | PLC |
| 8 | Drive Motor Power | 4 KW |
| 9 | Electric Shear Power | 4 KW |
| 10 | Power Supply | 380V, 60HZ, 3 PHASES(can be customized) |
| 11 | Cutting Accuracy | ± 2 mm |
| 12 | Driving Mode | Gear Wheel |
| 13 | Material of Shaft | 60 mm 45#steel forged |
| 14 | Material of Roller | 45# Steel Finish Machining, Plated Hard |
Application
The machine is used to construct external roofing & wall panels of houses & interior panels or ceilings to enhance the appearance of the roof or walls,And durability.
Advantage
The entire unit is automatically controlled, which can effectively save the need for manpower, thereby reducing production costs for customers
