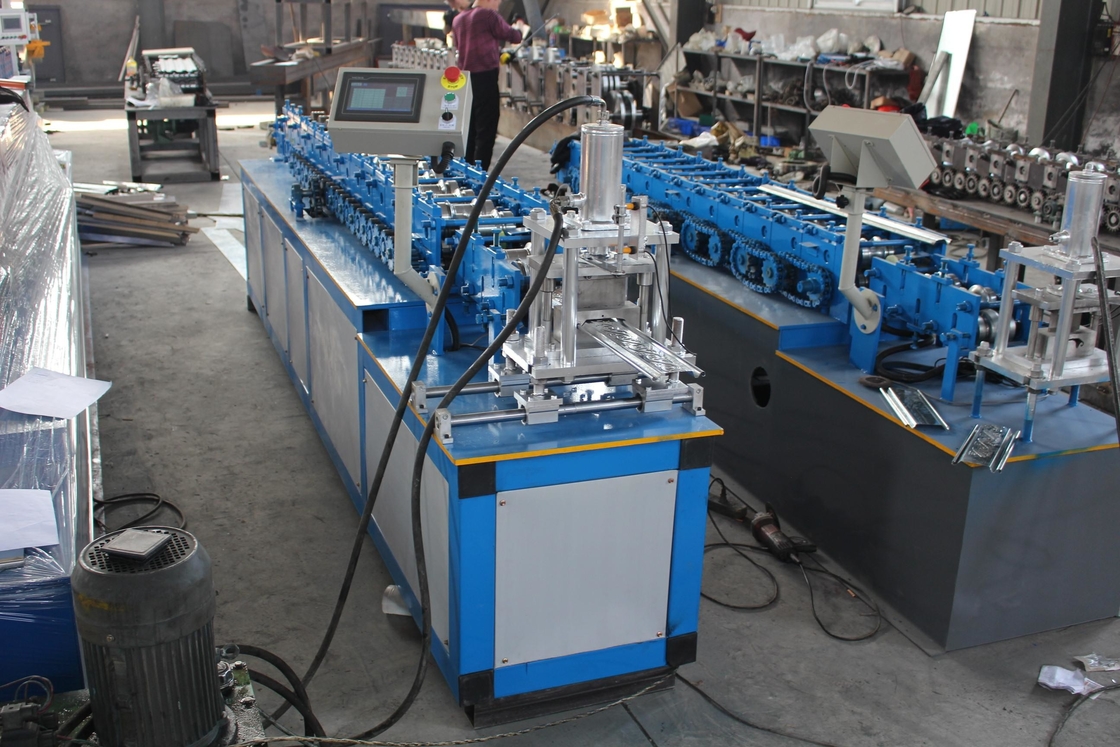

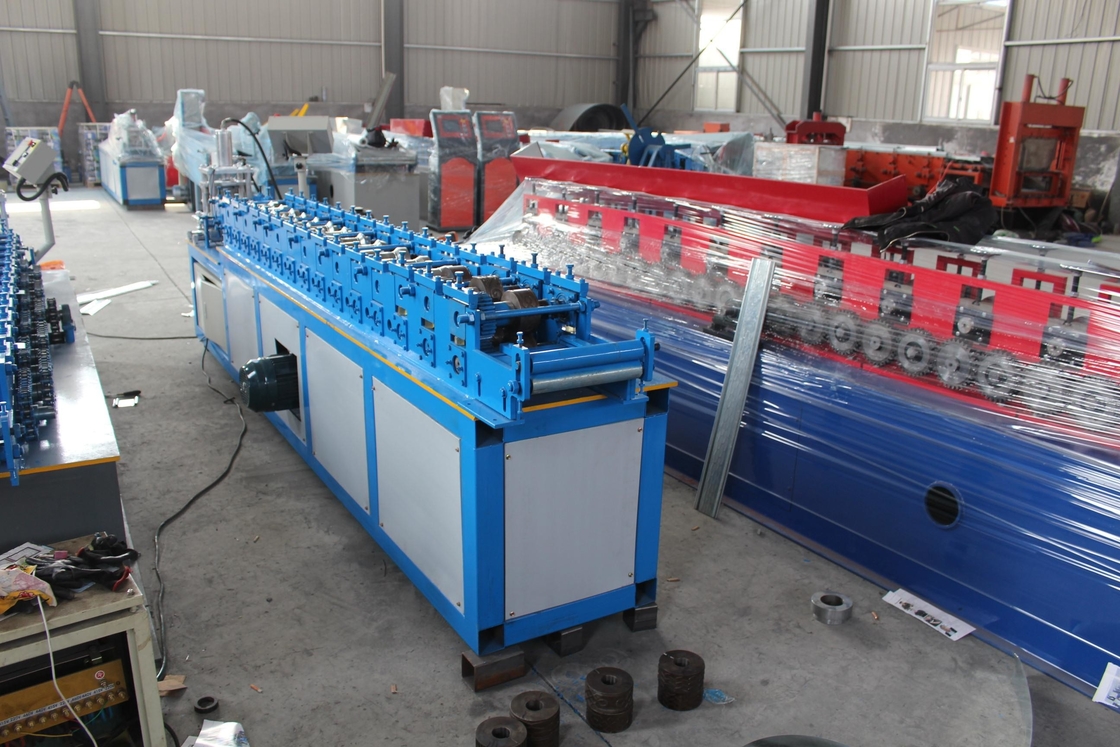

Steel Roller Shutter Door Roll Forming Making Machine Galvanized
Rolling shutter door forming machine is made by cold bending forming process.It uses less steel to complete the specified load that needs to be achieved. It does not rely on increasing the use of plates or improving materials. Mechanical properties to meet load requirements.
This perforated steel rolling shutter slat roll forming machine consists a manual decoiler, a roll fomer, transmission system, a punching tool is optional for punching slots on some types of steel roller shutter slats, a cutting tool (both a hydraulic cutter and a fly-saw cutter is available), a PLC control cabinet, a hydraulic oil pump will be equipment for hydraulic cutting tool and runout tables.
The shutter door is a series of multi-joint movable doors, in a fixed slideway, the door is rotated up and down with the reel above the door as the center. It is generally installed at a location where it is inconvenient to use wall separation. Rolling shutter doors are suitable for commercial facades, garages, factories and mining enterprises and other public places or residences. Especially where the door opening is large, the place where it is inconvenient to install the ground door has a convenient and quick opening effect.
Specification
| No. | Item | Description |
| 1 | Coil | Galvalume, Galvanized |
| 2 | Raw Material Thickness | 0.8mm - 1.0 mm |
| 3 | Working Speed | 20-30 m/min |
| 4 | Roller Station | 12 Stations |
| 6 | Machine Weight | 4 tons |
| 7 |
Electrical Control System |
Delta PLC (can be customized) |
| 8 |
Drive Motor Power |
4 KW |
| 9 |
Hydraulic Station Power |
4 KW |
| 10 |
Power Supply |
380V, 60HZ, 3 PHASES(can be customized) |
| 11 |
Cutting Accuracy |
± 2 mm |
| 12 |
Driving Mode |
Gear Wheel |
| 13 |
Material of Shaft |
60 mm 45#steel forged |
| 14 | Material of Roller |
45# Steel Finish Machining, Plated Hard |
