Nguồn gốc:
Trung Quốc đại lục
Hàng hiệu:
FMS
Chứng nhận:
ISO CE
Số mô hình:
đáy cửa
Băng hình
Băng hình
Băng hình

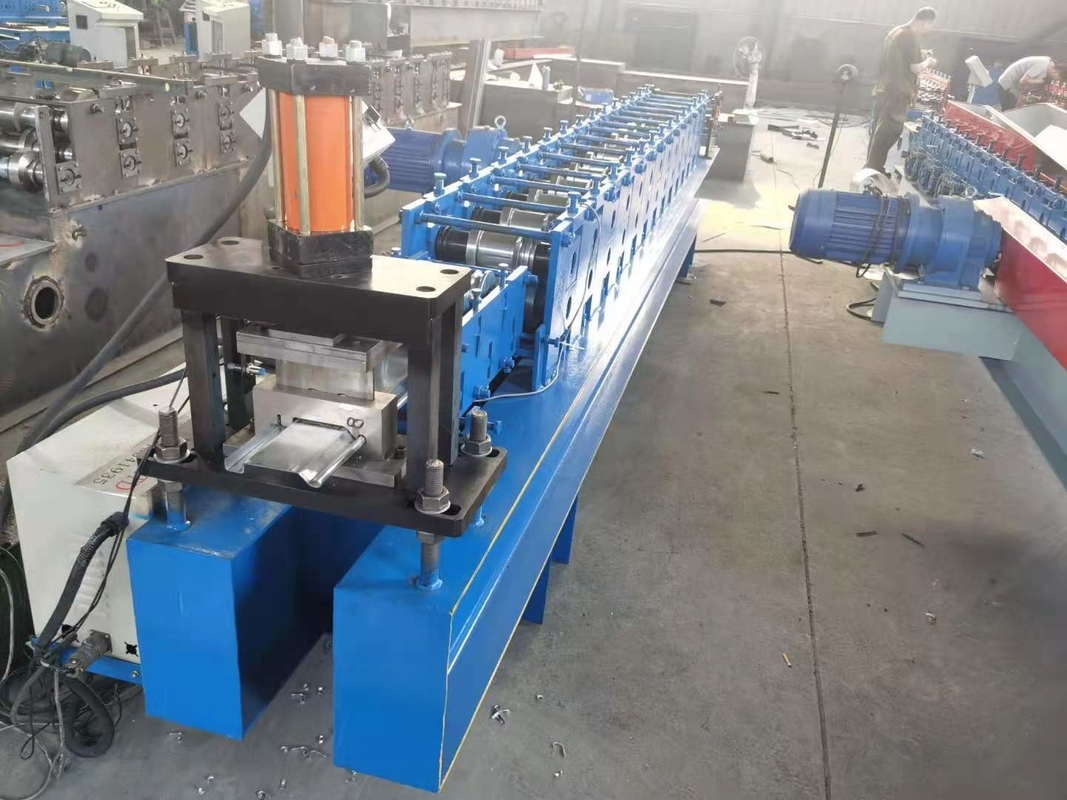

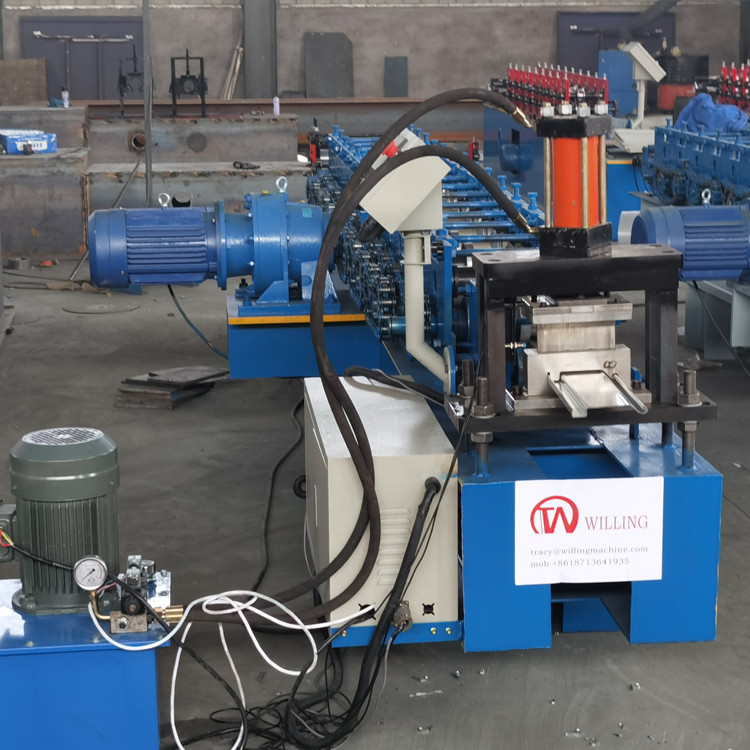

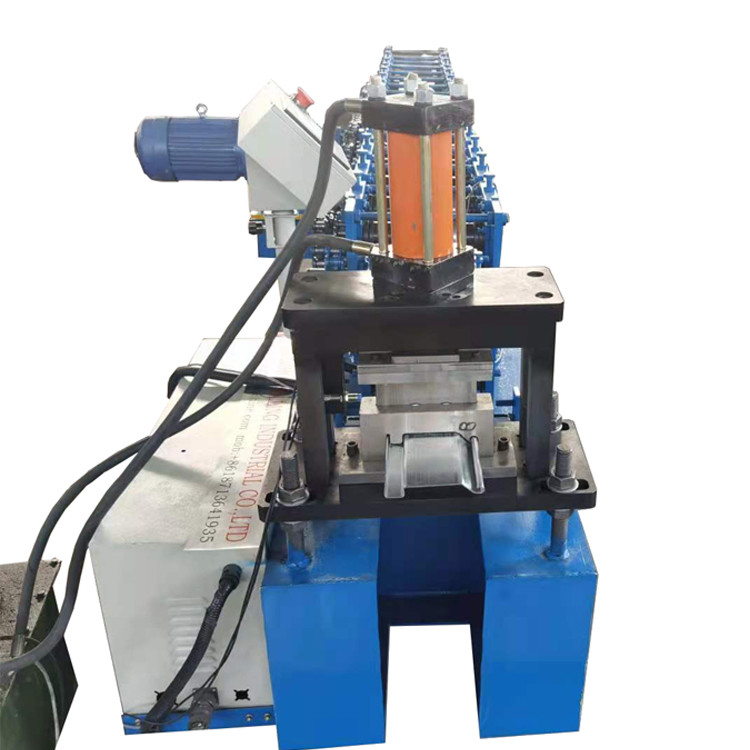

High Accuracy Shutter Door Bottom Roll Forming Machine Hydraulic Shears
The steel door bottom forming machine is controlled by the PLC control system to realize fully automatic operation. The machine language can be customized according to customer requirements. the products produced by this machine have high hardness, are not easily deformed, are corrosion-resistant, anti-oxidation, easy to maintain, and have a long service life, they are applicable to door frames, window frames, and slide rails of various products.
Specification
| No. | Item | Description |
| 1 | Coil | Galvalume, Galvanized |
| 2 | Raw Material Thickness | 0.25 mm - 0.9 mm |
| 3 | Working Speed | 10-15 m/min |
| 4 | Roller Station | 12 Stations |
| 5 |
Dimension (L*W*H) |
5500 mm*800 mm*1200 mm |
| 6 | Machine Weight | 4000 KG |
| 7 |
Electrical Control System |
PLC |
| 8 |
Drive Motor Power |
5 KW |
| 9 |
Hydraulic Station Power |
5 KW |
| 10 |
Power Supply |
380V, 60HZ, 3 PHASES(can be customized) |
| 11 |
Cutting Accuracy |
± 1 mm |
| 12 |
Driving Mode |
Gear Wheel |
| 13 |
Material of Shaft |
60 mm 45#steel forged |
| 14 | Material of Roller |
45# Steel Finish Machining, Plated Hard |
Application

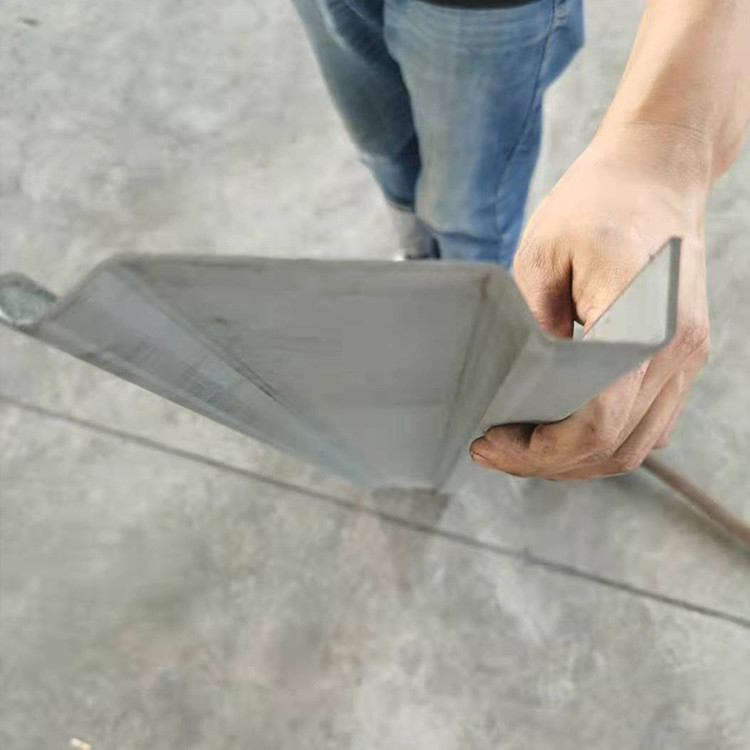

The rolling shutter door bottom forming machine is used in conjunction with the rolling shutter door strip forming machine. The finished product is widely used in the production of various doors, such as garage doors, fire-proof rolling shutter doors and the area isolation of medicine, food, electronics, clean plants, cigarettes, printing, textiles, supermarkets and other light industrial plants.
Advantage
The rolling door produced by this equipment can effectively isolate temperature, heat, insects, noise, and odor, and play a blocking role in the room, reduce energy consumption, and keep the indoor working environment clean. At the same time, the size of the door can be adjusted according to the installation size on site. Windows can be added to increase indoor lighting and transparency.
