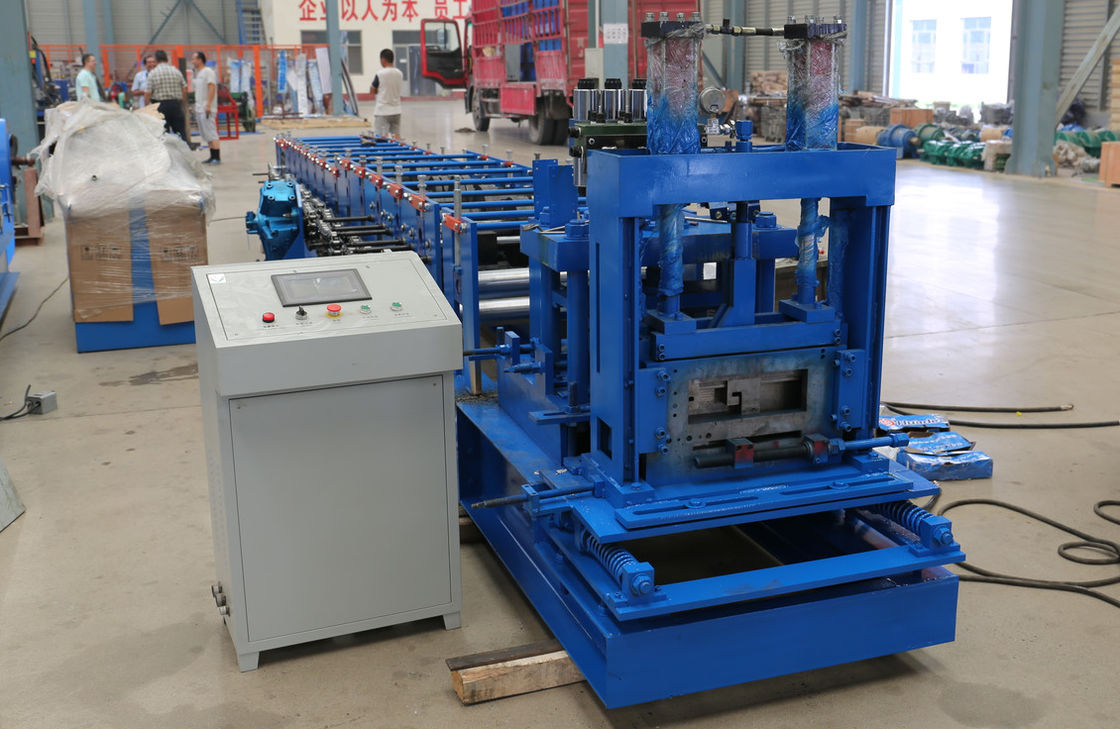

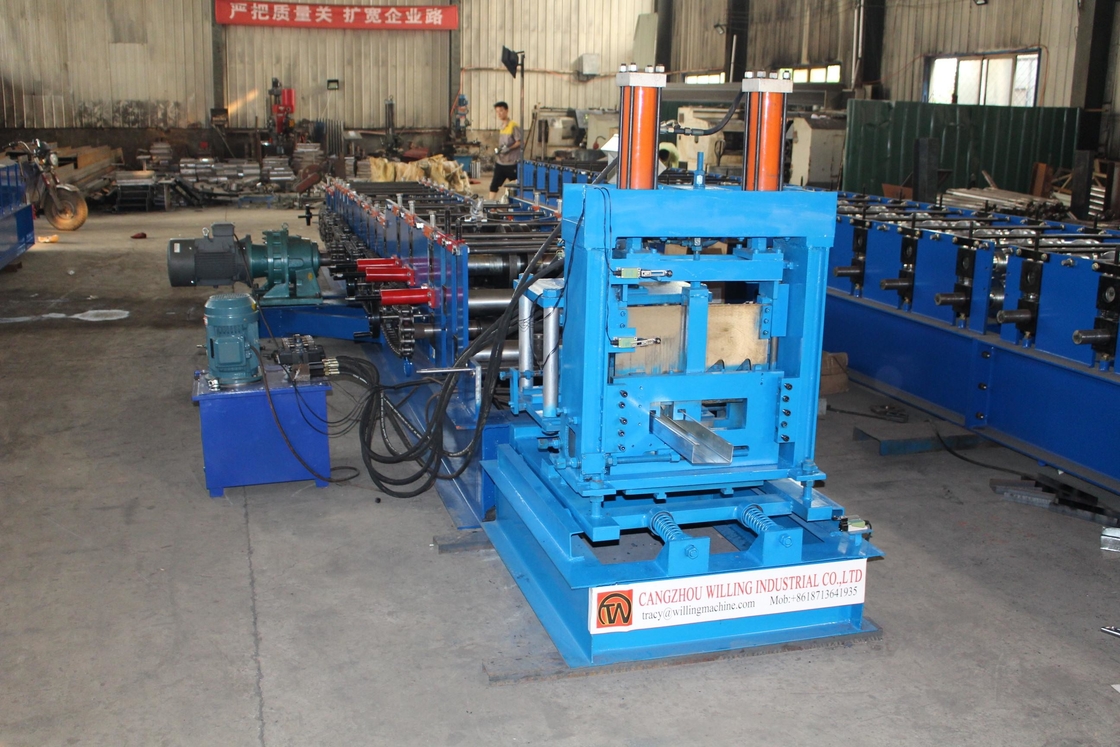

Cz Purlin Roll Forming Machine Hydraulic Cutting Automatic
Specification
| No. | Item | Description |
| 1 | Coil | Galvanized |
| 2 | Material Thickness | 1 mm- 3 mm |
| 3 | Working Speed | 8-20 m/min ( not including the cutting time) |
| 4 | Roller Station | 12-16 Raws |
| 5 | Dimension (L*W*H) | 7000 mm*1000 mm*1300 mm |
| 6 | Machine Weight | 4000 KG |
| 7 | Electrical Control System | Panasonic PLC |
| 8 | Drive Motor Power | 15KW |
| 9 | Hydraulic Station Power | 15 KW |
| 10 | Power Supply | 380V/50HZ/3PH |
| 11 | Cutting Accuracy | ±2 mm |
| 12 | Driving Mode | Single Chain 2 inch |
| 13 | Material of Shaft | 80 mm 45#steel forged |
| 14 | Material of cutting | Cr12 |
| 15 | Material of Roller | 45# Steel Finish Machining, Plated Hard |
Application
C, Z type roll forming machine products are widely used in structural building purlins, wall beams and roofs, etc., and can also be combined into lightweight roof trusses, brackets and other building components. Due to its relatively high safety factor, the load-bearing capacity can meet most needs in movable buildings. Usually C-shaped and Z-shaped steel are used as beams, supports and tie rods. At the same time, it can also be used on the roof to support roof panels and wall panels.
Advantage
1.The finished purlin has high straight level and high crush resistance ability. 2.The finished Z purlin can be lap reversely.The connection point improve strength. 3.Use reduce motor and frequency to control, the speed length and location can be control. 4.Interchangeable progress between C and Z is fast and easy.
fully automatic CZ interchange purlin machine has a fully automatic electrical control system and error alarm device, which can effectively ensure the safety and stability of the production line.
