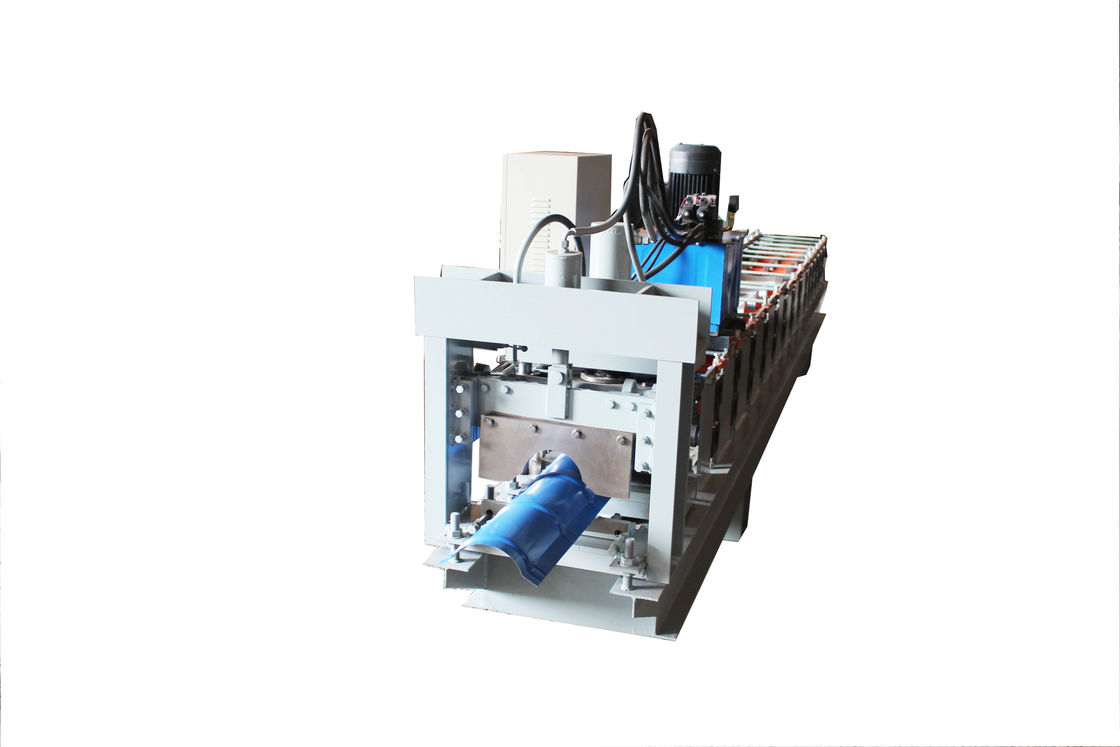

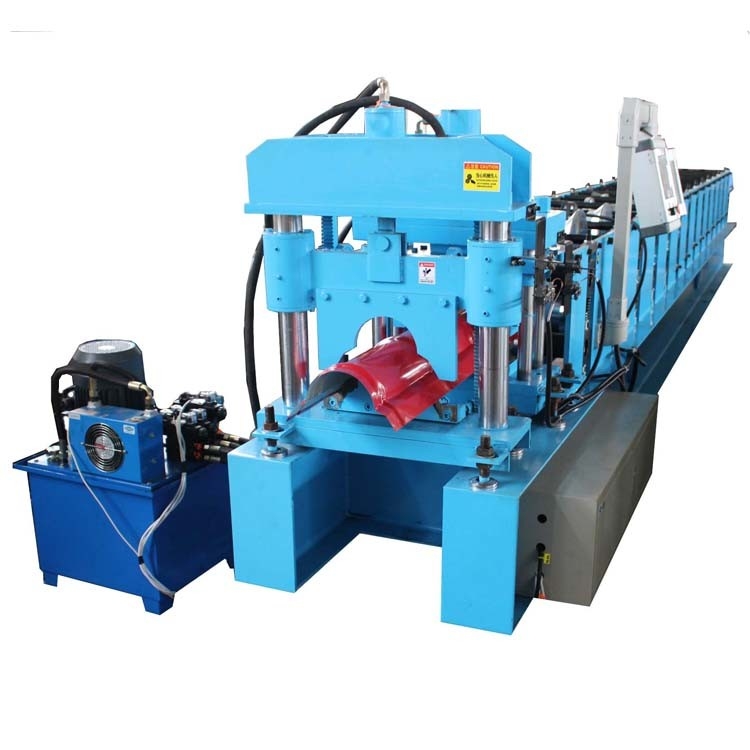

Semicircle Ridge Cap Metal Tile Forming Machine Automatic
The ridge cap roll forming machine can roll metal ridges and is mainly used for colored roof tiles. The entire roll forming production line is composed of uncoiler (mainly composed of uncoiler and its base), gear rigging, rolling mill stand and main machine, pressurizing system, cutting equipment, hydraulic system, control system, and product support.
Specification
|
Material Thickness
|
0.3-0.8 mm
|
|
Working Speed
|
8-15 m/min
|
|
Frame
|
welded with 350H section steel
|
|
Material of Roller
|
45# steel quenching process and chrome coated
|
|
Material of Main Shaft
|
45 steel forged
|
|
Main Motor Power
|
4 KW
|
|
Electrical Hydraulic Station Power
|
3 KW
|
|
Hydraulic Station Pressure
|
12.0 Mpa
|
|
Material of Cutter
|
Cr12 Mov HRC 58-62
|
|
Driving Mode
|
Single chain 1 inch
|
Application
The finished products of metal roof cover forming machine roof tile building materials machinery are widely used in various industrial plants, garages, warehouses, apartments, home construction, etc.
Advantage
ridge cap steel tiles has light weight, good waterproofness, easy and quick installation,cost effective.highly durable.
the surface will be very smooth and beautiful without any scratch on surface.and can be widely used in roofs of villas, urban flat-to-slope, and tourist attractions. it can maintain the beauty of the roof without and repairing. The arc-shaped color steel roof ridge tile is more complete on the basis of the hand-made roof ridge tile.
