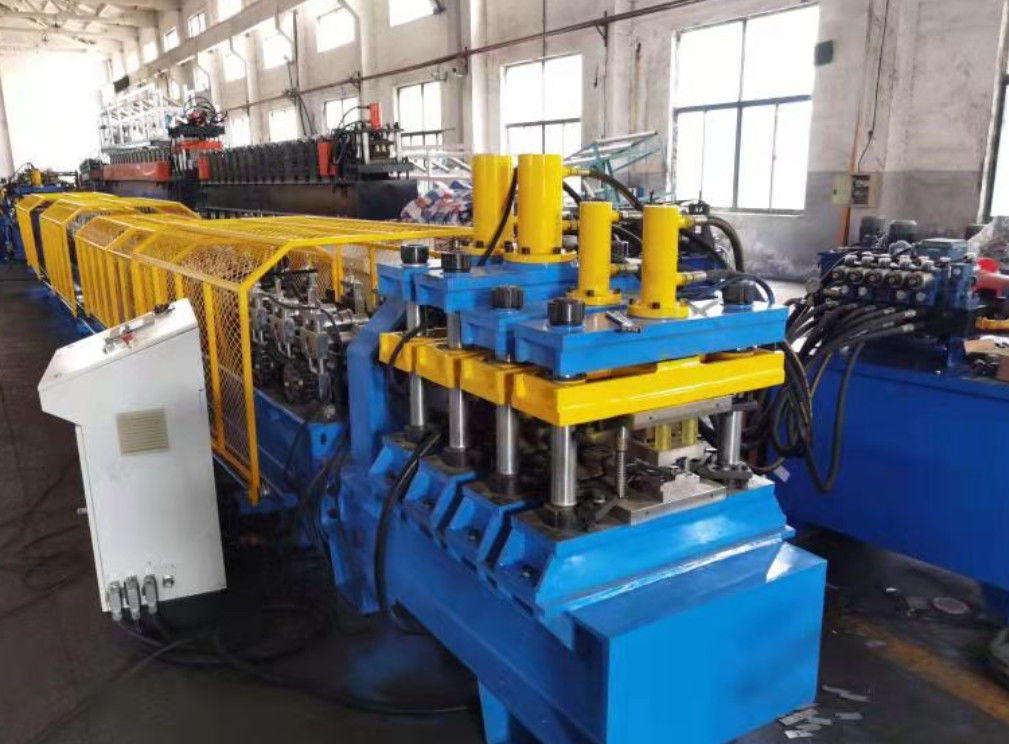

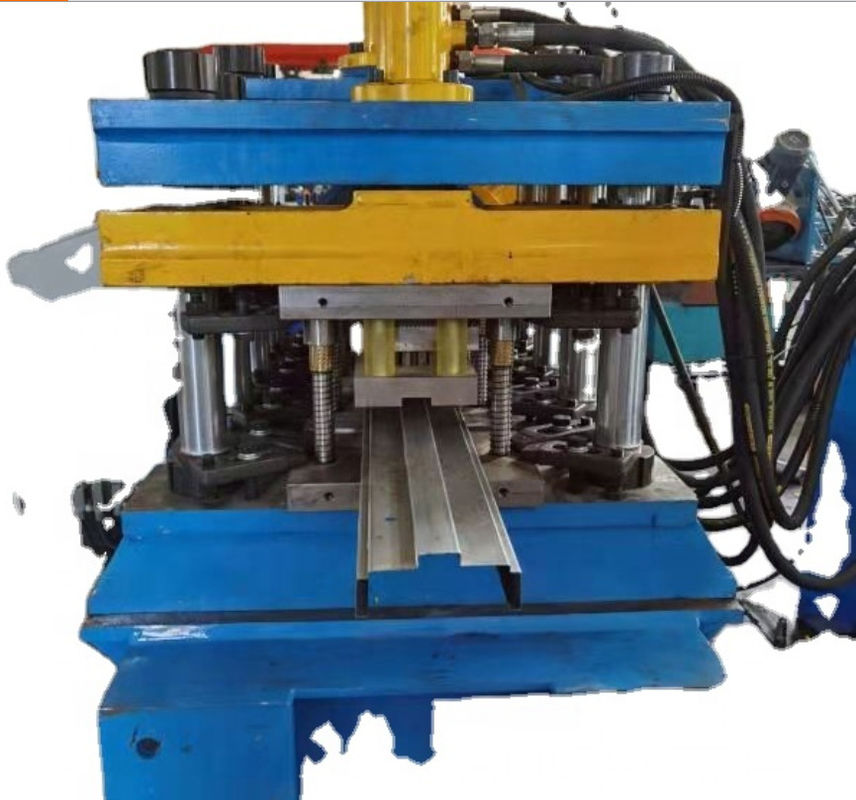

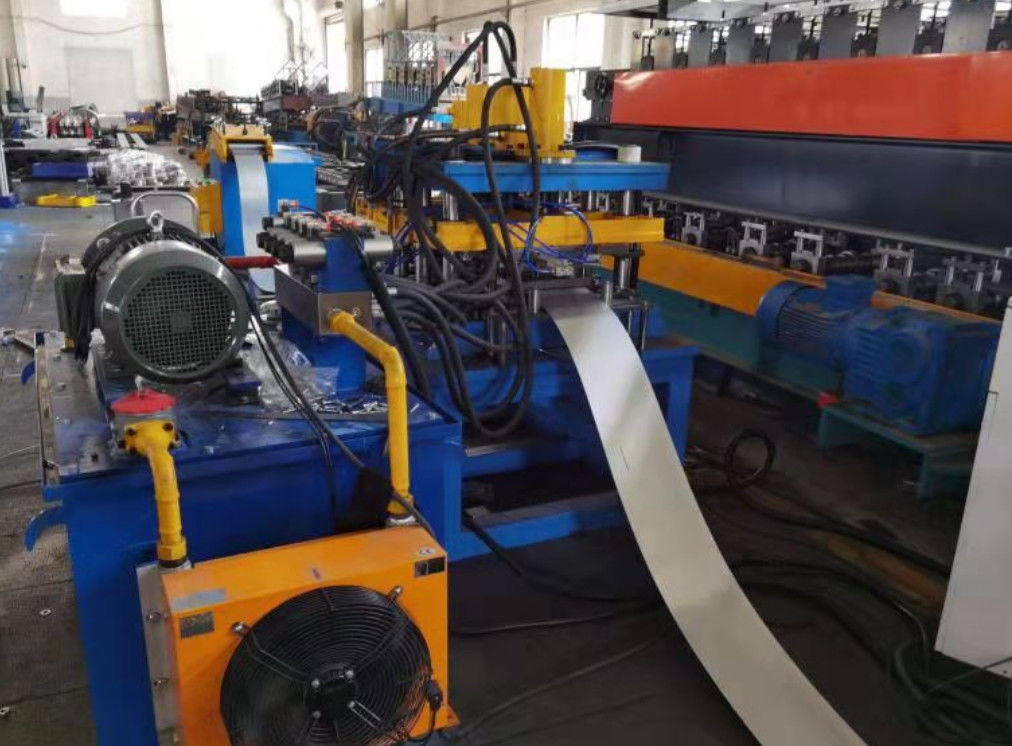

Hydraulic Shears Automatic Steel Door Frame Roll Forming Machine

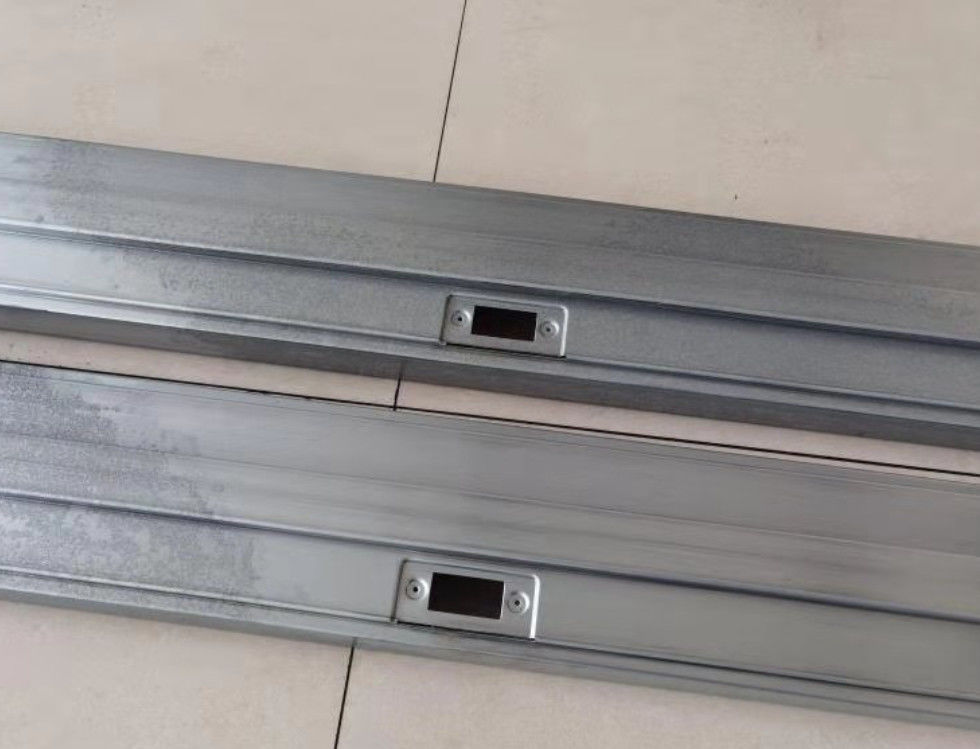

The steel door frame forming machine is controlled by the PLC control system to realize fully automatic operation. The machine version can be customized according to customer requirements. Because the products produced by this machine have high hardness, are not easily deformed, are corrosion-resistant, anti-oxidation, easy to maintain, and have a long service life, they are applicable to door frames, window frames, and slide rails of various products.
Specification
| No. | Item | Description |
| 1 | Coil | Galvalume, Galvanized |
| 2 | Raw Material Thickness | 0.3 mm - 0.9 mm |
| 3 | Working Speed | 10-15 m/min |
| 4 | Roller Station | 12 Stations |
| 5 |
Dimension (L*W*H) |
5500 mm*800 mm*1200 mm |
| 6 | Machine Weight | 4000 KG |
| 7 |
Electrical Control System |
PLC |
| 8 |
Drive Motor Power |
5 KW |
| 9 |
Hydraulic Station Power |
5 KW |
| 10 |
Power Supply |
380V, 60HZ, 3 PHASES(can be customized) |
| 11 |
Cutting Accuracy |
± 1 mm |
| 12 |
Driving Mode |
Gear Wheel |
| 13 |
Material of Shaft |
60 mm 45#steel forged |
| 14 | Material of Roller |
45# Steel Finish Machining, Plated Hard |
Application
The door frame forming machine is used in conjunction with the rolling shutter door strip forming machine, which is suitable for commercial exterior walls, garages, shopping malls, factories, mining enterprises and other public places or residences. Especially in places with large door openings, where it is not convenient to install the door body on the ground, it plays a role of convenient and quick opening of the door. For example, it is used for garage doors, fireproof rolling shutter doors of shopping malls, hangar doors, etc.
Advantage
The door frame forming machine adds different geometrical ribs to the high-hardness zinc-aluminum alloy profile to greatly enhance its strength. The surface is treated with special electrophoresis, which has unlimited luster, is not easy to stick to dust, is not corroded by polluted gases, and is never rusted. long.
