Nguồn gốc:
Trung Quốc đại lục
Hàng hiệu:
CANGZHOU WILLING
Chứng nhận:
ISO CE
Số mô hình:
Mũ sườn núi
Băng hình
Băng hình
Băng hình

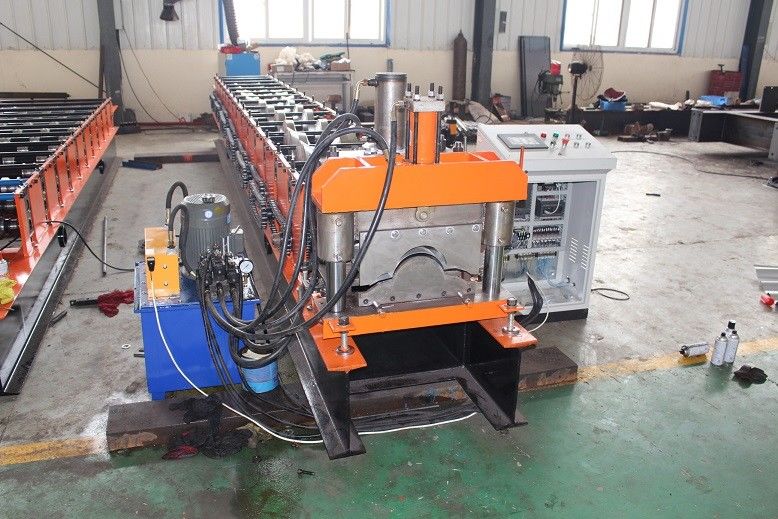

Fully Automatic Tile Fix Ridge Cap Roll Forming Making Machine
The roof tile forming machine adopts imported computer motherboards, relays, and frequency converters. It has high production efficiency and high yield. It has the ability to replace the ridge pad tiles in the past roof ridge tiles and the base part for laying on the corrugated tiles. A structure composed of a crown that covers the ridge tile and forms an appearance on the outer side of the roof tile
Specification
| No. | Item | Description |
| 1 | Coil | Galvalume, Galvanized, PPGI, Aluminum |
| 2 | Raw Material Thickness | 0.3-0.9mm |
| 3 | Working Speed | 10-15 m/min ( not including the cutting time) |

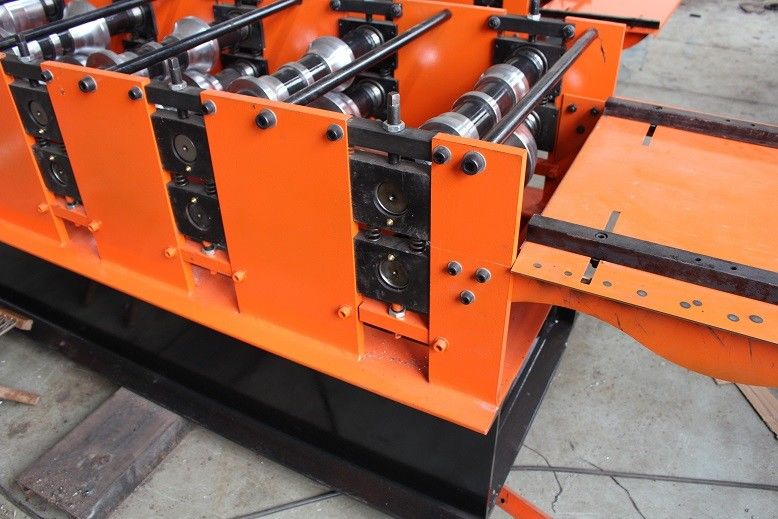

| 4 | Roller Station | 12 Raws |
| 5 |
Dimension (L*W*H) |
58000 mm*1200 mm*1100 mm |
| 6 | Machine Weight | 4000 KG |
| 7 |
Electrical Control System |
Delta PLC (can be customized) |
| 8 |
Drive Motor Power |
4KW |
| 9 |
Hydraulic Station Power |
4 KW |
| 10 |
Power Supply |
380V, 60HZ, 3 PHASES(can be customized) |
| 11 |
Cutting Accuracy |
±2 mm |
| 12 |
Driving Mode |
Single Chain 1 inch |
| 13 |
Material of Shaft |
70 mm 45#steel forged |

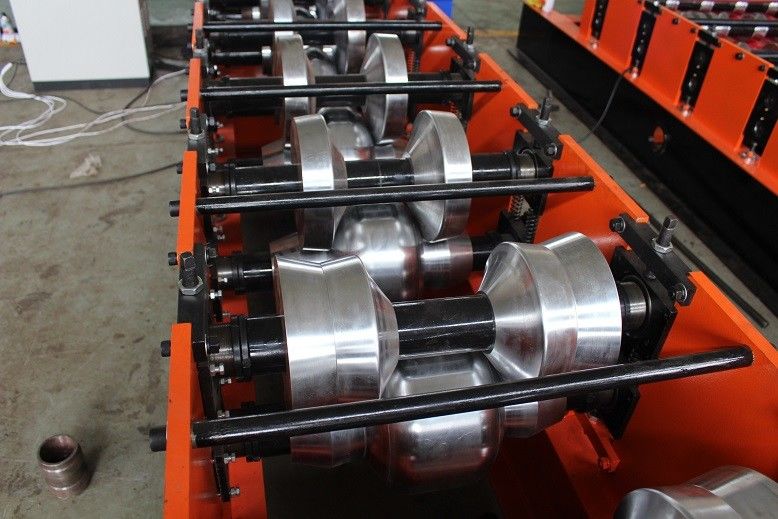

| 14 | Material of Roller |
45# Steel Finish Machining, Plated Hard |
Application
The ridge cap tile forming machine adopts roll forming technology and stamping die hydraulic forming. Products are widely used in building color steel roof connections, such as new rural construction, leveling projects, resorts, villa roofs, etc.
Advantage
The ridge cap tile roof tile forming machine has a reasonable structure and is easy to operate. It is fed, pressed, and cut into plates. Using low-speed metering pump, frequency conversion speed regulation or stepless speed regulation, computer control, accurate measurement. The entire unit automation control system adopts a highly integrated network, which makes the automation system superior in performance.
