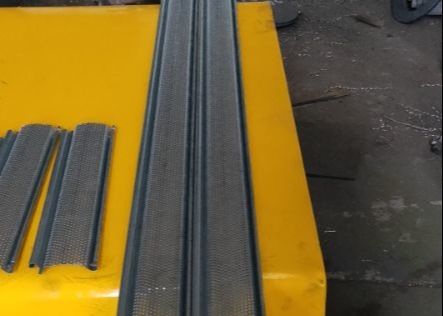

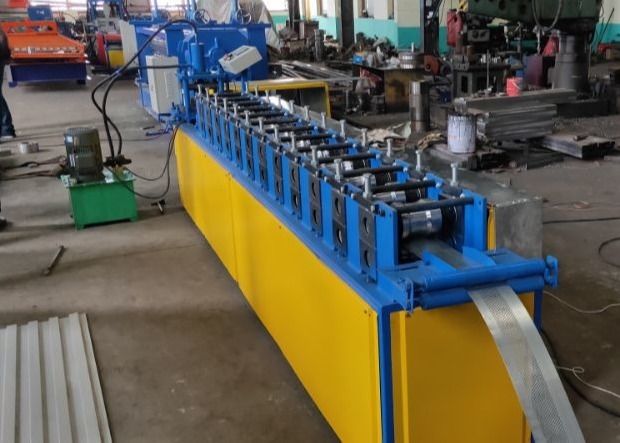

Punching Hollow Shutter Slat Shutter Door Roll Forming Machine

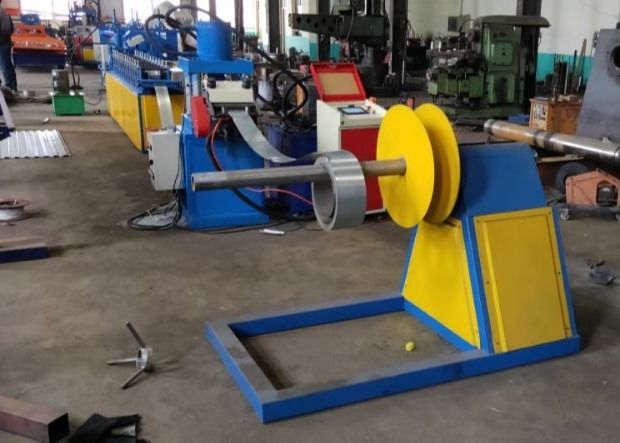

Controlled by the PLC control system, it is composed of an unwinding system, a punching system, a forming system, and a cutting system. It realizes a fully automatic operation mode and an automatic roll forming machine for roller blinds.
Specification
| No. | Item | Description |
| 1 | Coil | Galvalume, Galvanized |
| 2 | Raw Material Thickness | 0.6 mm - 0.9 mm |
| 3 | Working Speed | 10-20 m/min |
| 4 | Roller Station | 12 Stations |
| 5 |
Dimension (L*W*H) |
6500 mm*800 mm*1200 mm |
| 6 | Machine Weight | 4000 KG |
| 7 |
Electrical Control System |
PLC |
| 8 |
Drive Motor Power |
5 KW |
| 9 |
Hydraulic Station Power |
5 KW |
| 10 |
Power Supply |
380V, 60HZ, 3 PHASES(can be customized) |
| 11 |
Cutting Accuracy |
± 1 mm |
| 12 |
Driving Mode |
Gear Wheel |
| 13 |
Material of Shaft |
60 mm 45#steel forged |
| 14 | Material of Roller |
45# Steel Finish Machining, Plated Hard |
Application
Rolling shutters are suitable for commercial facades,shopping malls,garage doors, fireproof rolling shutter doors of shopping malls, and hangar doors, factories, mining enterprises and other public places or residences. Especially where the door opening is large, the place where it is inconvenient to install the door body on the ground plays a role of convenient and quick opening.
Advantage
The rolling shutter door has beautiful appearance, compact and advanced structure, convenient installation, sturdy and durable, ventilated and breathable, does not occupy the ground, is flexible and convenient to open and close, and has a good anti-theft function.
