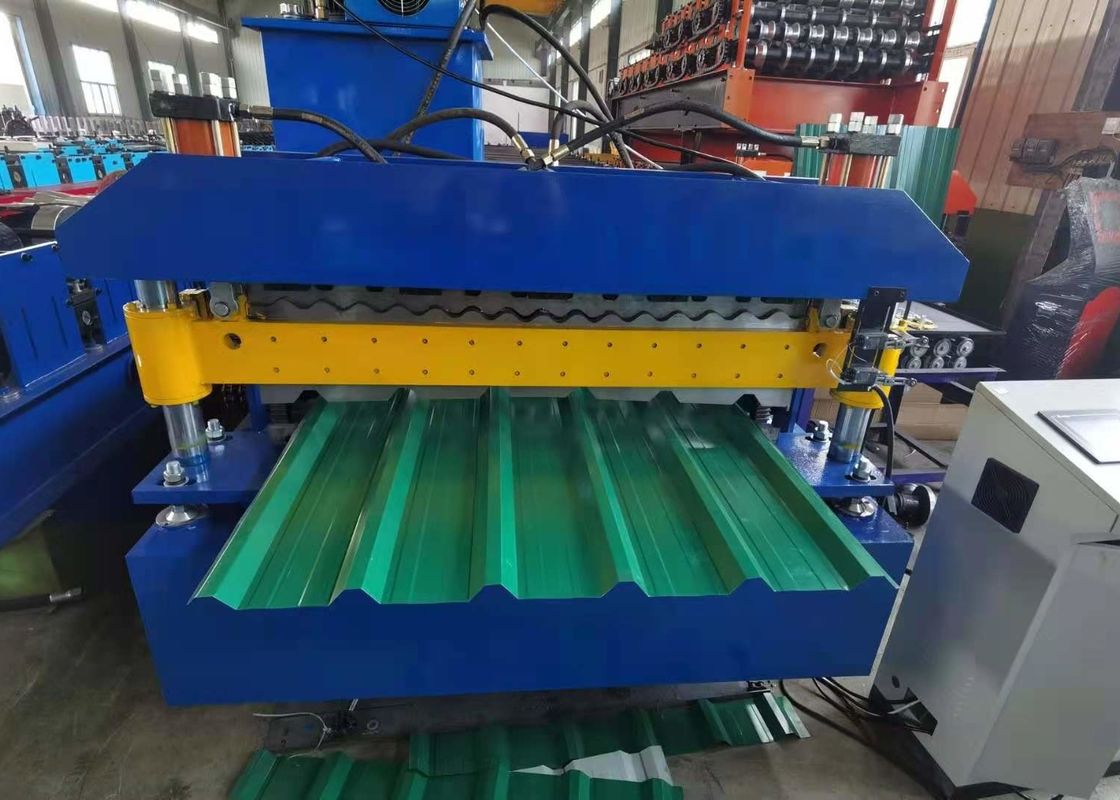

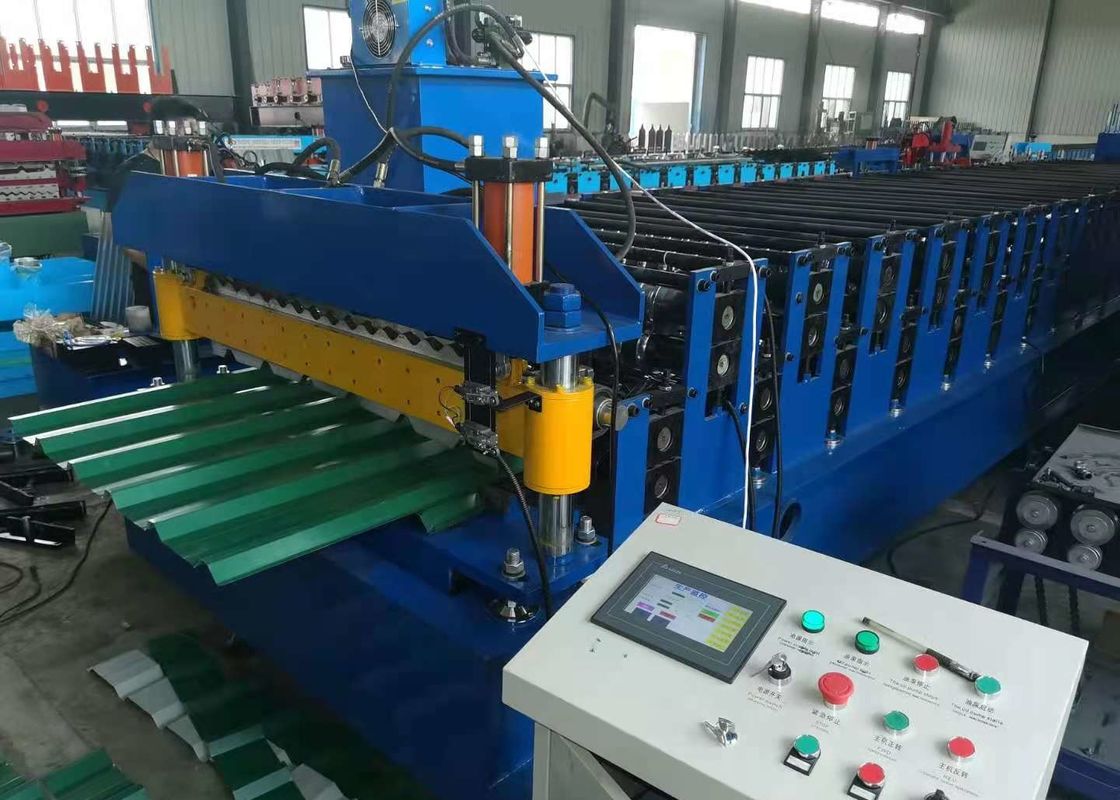

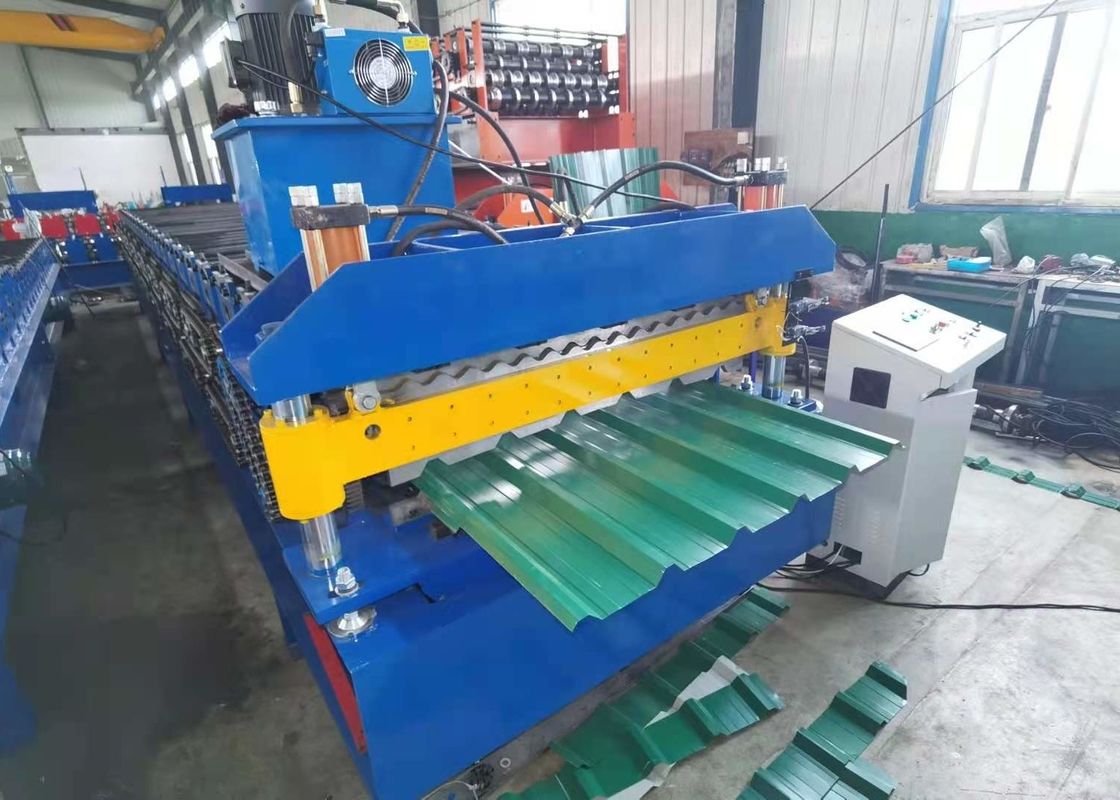

6 Rib 840 Model IBR Roof Roll Forming Machine
The 6Rib 840 IBR roof forming machine is an efficient production machine composed of several parts such as uncoiling, feeding, forming and cutting. The machine is easy to operate and can be operated independently by one or two workers. The color panels produced by it have a smooth appearance, no burrs, high strength, and durability.
Specification
| No. | Item | Description |
| 1 | Coil | Galvalume, Galvanized, PPGI, Aluminum |
| 2 | Raw Material Thickness | 0.3-0.8mm |
| 3 | Working Speed | 15-20m/min ( not including the cutting time) |
| 4 | Roller Station | 12 Raws |
| 5 |
Dimension (L*W*H) |
58000 mm*1200 mm*1100 mm |
| 6 | Machine Weight | 4000 KG |
| 7 |
Electrical Control System |
Delta PLC (can be customized) |
| 8 |
Drive Motor Power |
4KW |
| 9 |
Hydraulic Station Power |
4KW |
| 10 |
Power Supply |
380V, 60HZ, 3 PHASES(can be customized) |
| 11 |
Cutting Accuracy |
±2 mm |
| 12 |
Driving Mode |
Single Chain 1 inch |
| 13 |
Material of Shaft |
70 mm 45#steel forged |
| 14 | Material of Roller |
45# Steel Finish Machining, Plated Hard |
Application
They are widely used Industrial and civil buildings, such as factory buildings, warehouses, gymnasiums, exhibition halls, theaters and other rooms, shopping malls, apartments, workshops, walls and roofs.
Advantage
Our company's main business includes a series of equipment such as double-layer tile machine, three-layer tile machine, glazed tile machine, square brick machine, floor machine, fully automatic CZ beam machine, plate shearing machine, bending machine, and punching machine.
We are committed to the research and development of various products, with supporting production equipment and development and design talents.The products produced have the advantages of accurate accuracy, strong flexibility, low processing loss, etc., and have a good cost performance.
