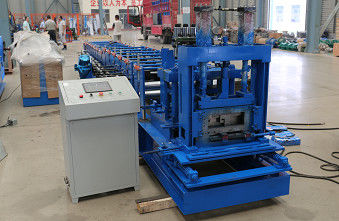

Fully Automatic Hydraulic Shear Channel C Purlin Roll Forming Machine
Specification
| No. | Item | Description |
| 1 | Coil | Galvanized |
| 2 | Material Thickness | 1 mm- 3 mm |
| 3 | Working Speed | 15- 20 m/min ( not including the cutting time) |
| 4 | Roller Station | 12-16 Raws |
| 5 |
Dimension (L*W*H) |
7000 mm*1000 mm*1300 mm |
| 6 | Machine Weight | 4000 KG |
| 7 |
Electrical Control System |
Panasonic PLC |
| 8 |
Drive Motor Power |
15KW |
| 9 |
Hydraulic Station Power |
15 KW |
| 10 |
Power Supply |
360V/60HZ/3PH |
| 11 |
Cutting Accuracy |
±2 mm |
| 12 |
Driving Mode |
Single Chain 2 inch |
| 13 |
Material of Shaft |
80 mm 45#steel forged |
| 14 | Material of Roller |
45# Steel Finish Machining, Plated Hard |
Application
the product of C and Z roll forming machine produce widely used in purlins and wall beams in structure buildings, and can also be combined into lightweight roof trusses, brackets and other building components. In addition, it can also be used for columns, beams and arms in light machinery manufacturing.
Application in the move room. The sprayed C and Zshaped steel is used as beams, supports and ties. Its safety factor is quite high, and its load-bearing capacity can also be satisfied. It can also be used in the roof to support roof panels and wall panels.
Advantage
The C-type purlin has very good straightness and has good compression and bending resistance. The Z-type purlin can be installed in reverse lap, and the installation strength of the connection point will be increased.
The fully automatic CZ interchange purlin machine has a fully automatic electric control system and an error reporting device, which can effectively ensure the safety and stability of the production line. The equipment is driven by a geared motor plus variable frequency control, speed control, and fixed-length positioning. It has also become much more accurate and reliable.
This kind of forest adjustment can press two different profiles of CZ, and it can realize the conversion of two types of profiles without changing the forming roller. The speed is very fast and the efficiency is very high.
