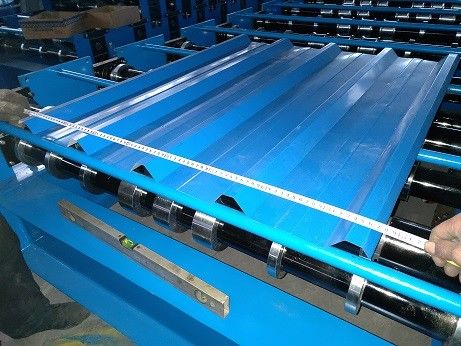

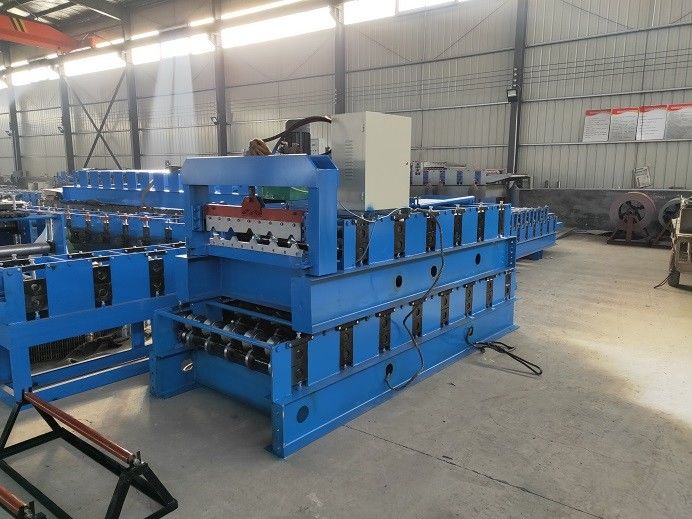

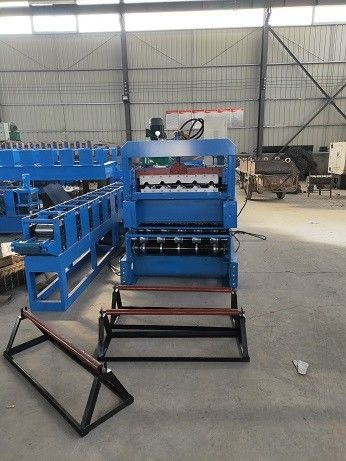

Trapezoid 760 Roof Tile 5 Ribs Roll Forming Machine
Trapezoid 760 is our company’s hot selling machine. Sell more than a dozen units every month. Due to the stable operation, high efficiency and low energy consumption of the machine, it can effectively save customers production costs and labor costs.
| No. | Item | Description |
| 1 | Coil | Galvalume, Galvanized, PPGI, Aluminum |
| 2 | Raw Material Thickness | 0.3-0.8mm |
| 3 | Working Speed | 15-25/min |
| 4 | Roller Station | 18 Raws |
| 5 |
Dimension (L*W*H) |
7500 mm*1200 mm*1200 mm |
| 6 | Machine Weight | 4500 KG |
| 7 |
Electrical Control System |
Panasonic PLC |
| 8 |
Drive Motor Power |
3 KW |
| 9 |
Hydraulic Station Power |
3 KW |
| 10 |
Power Supply |
380V/60HZ/3 PH |
| 11 |
Cutting Accuracy |
±2 mm |
| 12 |
Driving Mode |
Single Chain 1 inch |
| 13 |
Material of Shaft |
70 mm 45#steel forged |
| 14 | Material of Roller |
45# Steel Finish Machining, Plated Hard |
Application
This type of tile is suitable for all kinds of buildings, such as warehouses, apartments, shopping malls, laboratories, garages, garages and the interior and exterior wall decoration of large-span steel structure houses.
Advantage
This profile tiles are mostly used for roofing, wall and interior and exterior wall decoration of buildings, . It has light weight, high strength, rich color, convenient and fast construction, earthquake resistance, fire prevention, rainproof, and long life. It have been welcomed by the most of users.
