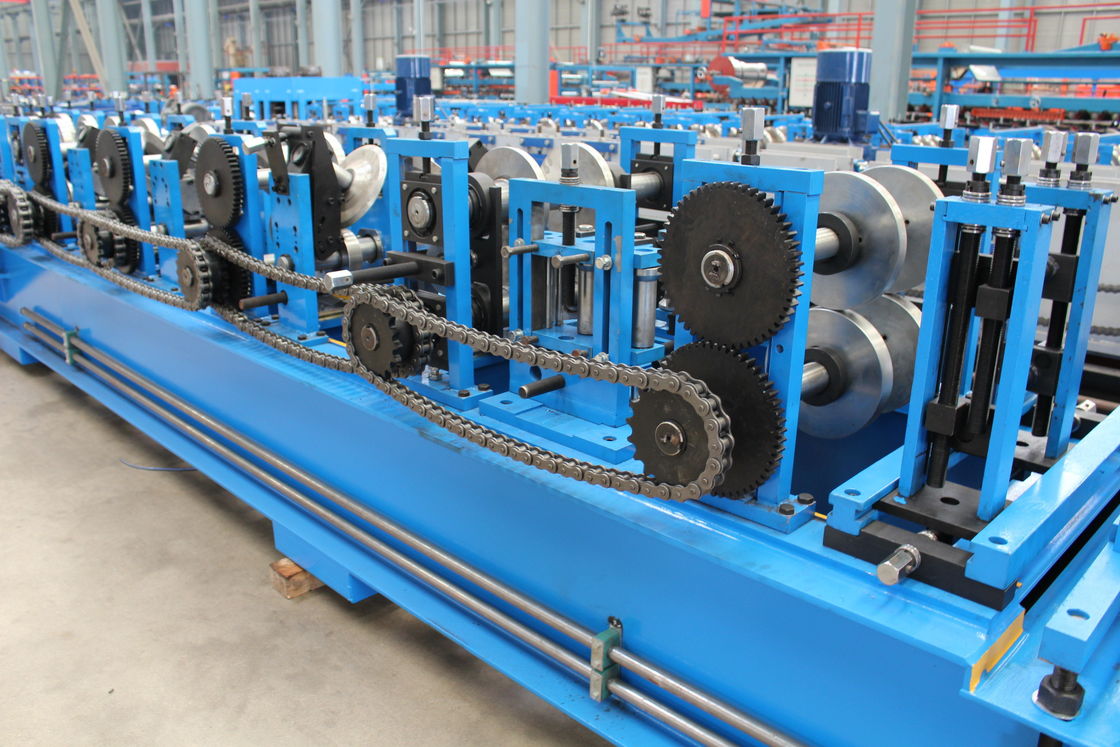

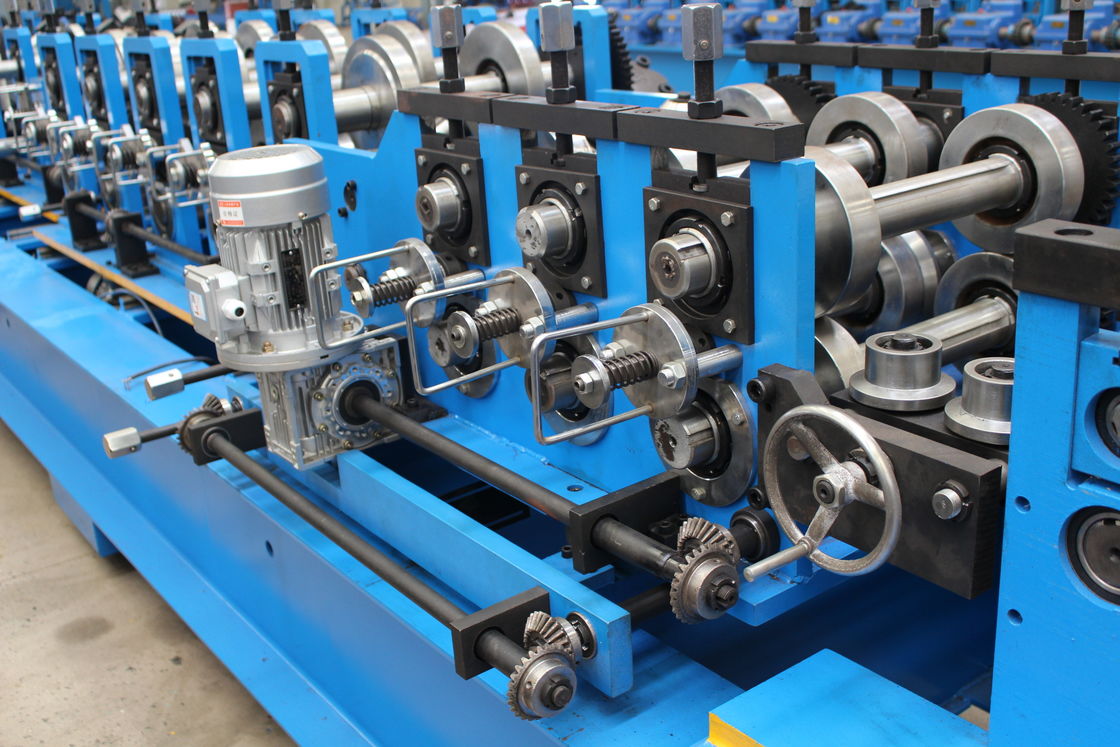

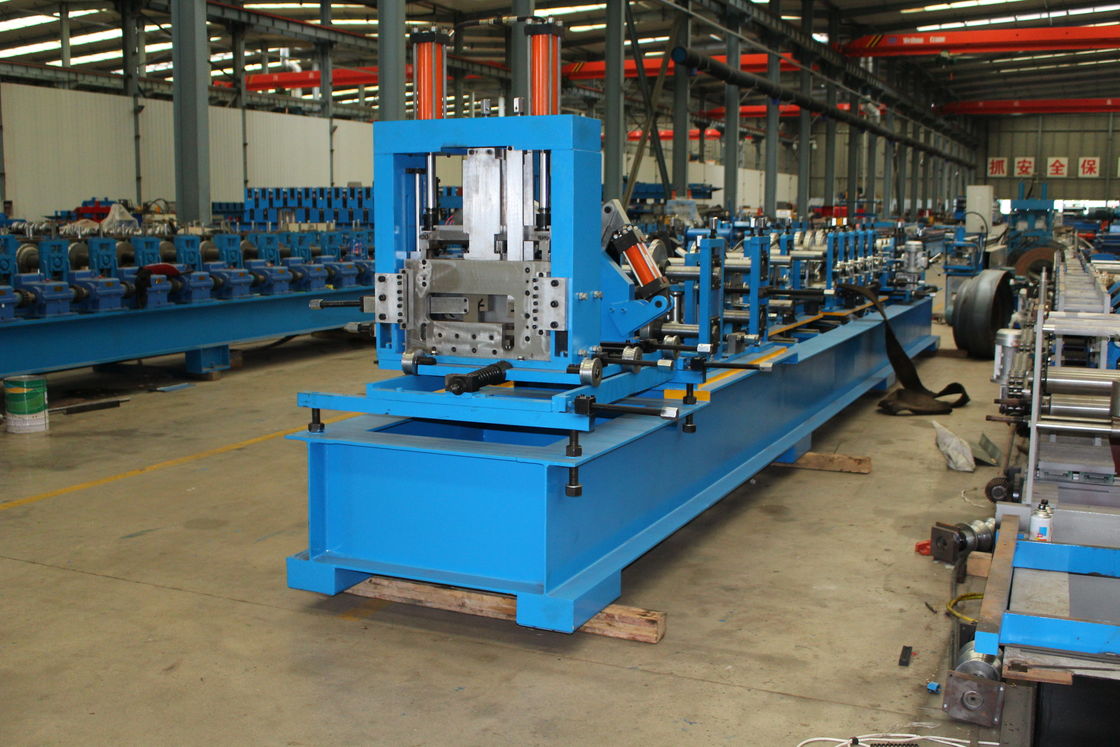

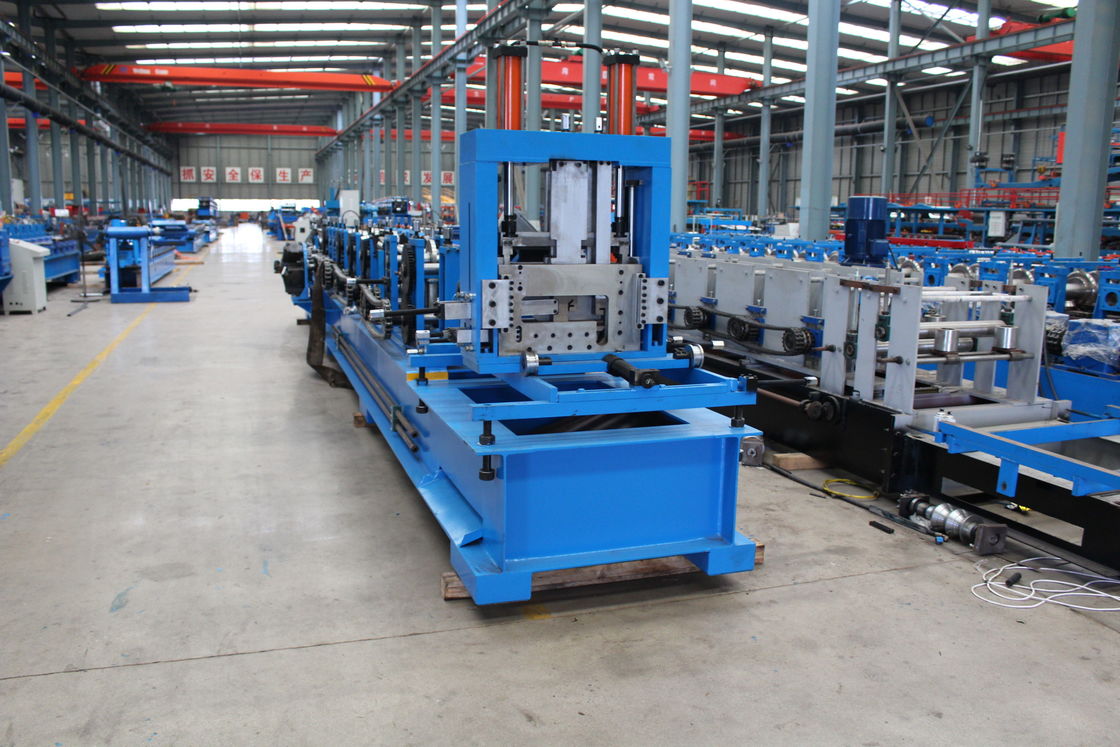

CZ Integrated Interchange Purlin Roll Forming Machine
Specification
| No. | Item | Description |
| 1 | Coil | Galvanized |
| 2 | Material Thickness | 1 mm- 3 mm |
| 3 | Working Speed | 10- 20 m/min ( not including the cutting time) |
| 4 | Roller Station | 12-16 Raws |
| 5 |
Dimension (L*W*H) |
7000 mm*1000 mm*1300 mm |
| 6 | Machine Weight | 5000 KG |
| 7 |
Electrical Control System |
Panasonic PLC |
| 8 |
Drive Motor Power |
15KW |
| 9 |
Hydraulic Station Power |
15 KW |
| 10 |
Power Supply |
360V/60HZ/3PH |
| 11 |
Cutting Accuracy |
±2 mm |
| 12 |
Driving Mode |
Single Chain 2 inch |
| 13 |
Material of Shaft |
80 mm 45#steel forged |
| 14 | Material of Roller |
45# Steel Finish Machining, Plated Hard |
Application
Mostly applicate in remove room, apartment,Workshops, warehouses, shopping malls and other buildings. C-shaped and Z-shaped steel are used as beams, supports and tie rods. Its safety factor is quite high and its bearing capacity can also meet the requirements. It can also be used on roofs to support roof and wall panels.
Advantage
This adjustment roll forming machine with two different CZ profiles, and can realize the conversion of the two profiles without replacing the forming roller. Very fast, very efficient.
C-purlin has good straightness and good compressive and flexural properties. Z-purlin can be installed in reverse lap to increase the installation strength of connection points.
