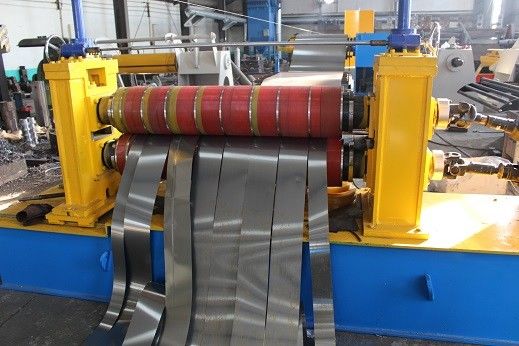

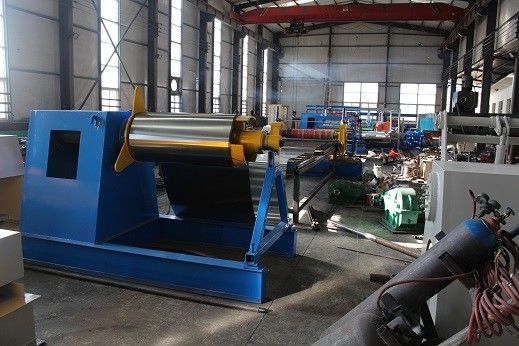

Automatic Adjustable Width Steel Coil Slitting Machine
Automatic Adjustable Width Steel Coil Slitting Machine is used for uncoiling, slitting, and winding the metal coil into a coil with the required width. It is suitable for processing cold-rolled and hot-rolled carbon steel, silicon steel, tinplate, stainless steel and various metal materials after surface coating.
| No. | Item | Description |
| 1 | Raw Material | Galvanized, Aluminum,Color steel |
| 2 | Raw Material Thickness | 0.3 mm - 3.0 mm |
| 3 | Raw Material Width | 600 mm - 1600 mm |
| 4 | Tape Inner Diameter | φ 480 mm - φ 530 mm |
| 5 | Tape Outer Diameter | φ 1600 mm |
| 6 | Coil Weight | 5 tons - 10 tons |
| 7 | The Highest Slitting LineSpeed | 20 m/min - 100 m/min |
| 8 | Cutting Width Precision | ± 0.01 - ± 0.05 mm |
| 9 | Rated Operational Voltage | 240 V, 3 Phase, 60 Hz |
| 10 | Total Weight | 13000 KG |
| 11 | Working Space(L*W) | 20000 mm*6000 mm |
Application
It is suitable for longitudinal shearing of metal strips and rewinding the slitted narrow strips into rolls. It is widely used in transformers, motors, home appliances, automobiles, building materials, packaging industries, etc.
Advantage
It is composed of uncoiling (unwinding), leading positioning, slitting and slitting, coiling (rewinding), etc. It has the characteristics of convenient operation, high cutting quality, high material utilization, and stepless speed regulation of cutting speed.
