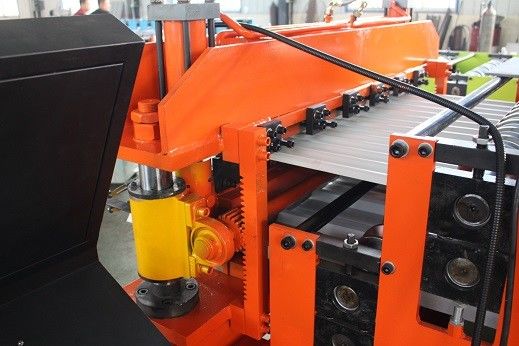

Double Layer Automatic Hydraulic Shear Roll Forming Machine
Double Layer Automatic Hydraulic Shear Roll Forming Machine One machine for two purposes, small floor space, convenient transportation, and cost-saving. Our factory has perfect after-sales service, and can carry out special design and manufacture according to user requirements, and at the same time guide users, production, installation, debugging and maintenance.
Equipment Detailed Parameters:
|
1 |
Suitable Material | PPGI (235Mpa) |
|
2 |
Width of the raw material | 1250mm |
| 3 | Rows of rollers | 15 rows & 16 rows |
| 4 | Dimension | 7300*1550*1200mm |
| 5 |
Main servo |
7.5kw |
| 6 | Hydraulic station power | 11kw |
| 7 | Thickness of raw material | 0.3-0.8mm |
|
8 |
Productivity |
15-18m/min |
| 9 | Diameter of shaft | ￠75mm |
|
10 |
Voltage | 380V 50Hz 3phases |
| 11 | Frame | 350H steel |
| 112 | Middle plate | 16mm |
Application
The color steel manufactured by the above machines is suitable for industrial and civil buildings, warehouses, special buildings, roofs, walls and interior and exterior wall decorations of large-span steel structure houses, etc.
