Nguồn gốc:
Trung Quốc đại lục
Hàng hiệu:
CANGZHOU WILLING
Chứng nhận:
ISO CE
Số mô hình:
Lớp đơn
Băng hình
Băng hình
Băng hình

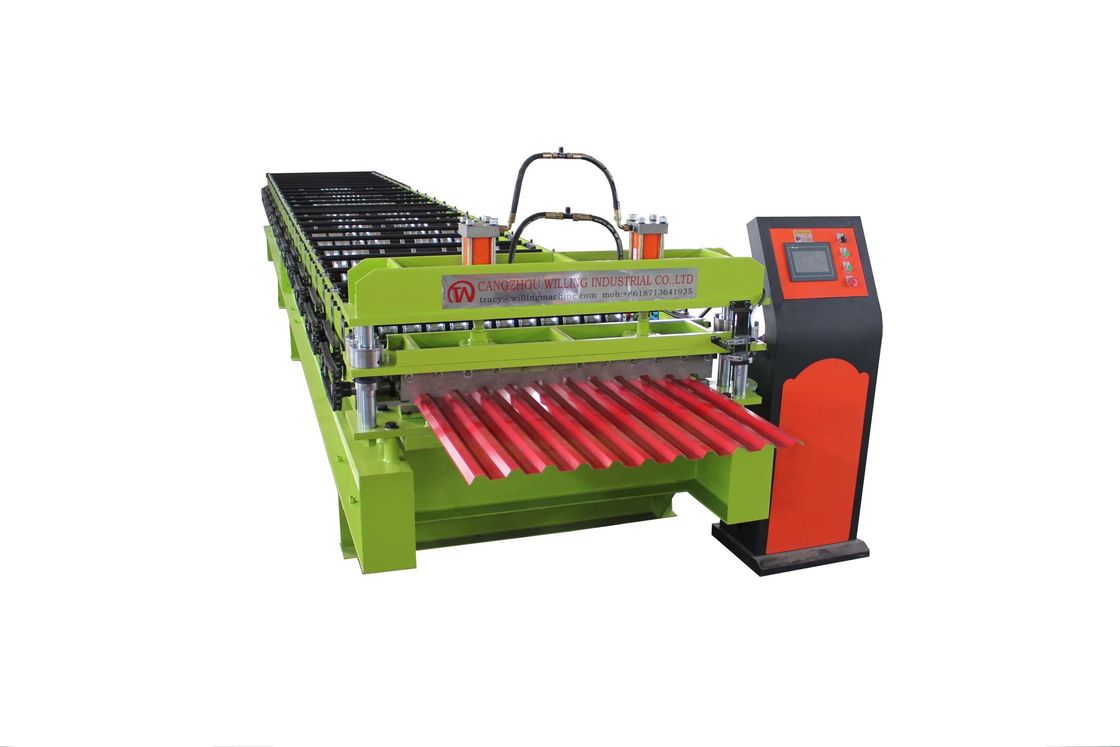

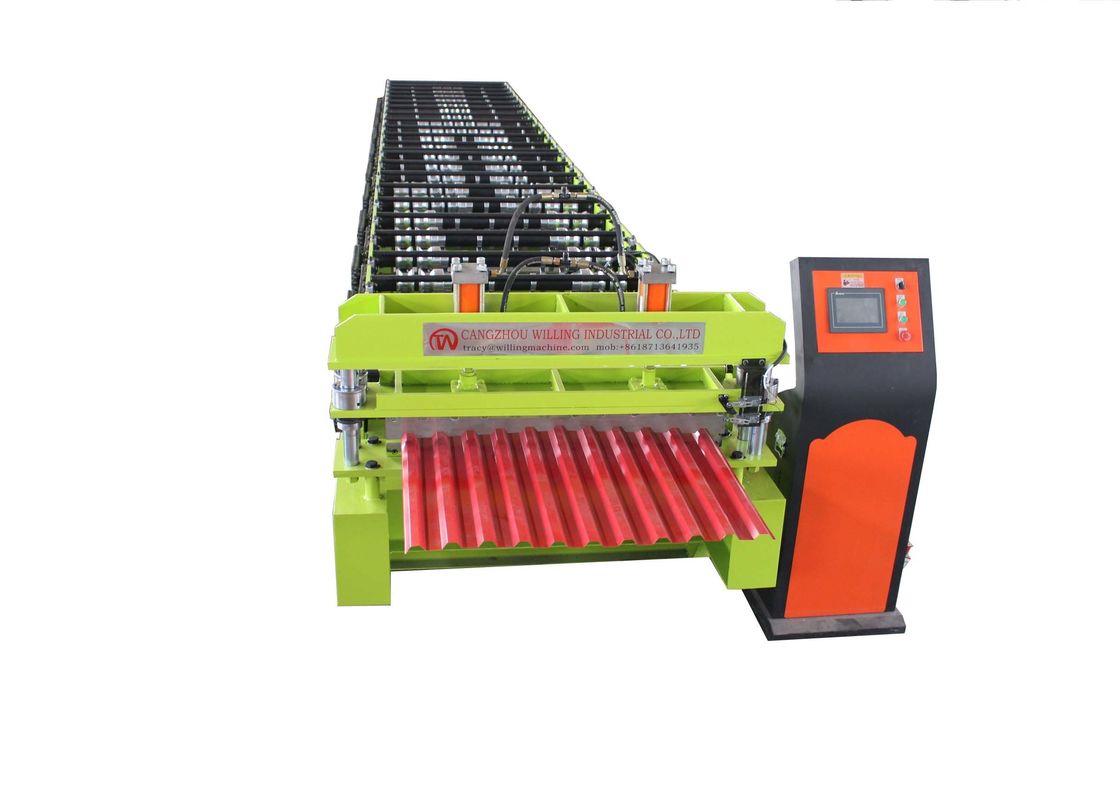

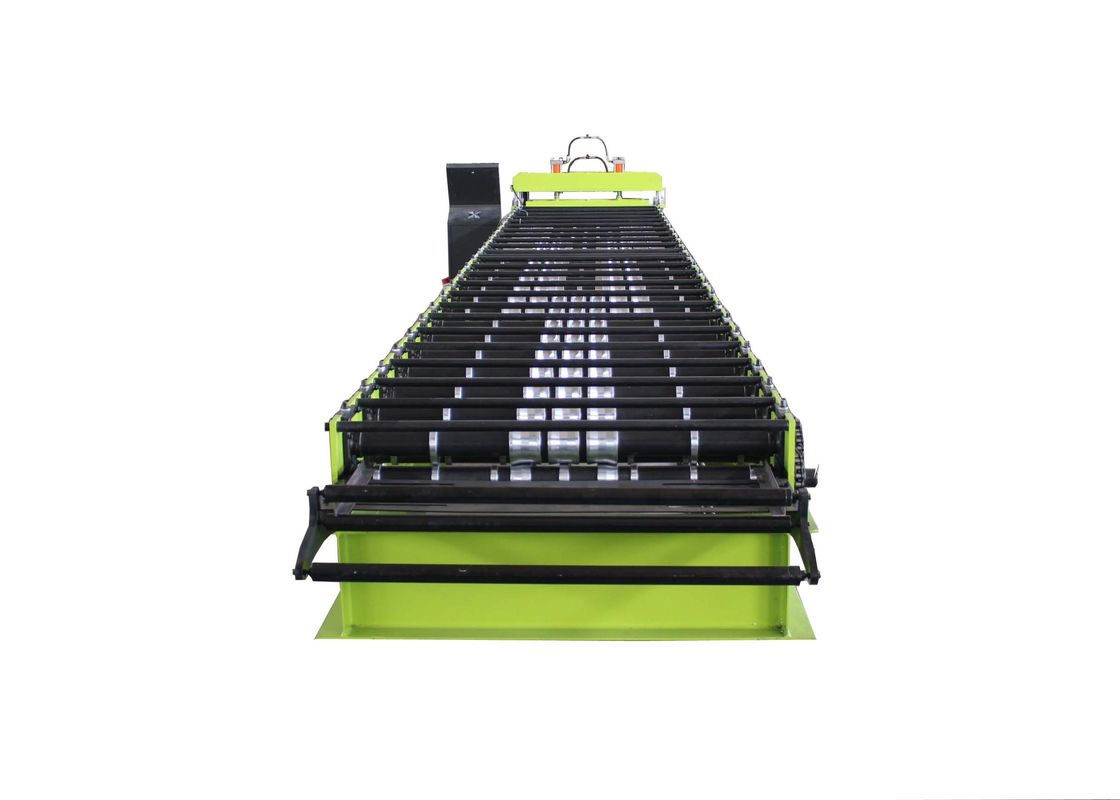

Single Layer PLC Control IBR 1250mm Roll Forming Machine
Specification
| No. | Item | Description |
| 1 | Coil | PL,GL,PPGI,PPGL |
| 2 | Raw Material Thickness | 0.3 mm - 0.8 mm |
| 3 | Working Speed | 15-20 m/min |
| 4 | Roller Station | 15 Stations |
| 5 |
Dimension (L*W*H) |
4500 mm*800 mm*1200 mm |
| 6 | Machine Weight | 4000 KG |
| 7 |
Electrical Control System |
PLC |
| 8 |
Drive Motor Power |
5 KW |
| 9 |
Hydraulic Station Power |
5 KW |
| 10 |
Power Supply |
380V, 60HZ, 3 PHASES(can be customized) |
| 11 |
Cutting Accuracy |
± 1 mm |
| 12 |
Driving Mode |
Gear Wheel |
| 13 |
Material of Shaft |
60 mm 45#steel forged |
| 14 | Material of Roller |
45# Steel Finish Machining, Plated Hard |
Application
The products produced by our machine are widely used industry . For example, factories, warehouses, gymnasiums, exhibition halls, theaters, laboratories, prefabricated houses, etc. due to the color steel plate has the advantages of durability, long life, corrosion resistance, etc.so it also widely used in the chemical construction industry.
Advantage
Our roll forming machine consists of the following parts: the main body of the color steel tile press, the PLC computer control system, the hydraulic pump station system, and the automatic post-cutting system.
The entire unit automation control system adopts a highly integrated network to make the automation system perform better.
