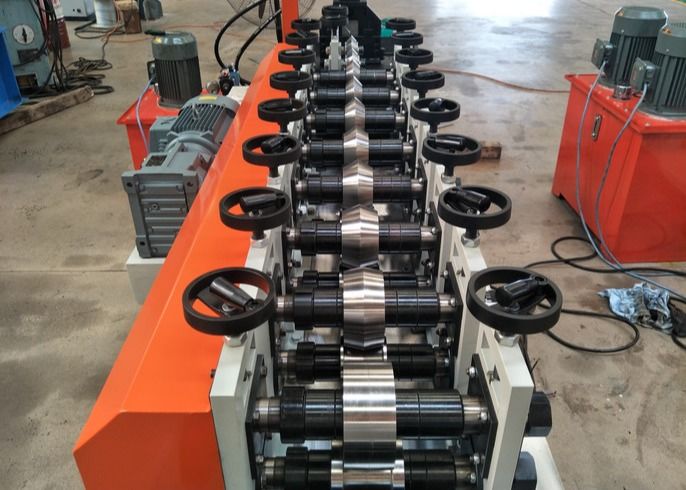

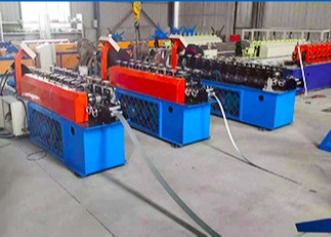

PLC Control Angle Keel Machine Stud And Track Roll Forming Machine
Specification
| No. | Item | Description |
| 1 | Coil | Galvalume, Galvanized, PPGI, Aluminum |
| 2 | Raw Material Thickness | 0.3-0.8mm |
| 3 | Working Speed | 15-20 m/min |
| 4 | Roller Station | 15 Raws |
| 5 |
Dimension (L*W*H) |
6500 mm*1300 mm*1100 mm |
| 6 | Machine Weight | 3500 KG |
| 7 |
Electrical Control System |
PLC |
| 8 |
Drive Motor Power |
4 KW |
| 9 |
Hydraulic Station Power |
4 KW |
| 10 |
Power Supply |
240V, 60HZ, 3 PHASES(can be customized) |
| 11 |
Cutting Accuracy |
±2 mm |
| 12 |
Driving Mode |
Single Chain 1 inch |
| 13 |
Material of Shaft |
70 mm 45#steel forged |
| 14 | Material of Roller |
45# Steel Finish Machining, Plated Hard |
Application
The light steel keel is a construction metal frame made of high-quality continuous hot-dip galvanized sheet and strip as raw materials and rolled by a cold bending process. With the development of modernization in my country, light steel keels are widely used in hotels, terminals, train stations, stations, playgrounds, shopping malls, factories, office buildings, old building renovation, interior decoration, ceilings and other places.
Advantage
The light steel keel ceiling has the advantages of light weight, high strength, adaptability to waterproof, shockproof, dustproof, sound insulation, sound absorption, and constant temperature. It also has the advantages of short construction period and simple construction.
