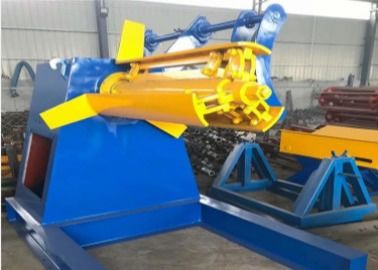

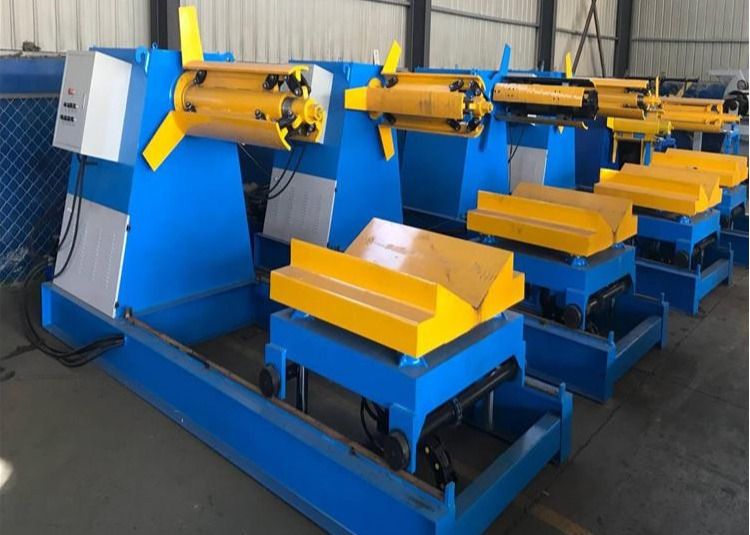

5/ 7/8/10/15Tons Heavy Hydraulic Decoiler
Hydraulic decoiler, used to support the steel coil and provide tension to the steel belt. It is an uncoiler composed of a frame, a main shaft, a telescopic drum and a braking device. The roll material of the hydraulic automatic decoiler rolls freely on the movable shaft seat of the left and right boxes to open the roll material. The steel plate advances to the leveling machine on the conveyor frame, which is the first process of the leveling machine.
Specification
| No. | Item | Description |
| 1 | Coil | Galvalume, Galvanized, PPGI, Aluminum |
| 2 | Raw Material Thickness | 0.3-1.5 mm |
| 3 | Working Speed | 12m /min |
| 4 | Shaft Diameters | 85mm |
| 5 |
Dimension (L*W*H) |
330*150*170 |
| 6 | Machine Weight | 2500 KG |
| 7 |
Electrical Control System |
automatic |
| 8 |
Drive Motor Power |
3KW |
| 9 |
type |
Decoiler |
| 10 |
Power Supply |
380V, 60HZ, 3 PHASES(can be customized) |
Application
Uncoiling machine is a special equipment for sheet metal leveling. It can be used for leveling line steel plates and uneven plates to form uncoiling, leveling, shearing production lines and other sheet product production lines according to related configurations. Suitable for industries such as machinery, vehicles, metal products, household appliances, steel structures, and decorations..
Advantage

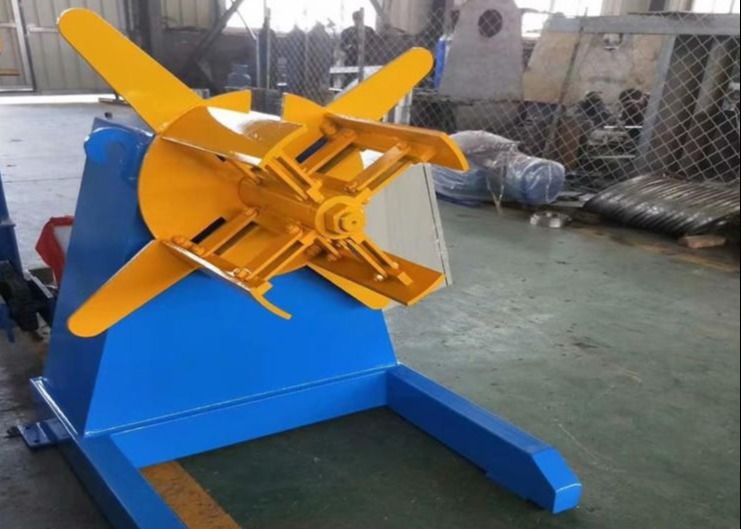

The mandrel of the uncoiler is connected to four sector-shaped plates through the sloped dovetail slots on the four end faces. Each sector-shaped plate is prevented from moving in the axial direction through a radial slide at the end, but can expand and contract in the radial direction. A rotating oil cylinder is connected to the tail end of the spool shaft, and the piston rod of the oil cylinder drives the front-end quadrangular shaft to slide axially through the draw rod of the spool shaft, thereby driving the sector plate to expand and contract radially. The nominal diameter of the reel can be increased by adding four fan-shaped plates. The frame of the decoiler can be moved on the guide rail of the machine base and driven by a hydraulic cylinder to realize position control. In order to strengthen the stability of the reel, a support arm device is designed on the head of the reel. When there is a steel coil on the reel, the support arm is driven by an oil cylinder to support the head of the reel. The support arm is usually retracted without affecting The steel coil is rolled up
