Nguồn gốc:
Trung Quốc đại lục
Hàng hiệu:
CANGZHOU WILLING
Chứng nhận:
ISO CE
Số mô hình:
Máy ép thủy lực uốn
Băng hình
Băng hình
Băng hình

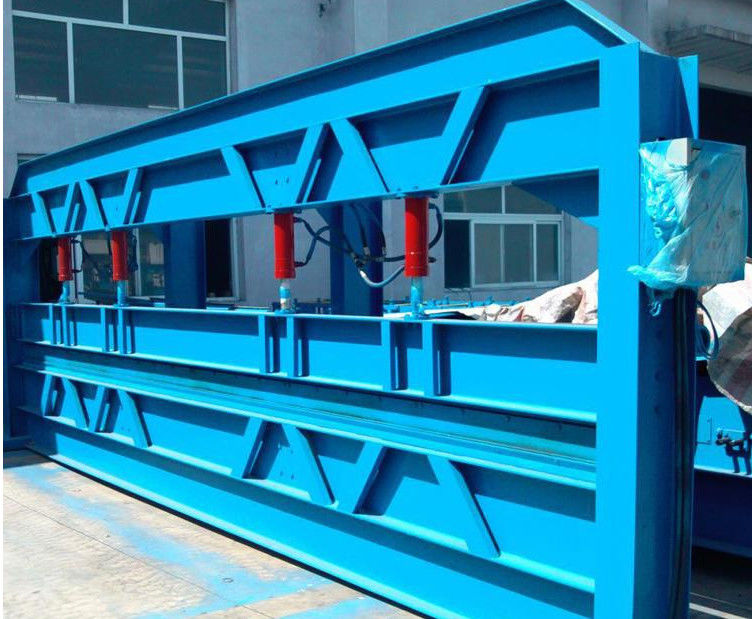

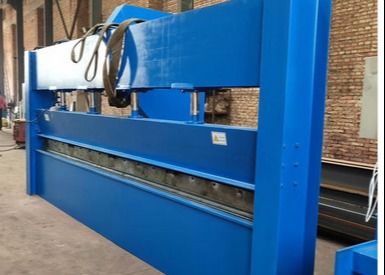

4m Hydraulic Press Steel Sheet Bending Roof Roll Forming Machine
The bending machine is a machine that can bend thin sheet. Its structure mainly includes a bracket, a working table and a clamping plate. The working table is placed on the bracket. The working table is composed of a base and a pressing plate. The base is connected with a hinge and a clamping plate. Connected, the base is composed of a seat shell, a coil and a cover plate, the coil is placed in the recess of the seat shell, and the top of the recess is covered with a cover plate. When in use, the wire is energized to the coil, and the gravitational force is generated on the pressing plate after being energized, so as to realize the clamping of the thin plate between the pressing plate and the base. Due to the electromagnetic clamping, the pressing plate can be made into a variety of workpiece requirements, and the workpiece with side walls can be processed, and the operation is also very simple.
Specification
| No. | Item | Description |
| 1 | Coil | Galvalume, Galvanized, PPGI, Aluminum |
| 2 | Raw Material Thickness | 0.3-0.9mm |
| 3 | Working Speed | 36times /min |
| 4 | Shear Angle | 12 |
| 5 |
Dimension (L*W*H) |
6000 mm*1200 mm*2000 mm |
| 6 | Machine Weight | 700 KG |
| 7 |
Electrical Control System |
Manual |
| 8 |
Drive Motor Power |
3KW |
| 9 |
Tile type |
bending |
| 10 |
Power Supply |
380V, 60HZ, 3 PHASES(can be customized) |
| 11 |
Cutting Accuracy |
±2 mm |
| 12 |
Driving Mode |
Single Chain 1 inch |
| 13 |
Material of Shaft |
70 mm 45#steel forged |
| 14 | Material of Roller |
45# Steel Finish Machining, Plated Hard |
Application
The shearing machine is mainly used for cutting sheet metal and is an important sheet metal processing machine tool. It is not only used in the machinery manufacturing industry, but also an indispensable equipment for sheet metal matching, with a particularly wide range of applications.
Advantage
Our company is a manufacturer of cold-formed forming equipment and automatic complete production lines. For many years, it has been engaged in the production of roof panels and wall profiled panels for steel structures. The products have been manufactured from ordinary roof panels and wall panel forming machines to now. Several series of profiled board production lines can fully meet the needs of steel structure construction. The products include hidden roof panel forming machine, sandwich composite panel production line series, roof panel, wall panel forming machine series, and double-layer color steel tile forming machine Series, glazed tile forming machine series, angle-chi pressure tile machine series, C/Z steel equipment series, floor deck forming machine series, advertising pull trigger series, rolling door forming machine series, arch equipment series, carriage board machine series, water stop Steel plate forming machine series, high-speed guardrail forming machine series, bending machine, shearing machine series, other auxiliary equipment series and other products, the product quality is certified, welcome to your inquires.
