Nguồn gốc:
Trung Quốc đại lục
Hàng hiệu:
CANGZHOU WILLING
Chứng nhận:
ISO CE
Số mô hình:
Góc điều chỉnh cong
Băng hình
Băng hình
Băng hình

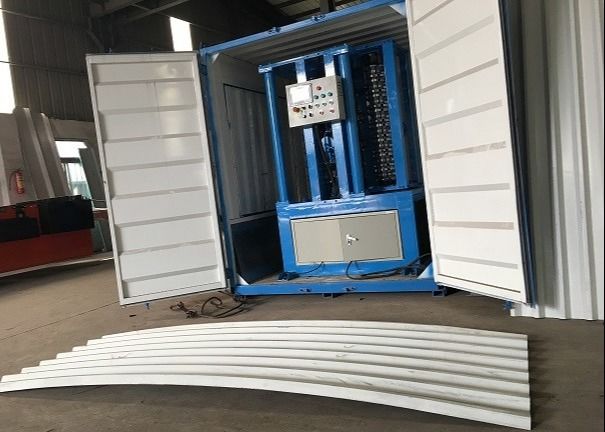

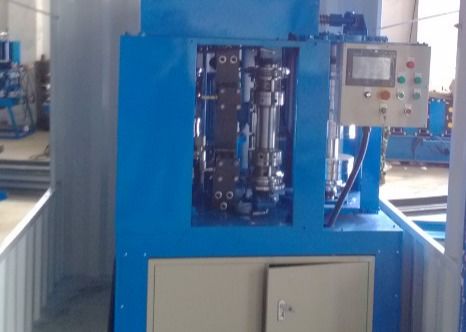

Curving Adjustable Angle Roof Roll Forming Machine
The curved arch roof color steel roof forming machine uses a rolling method to change the shape of the roof slab. The machine is flexible in control, and the angle can be adjusted through the PLC control system, the angle range is 15-90 degrees, so as to better meet the needs of customers in different application scenarios
Specification
| No. | Item | Description |
| 1 | Coil | PPGI PPGL GI GL |
| 2 | Raw Material Thickness | 0.6-0.9mm |
| 3 | Working Speed | 90Deg/2 min |
| 4 | Roller Station | 3 Raws |
| 5 |
Dimension (L*W*H) |
2800 mm*1200 mm*1800mm |
| 6 | Machine Weight | 2000 KG |
| 7 |
Electrical Control System |
Automatic |
| 8 |
Drive Motor Power |
4KW+4KW |
| 9 |
Tile type |
bending |
| 10 |
Power Supply |
380V, 60HZ, 3 PHASES(can be customized) |
| 11 |
Cutting Accuracy |
±2 mm |
| 12 |
Driving Mode |
Single Chain 1 inch |
| 13 |
Material of Shaft |
70 mm 45#steel forged |
| 14 | Material of Roller |
45# Steel Finish Machining, Plated Hard |
Application
Curved roofs are usually used on roofs or eaves. To a large extent, it can effectively guide rainwater from the roof to the ground. This roof system prevents water accumulation and is widely used in workshop roofs, garage roofs, apartment roofs, shopping mall roofs, laboratory roofs, etc.
Advantage
The curved color steel roof produced by this machine is not easy to be damaged and can be folded into a thinner steel sheet. It has the advantages of light weight, high strength, and heat insulation. Color steel roof is widely used in large-span activity workshops, warehouses, office buildings, villas, air-purified houses, cold storages, shops, etc. Because of its low cost and easy installation, it can save customers a lot of cost.
